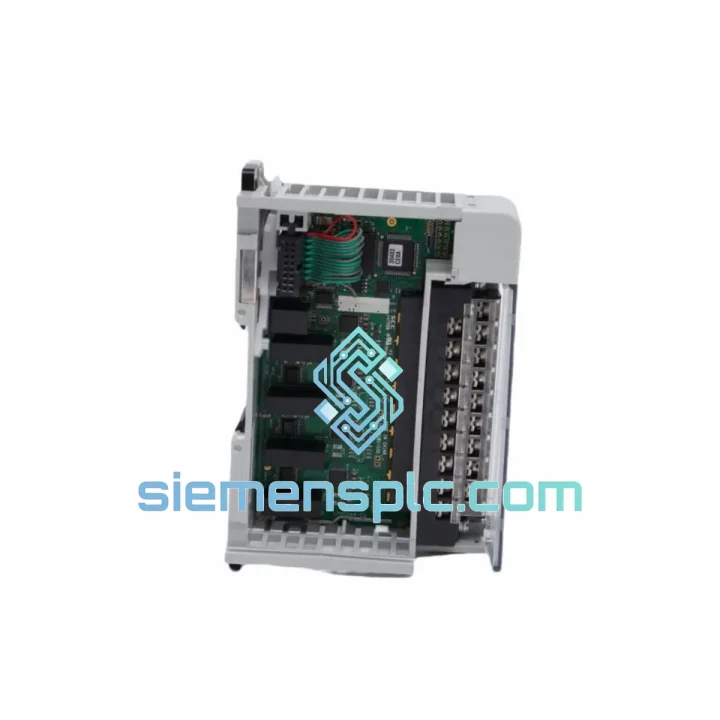

Allen-Bradley 1761-L16BWB PLC Controller

Allen-Bradley 1761-L16BWB — Stop the Clock on Your Downtime

Every minute a MicroLogix 1000 controller stays offline, your line bleeds money. Conveyors stop. Robots lock mid-stroke. Packaging cells go dark. The 1761-L16BWB is not a peripheral — it is the sequencing brain of your machine. When it fails, nothing moves. We stock it. We ship it today.

The 1761-L16BWB is a 24VDC-powered compact PLC from Allen-Bradley’s MicroLogix 1000 family, carrying 10 DC sink/source inputs and 6 relay outputs across a single housing. Dual communication ports — RS-232 on Channel 0 and DH-485 on Channel 1 — allow simultaneous HMI connection and network integration without additional adapters. Despite its end-of-life status from Rockwell Automation, this unit remains embedded in tens of thousands of active machines worldwide. Finding a verified, tested replacement fast is the only thing that matters when your line is down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the unit — confirm the fault is the controller, not the power rail. Measure 24VDC at the supply terminals (I/0 and I/1). If voltage is within 20.4–26.4 VDC and the FAULT LED is solid red with no I/O response, the processor is the culprit. If voltage is absent or fluctuating below 20V, replace the 24VDC supply first — a marginal supply will kill a new controller within weeks.

Common fault indicators on the 1761-L16BWB:

• Solid red FAULT LED, no comms: Processor fault — typically caused by corrupted program memory from a power surge or watchdog timeout. Attempt a memory clear (hold the ESC key sequence during power-up per the user manual). If the fault persists after clear, the processor is non-recoverable.
• FAULT LED flashing, outputs not energizing: I/O forcing may be active, or a minor recoverable fault is latched. Connect RSLogix Micro, go online, and clear faults from the Controller Fault Handler. Check S:1/13 (major fault bit) and S:6 (fault code word) for the specific fault code.
• No comms on Channel 0 (RS-232): Verify cable pinout — the 1761-L16BWB uses a DTE configuration. The 1761-CBL-PM02 cable is the correct programming cable. Third-party USB-to-serial adapters with FTDI chipsets are generally reliable; Prolific PL2303 adapters frequently cause driver issues on Windows 10/11.
• DH-485 network dropouts: Check termination resistors at both ends of the DH-485 trunk (150Ω). Verify node addresses are unique across all devices. The 1761-L16BWB’s DH-485 address is set in software (Channel 1 configuration in RSLogix Micro), not via hardware DIP switches.
• Outputs not switching despite correct logic: Relay output contacts on the 1761-L16BWB are rated 10A resistive. Inductive loads (solenoids, motor starters) without snubber circuits will arc the contacts over time. Inspect output terminals O:0/0 through O:0/5 for contact pitting. A failed output relay on one point does not affect other outputs — isolate the failed point and rewire to a spare if available.

Replacement procedure — field checklist:

1. Upload the existing program from the failed unit if it still communicates (even partially). If not, locate the last backup from your engineering workstation or SCADA historian.
2. Document all wiring terminations with photos before disconnecting. The 1761-L16BWB uses a removable terminal block — label each wire before removal.
3. Power down the panel. Disconnect the terminal block. Remove the failed unit from the DIN rail.
4. Mount the replacement unit. Reconnect the terminal block. Restore 24VDC power.
5. Connect via RSLogix Micro. Download the backed-up program. Verify the Channel 1 DH-485 node address matches the original configuration.
6. Go online and perform a controlled I/O test before returning the machine to automatic mode. Force each output individually and verify field device response.
7. Clear any latched faults and set the controller to RUN mode.

Note on firmware: The 1761-L16BWB does not have user-upgradeable firmware. The firmware revision is fixed at the factory. RSLogix Micro will detect the firmware version automatically during online connection — no manual matching is required.

Reliability in Harsh Conditions

The MicroLogix 1000 platform was engineered for panel-mount deployment in environments that are far from laboratory conditions. The 1761-L16BWB’s PCB assembly uses conformal coating on production variants, providing a moisture barrier against condensation in non-climate-controlled enclosures. The relay output contacts are rated for 100,000 mechanical operations and 30,000 electrical operations at rated load — a design margin that reflects the reality of industrial duty cycles.

Vibration resistance is validated to IEC 68-2-6: 10–500 Hz, 2G peak, which covers the vibration profiles of most conveyor frames, compressor skids, and pump stations where this controller is commonly installed. The operating temperature ceiling of 60°C allows deployment in enclosures with moderate internal heat rise without forced cooling, provided ambient temperature stays within specification.

EMI immunity is addressed through the 24VDC isolated input circuit design. Each input channel uses optical isolation to separate the field wiring from the processor logic bus, blocking transients from inductive field devices from propagating into the CPU. The relay output stage provides inherent galvanic isolation between the load circuit and the logic circuit — a critical protection layer in panels where AC and DC circuits share the same enclosure.

Units supplied by siemensplc.com are stored in climate-controlled warehousing in Xiamen, China, in ESD-safe anti-static bags with desiccant packs inside sealed moisture barrier packaging. This preserves the PCB surface finish and relay contact integrity during storage and transit, regardless of shipping duration or destination climate.

Global Express Logistics

When your line is down, standard freight timelines are not acceptable. Our logistics process is built around one objective: get the part to your panel as fast as physically possible.

• Same-day dispatch: Orders confirmed and paid before 15:00 CST (Xiamen time) ship the same business day via DHL Express or FedEx International Priority.
• Transit times: Southeast Asia 1–2 days. Middle East 2–3 days. Europe 3–4 days. North America 3–5 days. These are door-to-door estimates under normal customs clearance conditions.
• Shipment documentation: Commercial invoice, packing list, and certificate of conformance are prepared and attached to every shipment. HS code 8537.10 is pre-declared for smooth customs clearance in most jurisdictions.
• Real-time tracking: DHL and FedEx tracking numbers are issued within 2 hours of dispatch and sent directly to your email.
• Customs support: For destinations with complex import requirements (India, Brazil, Saudi Arabia), our logistics team prepares additional documentation on request — including MSDS, origin certificates, and end-user declarations.
• Packaging integrity: Double-boxed with foam inserts. The inner ESD bag is sealed. The outer carton is reinforced for air freight handling. Fragile labels applied. No exceptions.
