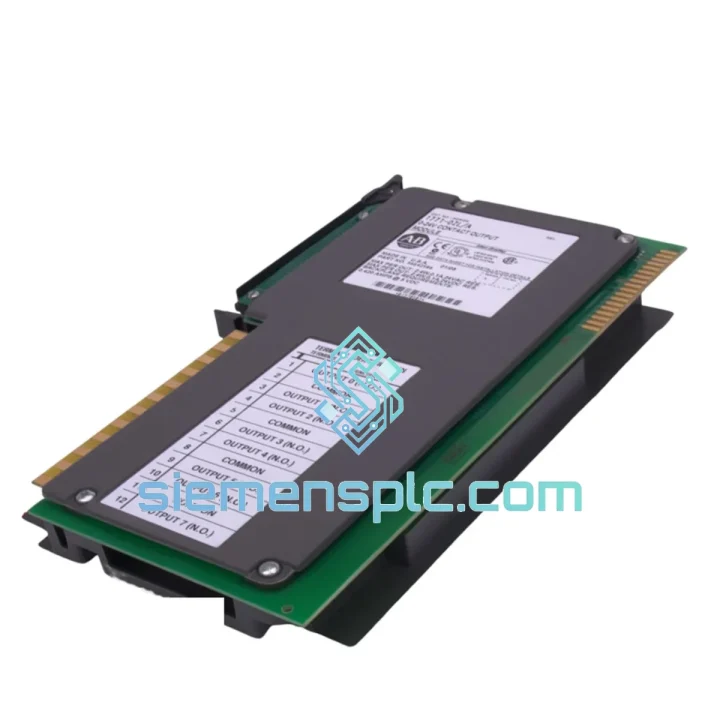

Allen-Bradley 1771-OZL PLC Output Module

Allen-Bradley 1771-OZL: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your line is down. Every minute the PLC-5 rack sits dark, you’re bleeding production cost. The 1771-OZL is the exact module you need — 16-point, 24VDC sourcing solid-state output, single-slot 1771 form factor — and we have it on the shelf right now. No lead time negotiation, no factory backorder queue. We pull it, test it, box it, and hand it to DHL before your shift supervisor finishes the incident report.

This is not a refurbished-and-hope situation. Every unit we ship has been bench-tested in a live 1771 chassis, all 16 output points exercised under rated load, series letter and revision code documented. You get the module, you get the test record, and you get back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the module, confirm the fault is actually the 1771-OZL and not upstream:

• All 16 outputs dead simultaneously — Check the 1771 chassis backplane fuse and the 24VDC field power supply first. A blown field supply looks identical to a dead output module from the HMI alarm screen. Measure field power at the wiring arm terminals before condemning the module.
• Intermittent output faults on specific points — Inductive loads (solenoids, motor starters) without suppression diodes will generate voltage spikes that degrade the MOSFET output stage over time. Check for missing flyback diodes on field devices before installing the replacement — otherwise you’ll burn the new module within weeks.
• RSLogix 5 I/O fault bit set, module LED solid red — This typically indicates a backplane communication fault, not an output failure. Reseat the module firmly; the 40-pin connector is sensitive to vibration-induced micro-fretting in high-cycle environments. If the fault clears on reseat, inspect the connector pins for oxidation.
• Partial output group failure (points 0–7 dead, 8–15 OK) — The 1771-OZL groups outputs in two banks of 8. A single bank failure usually points to a field wiring short on that group’s common return. Isolate field wiring before replacement.

Replacement procedure — field-tested sequence:

1. Place the PLC-5 processor in PROGRAM mode. Do not power down the chassis unless your safety plan requires it — the 1771 platform supports module swap with processor in Program mode.
2. Disconnect the 1771-WN wiring arm. The arm stays wired; the module slides out independently. This is the single biggest time-saver on a 1771 swap — no field rewiring required.
3. Verify the replacement module’s series letter matches or supersedes the original. Series B and later are backward-compatible. Series A modules in late-revision chassis may exhibit backplane timing issues — confirm with the revision label before installation.
4. Seat the replacement module firmly until the locking tab engages. A partially seated module will generate intermittent I/O faults that are extremely difficult to diagnose remotely.
5. Reconnect the wiring arm. Return processor to RUN mode. The PLC-5 performs automatic I/O configuration on the first scan — no manual addressing required for a like-for-like replacement.
6. Force each output point individually from RSLogix 5 to verify field device response before releasing the line.

Note on sourcing topology: The 1771-OZL is a PNP sourcing output. If your field devices are NPN-input type (common in Asian-market instrumentation), wiring polarity must be confirmed before installation. Substituting a 1771-OB (sinking) for a 1771-OZL without rewiring will result in no output switching — a common site error that wastes hours.

Reliability in Harsh Conditions

The 1771-OZL was engineered for the environments where PLCs actually live — not climate-controlled server rooms, but the floor of a petrochemical unit at 55°C ambient, a paper mill with airborne fiber contamination, a water treatment plant where humidity never drops below 80%. The design choices reflect that reality.

Optical isolation between the field circuit and the backplane provides over 1,500V common-mode rejection. In VFD-dense panels where ground loops and switching transients are a daily occurrence, this isolation layer is what keeps the backplane logic intact when the field side takes a hit. Plants that have replaced relay output modules with the 1771-OZL in high-noise environments consistently report a reduction in nuisance I/O faults.

The solid-state MOSFET output stage eliminates the contact wear that makes relay modules a maintenance liability in high-cycle applications. Automotive body-in-white lines running over a million output operations per year have run 1771-OZL modules for 10+ years without output stage failure — the failure modes in those environments are almost always connector-related, not output-stage-related.

Vibration compliance to IEC 68-2-6 and shock compliance to IEC 68-2-27 cover the mechanical stress profiles found in compressor stations, mining conveyors, and offshore platform control rooms. The module’s single-slot form factor and keyed 40-pin connector resist the micro-movement that causes intermittent faults in high-vibration installations — provided the chassis mounting hardware is torqued correctly and the wiring arm is fully seated.

Units shipped from our Xiamen warehouse are stored in ESD-safe packaging with desiccant. Connector pins are inspected under magnification for oxidation and mechanical deformation before dispatch. We do not ship modules with compromised connectors — a module that fails on installation because of a bent pin is worse than no module at all.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the highest-throughput export ports in Asia, with direct DHL and FedEx international gateway access. This is not a theoretical shipping capability; it is the daily operational reality for our customers in Southeast Asia, the Middle East, Europe, and the Americas who are managing plant-down situations with no tolerance for logistics delays.

Standard express timeline from order confirmation:

• Same-day dispatch — Orders confirmed before 15:00 CST ship the same business day via DHL Express or FedEx International Priority.
• Southeast Asia (SG, MY, TH, ID, VN) — 1–2 business days door-to-door.
• Middle East (AE, SA, QA, KW) — 2–3 business days.
• Europe (DE, NL, FR, GB, PL) — 3–4 business days.
• North America (US, CA, MX) — 3–5 business days.
• Australia / New Zealand — 3–4 business days.

Every shipment includes full tracking from pickup to delivery, commercial invoice and packing list for customs clearance, and ESD-safe inner packaging inside a rigid outer carton rated for international air freight handling. For customers in countries with complex import procedures, we can provide HS code documentation and certificate of origin to accelerate customs release.

For genuine plant-down emergencies, contact us directly on WhatsApp before placing the order. We can confirm stock, generate a proforma invoice, and initiate packing within the hour. The goal is to get the tracking number in your hands before your maintenance team finishes the fault isolation report.
