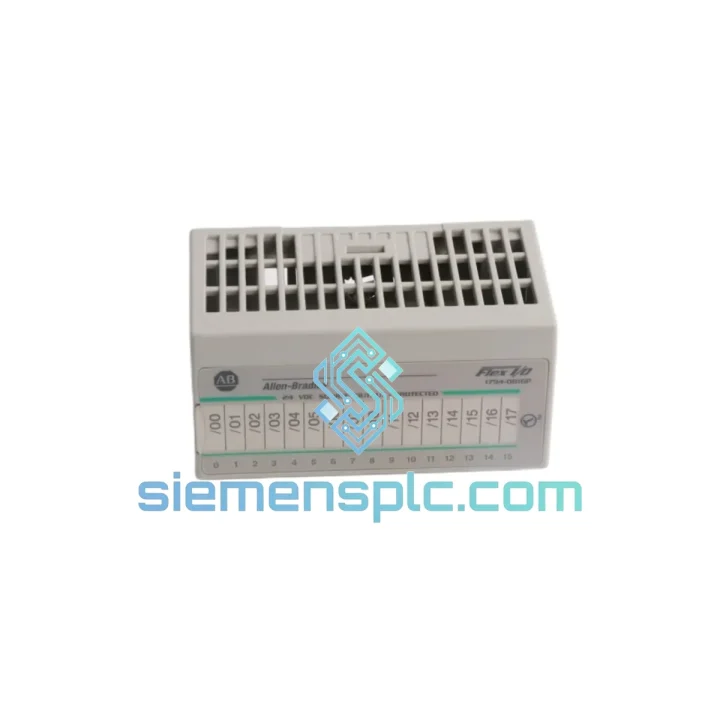

Allen-Bradley 1794-OB16P Digital Output Module – FLEX I/O

Allen-Bradley 1794-OB16P: 16-Point Sourcing Digital Output Module in Distributed FLEX I/O Architecture

The 1794-OB16P is a 16-channel, 24 VDC sourcing (PNP) digital output module within Rockwell Automation’s FLEX I/O platform. Its role in a control loop is unambiguous: it serves as the final command executor between the controller’s logic scan and the physical field devices — solenoid valves, motor starters, indicator lamps, and relay coils. Each of its 16 output channels is individually protected by an electronic current-limiting circuit, which eliminates the need for external per-channel fusing and provides deterministic fault isolation without cascading failures across the output bank.

In distributed I/O architectures, the 1794-OB16P mounts on a 1794 terminal base and connects to a FLEX I/O adapter module — such as the 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), or 1794-APB (PROFIBUS DP) — which handles all network communication back to the host controller. This decoupled architecture allows the output module itself to remain network-agnostic: the same 1794-OB16P hardware operates identically whether the backplane adapter speaks EtherNet/IP or PROFIBUS, making it a stable, long-lifecycle investment across network migration projects.

The module’s 23 mm width delivers 16 protected output points in a footprint that competes directly with relay output modules requiring significantly more panel real estate. At 0.5 A per channel with a 4 A aggregate module limit, the 1794-OB16P is sized for the majority of discrete actuator loads encountered in manufacturing: standard 24 VDC solenoid valves (typically 0.1–0.3 A), pilot relays, and indicator circuits. The 10–31.2 VDC field supply range provides meaningful tolerance for voltage sag conditions common in large panel installations with long cable runs.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1794-OB16P’s output stage is built around solid-state PNP transistor switches rather than mechanical relay contacts. This design choice has direct consequences for control loop performance and maintenance intervals. Transistor switching times are in the sub-millisecond range — typically < 0.5 ms ON and < 1.0 ms OFF — which is relevant in applications where output update latency contributes to overall loop cycle time, such as high-speed conveyor diverters or pneumatic valve sequencing with tight timing constraints.

Each of the 16 output channels incorporates an independent electronic protection circuit that monitors current flow in real time. When a channel detects an overload or short-circuit condition, it limits current and asserts a fault bit in the module’s status register — without affecting the state of adjacent channels. This per-point fault isolation is architecturally superior to fused relay output modules, where a blown fuse requires physical intervention and provides no automatic diagnostic feedback to the controller. The 1794-OB16P’s fault data is accessible via the adapter module’s I/O image table, enabling the host controller to execute fault-response logic — alarm annunciation, safe-state sequencing, or maintenance request generation — within the same program scan that detects the fault.

The module’s EMC design follows IEC 61000 series requirements applicable to industrial environments. The output transistor drivers are referenced to the field supply common, with the backplane logic supply isolated from the field supply through the terminal base. This two-domain isolation prevents field-side transients — inductive kickback from solenoid coils, ground potential differences between panel and field — from coupling into the backplane bus and corrupting controller memory or communication frames. Inductive load suppression is the responsibility of the field wiring designer; flyback diodes or varistors at the load are recommended per Rockwell installation guidelines.

The 1794-OB16P interfaces to the FLEX I/O backplane through the terminal base connector, which carries both the 5 VDC logic supply and the module’s I/O data. The backplane data exchange is managed by the adapter module, which maps the 1794-OB16P’s 16 output bits into the controller’s output image table. The adapter handles all network protocol overhead — CIP connection management for EtherNet/IP, or equivalent for other networks — so the output module’s update rate is determined by the adapter’s RPI (Requested Packet Interval) setting, not by any processing limitation within the 1794-OB16P itself. Typical RPI values in production systems range from 5 ms to 20 ms, well within the module’s transistor switching capability.

System Integration Benefits

The 1794-OB16P delivers measurable advantages across the full system lifecycle, from commissioning through long-term maintenance:

• Per-point electronic fault isolation: A short-circuit on channel 7 does not affect channels 1–6 or 8–16. The fault is contained, logged, and reported to the controller within the same I/O scan cycle — no manual fuse inspection required.
• Deterministic output update timing: Solid-state transistor switching eliminates contact bounce and mechanical wear as sources of output timing variability. Output state changes are repeatable to within the adapter’s RPI window.
• Diagnostic transparency to the controller: Module-level and point-level fault status bits are mapped into the controller’s input image table, enabling PLC ladder or structured text logic to respond to output faults programmatically without operator intervention.
• Network-agnostic hardware: The same 1794-OB16P module operates with EtherNet/IP, DeviceNet, ControlNet, or PROFIBUS DP adapters. Network migration projects do not require output module replacement — only the adapter changes.
• Reduced panel wiring complexity: Elimination of per-channel external fusing reduces terminal block count, wiring labor, and potential failure points in the field wiring harness.
• High channel density in minimal footprint: 16 protected output points in a 23 mm wide module. Equivalent relay output capacity would require significantly more DIN rail space and panel volume.
• Studio 5000 Add-On Profile (AOP) support: Pre-built AOPs in Rockwell Studio 5000 Logix Designer provide structured tag access to all module parameters and diagnostics, reducing commissioning time and configuration errors.
• Long product lifecycle and spare parts availability: The 1794 FLEX I/O platform has been in continuous production for over two decades. Spare module availability is well-established through both authorized distribution and the secondary market, supporting long-term plant maintenance strategies.

Quality Assurance & Global Logistics

Every 1794-OB16P unit supplied through siemensplc.com undergoes a structured pre-shipment verification process. Visual inspection confirms Rockwell Automation factory labeling, date codes, and security markings consistent with genuine product. Physical examination covers connector pin condition, housing integrity, and PCB surface condition for evidence of rework, prior installation wear, or counterfeit indicators. Units that do not pass inspection are quarantined and not shipped.

Shipments originate from Xiamen, China — a major logistics hub with direct access to international air freight and sea freight services. Standard export documentation is prepared for every shipment: commercial invoice, packing list, and certificate of origin. For customers requiring additional documentation — material certificates, test reports, or certificates of conformance — these are prepared upon request prior to shipment. ESD-safe packaging is used for all electronic modules to prevent electrostatic discharge damage during transit.

Delivery timelines to major destinations: North America (3–5 business days air freight), Europe (4–6 business days air freight), Southeast Asia (2–4 business days). Sea freight options are available for volume orders where lead time permits. All shipments include tracking information provided at time of dispatch. A 12-month warranty covers manufacturing defects from the date of shipment. Warranty claims are processed with replacement or credit at our discretion following return merchandise authorization (RMA).
