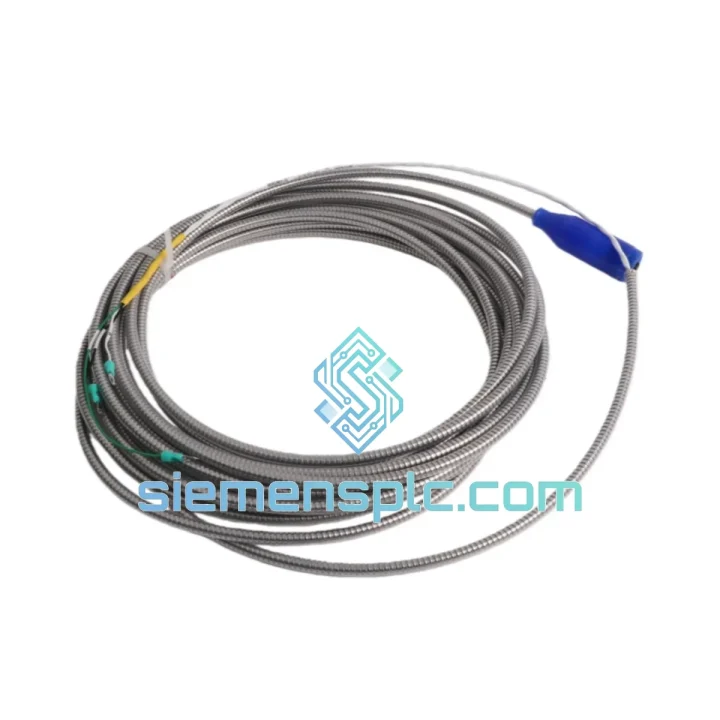

Bently Nevada 106765-01 Sensor Interconnect Cable

Bently Nevada 106765-01 Velomitor XA Interconnect Cable — Stop the Clock on Your Downtime

Every minute a turbine or compressor sits idle costs real money. When your Velomitor XA sensor goes dark and the 3500 rack throws a Not OK status, the bottleneck is almost never the sensor itself — it’s the interconnect cable. Connector corrosion, shield breaks from repeated flex cycles, and MIL-spec pin damage are the top three field failure modes on the Bently Nevada 106765-01. We stock this cable in Xiamen and ship globally within 24 hours of order confirmation. No waiting on factory lead times. No broker markups. Just the part you need, moving toward your site today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the cable, confirm the fault is not upstream. On the 3500/42M velocity monitor, a Channel Not OK alarm with no corresponding vibration spike almost always points to the signal path, not the sensor element. Here is the field sequence that saves time:

Step 1 — Isolate at the junction box. Disconnect the 106765-01 at the field junction box and measure DC bias voltage at the monitor input. Velomitor XA bias should read between −8 VDC and −12 VDC. A reading near 0 V or rail voltage (−24 V) confirms an open or shorted cable shield — replace the 106765-01 immediately.

Step 2 — Check the MIL-spec connector pins. Moisture ingress at the sensor-end connector is the single most common failure point in humid or washdown environments. Inspect for green oxidation on the center pin and shield braid. A corroded pin raises contact resistance enough to shift the bias point outside the monitor’s acceptance window, triggering a false Not OK without any actual vibration event.

Step 3 — Verify shield continuity. Use a low-resistance ohmmeter (4-wire Kelvin method if available). Shield resistance end-to-end on a healthy 106765-01 should be under 2 Ω. Anything above 5 Ω indicates a broken shield braid — a common result of repeated cable flexing near the sensor body on high-vibration machinery.

Step 4 — Swap and re-zero. After installing the replacement 106765-01, allow 5 minutes for the Velomitor XA bias to stabilize before accepting the channel. The 3500 rack performs an automatic self-test on power-up; if the channel clears within 30 seconds, the cable was the root cause. If the Not OK persists, escalate to the sensor element or the monitor card itself.

Common fault codes on the 3500/42M associated with cable failure:

• Not OK (NO) — bias voltage out of range; most often a cable open or short
• Danger High / Danger Low with no process change — intermittent shield break causing noise injection
• Transducer Supply Fault — check cable continuity before condemning the monitor card

Configuration note: The 106765-01 is a passive cable — no firmware, no DIP switches, no addressing. Plug-and-play replacement. However, confirm the cable length matches your original installation drawing. Substituting a longer cable increases distributed capacitance and can shift the frequency response of the Velomitor XA system at high-frequency measurement points above 2 kHz.

Reliability in Harsh Conditions

Bently Nevada engineered the 106765-01 for the environments where machinery protection matters most — not climate-controlled control rooms, but the hot, wet, vibrating machinery decks of gas turbines, centrifugal compressors, and boiler feed pumps. The cable’s shielded coaxial construction uses a low-capacitance dielectric that maintains signal integrity across the full Velomitor XA operating temperature range. The MIL-spec connectors are rated for repeated mating cycles without measurable pin wear, which matters in plants where cables are disconnected during every major turnaround.

In high-vibration installations — think compressor skids running at 3,000 RPM with significant structural resonance — the cable jacket and internal braid are designed to resist fatigue cracking at the connector strain-relief point. Field experience across petrochemical and LNG plants shows the 106765-01 outlasting generic shielded cables by a factor of three to five in continuous-flex applications. For installations in areas with aggressive chemical wash-down or salt-laden atmospheres, the OEM connector sealing outperforms aftermarket alternatives that lack the original Bently Nevada connector specification.

Humidity cycling — common in coastal refineries and offshore platforms — is where counterfeit or low-grade cables fail first. The 106765-01’s connector sealing and shield termination method prevent moisture wicking along the braid, which is the primary failure mechanism in tropical and marine environments. When you are specifying a replacement for an API 670 machinery protection loop, the original part is not a premium option — it is the minimum acceptable standard.

Global Express Logistics

Our warehouse is located in Xiamen, China, with direct access to Xiamen Gaoqi International Airport cargo terminals and daily DHL and FedEx pickup schedules. The logistics process from your order to your receiving dock works as follows:

• Order confirmation: Payment confirmed → warehouse pick ticket issued within 2 hours during business hours (GMT+8, Mon–Sat)
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. HS code 8544.42 applies for customs clearance in most jurisdictions.
• Carrier handoff: DHL Express or FedEx International Priority — your choice. Tracking number issued within 4 hours of carrier pickup.
• Transit times (typical): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days | South America 5–7 days
• Customs support: We provide all documentation required for industrial component imports. For destinations requiring an import license or end-user declaration, contact us before ordering so we can prepare the paperwork in parallel.
• Emergency shipments: For plant-down situations, contact us via WhatsApp for same-day dispatch coordination. We have handled emergency AOG-equivalent shipments to refineries in the Middle East and compressor stations in Central Asia with under 48-hour door-to-door delivery.

Every shipment is packed in anti-static, moisture-barrier packaging with foam cushioning rated for the cable’s connector geometry. We do not use generic bubble wrap for MIL-spec connector assemblies — the packaging is engineered to protect the connector pins through the handling chain.
