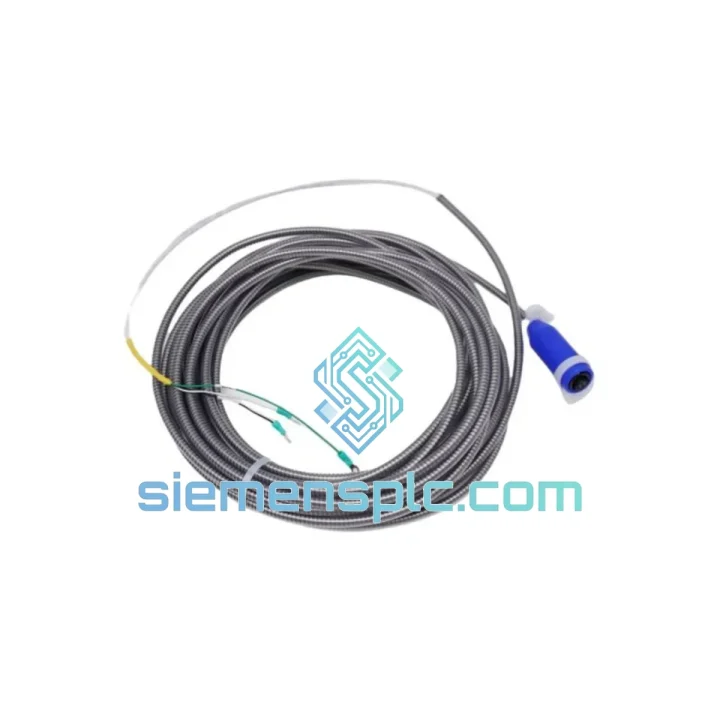

Bently Nevada 106765-16 Interconnect Cable

Bently Nevada 106765-16 Interconnect Cable — Stop the Clock on Your Downtime

Every minute a 3500 Series rack runs blind costs money. When the interconnect cable between your proximity transducer and the monitor module degrades or fails, the entire vibration channel goes dark — no Keyphasor® signal, no bearing data, no protection. That is not a maintenance event; that is a production emergency. The Bently Nevada 106765-16 Interconnect Cable is in stock at our Xiamen warehouse right now. Same-day dispatch is available. While your procurement team is still drafting the PO, we are already pulling the part.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on 3500 racks, the same failure patterns show up repeatedly. Here is what to check before and during a 106765-16 swap:

Common fault indicators that point to this cable:

• Alert/Danger on a single channel only — if one proximity channel trips while adjacent channels on the same module are healthy, suspect the cable before condemning the monitor card. A broken shield or intermittent conductor will produce erratic gap voltage readings that mimic a real vibration event.
• Gap voltage out of range (typically outside –10 VDC ±1 V) — check continuity on the center conductor and shield drain wire first. A resistance reading above 5 Ω on the signal conductor is a red flag.
• Keyphasor® signal loss or erratic once-per-rev pulse — the 106765-16 carries the Keyphasor® signal path on some rack configurations. EMI ingress through a compromised shield will corrupt the phase reference and cause false speed readings across all channels that reference it.
• Intermittent OK relay chatter — thermal cycling causes micro-fractures at the connector crimp. Wiggle the cable at both termination points while monitoring the channel in the 3500 Configuration Software. If the reading shifts, the cable is the culprit.

Replacement procedure — field notes:

• De-energize the rack input power before disconnecting. The 3500 Series is a live-maintenance-capable system, but cable swaps at the backplane connector carry connector damage risk under load.
• Label both ends before removal. The 106765-16 is directional — the rack-side connector and the field-side connector are not interchangeable.
• After seating the new cable, verify gap voltage on the 3500 Configuration Software before re-enabling the channel. Target –10 VDC ±0.5 V for a standard 3300 XL 8 mm probe at 1.0 mm gap.
• No firmware update or module re-addressing is required for a cable-only replacement. The 3500 rack does not perform cable self-addressing — the module retains its configuration throughout.
• If the rack was in Alert or Danger state due to the cable fault, manually reset the latched relay outputs via the front-panel reset button or the 3500 Configuration Software after confirming healthy readings.
• Log the replacement in your CMMS with the cable serial number and test results. Bently Nevada audits often request cable traceability records during PSM/PSSR reviews.

Reliability in Harsh Conditions

The 106765-16 is not a generic instrumentation cable. It is built to survive the environments where 3500 racks are actually deployed — not a climate-controlled lab.

Vibration: The cable jacket and connector strain relief are designed to handle continuous mechanical vibration from adjacent rotating equipment. Field installations on gas turbine skids routinely expose cables to broadband vibration from 10 Hz to 2,000 Hz. The OEM crimp terminations maintain electrical continuity under these conditions where solder joints would fatigue and fracture.

Temperature: Turbine halls and compressor buildings regularly see ambient temperatures from –20 °C in winter startups to +65 °C near hot gas paths. The cable insulation retains its dielectric properties across this range without cracking or softening, which is critical for maintaining the low-capacitance signal path that proximity probe systems require.

Humidity and condensation: Offshore platforms and coastal petrochemical plants expose instrumentation to salt-laden humid air. The foil shield and drain wire construction prevents moisture ingress from degrading the shield-to-ground connection — a failure mode that produces the same symptom as a broken conductor but is far harder to diagnose without a proper cable tester.

Chemical exposure: Hydrocarbon vapors, cleaning solvents, and hydraulic fluid mist are present in most compressor and turbine environments. The outer jacket material resists surface degradation from incidental chemical contact, maintaining the mechanical protection of the cable over its service life.

Every unit we ship has passed visual inspection, continuity testing, and insulation resistance verification. We do not ship cables that have passed only a visual check — electrical testing is non-negotiable before dispatch.
