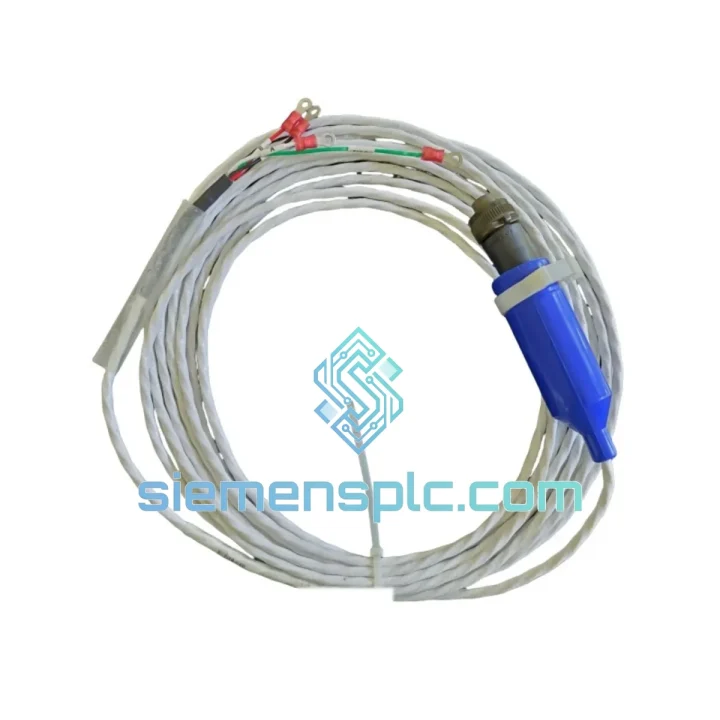

Bently Nevada 130539-08 Interconnect Cable – 3500 Series

Bently Nevada 130539-08 Interconnect Cable — Signal Backbone of the 3500 Series Machinery Protection System

In turbomachinery protection architecture, the signal path between a proximity probe and its monitoring rack is not a passive conduit — it is a precision measurement link operating at millivolt-level amplitudes across distances that can exceed 30 meters in a compressor train layout. The Bently Nevada 130539-08 interconnect cable is the factory-specified assembly that closes this link within the 3500 Series Machinery Protection System. Its role is deterministic: deliver the raw transducer output — typically a –24 VDC-biased, gap-proportional voltage from an eddy-current proximity probe — to the monitor module input with sufficient shielding attenuation and impedance consistency to preserve measurement accuracy within the ±0.5% full-scale tolerance the 3500 rack demands.

The 3500 Series is the dominant continuous vibration monitoring platform in global heavy industry, deployed across gas turbines, steam turbines, centrifugal compressors, and large motor-driven pump trains in compliance with API 670 (Machinery Protection Systems). Within this ecosystem, the interconnect cable is the field-side termination assembly that mates the transducer driver output to the rack’s front-panel BNC or terminal-block input. Incorrect cable impedance, inadequate shield coverage, or connector contact resistance above a few milliohms will introduce DC offset errors and AC noise that corrupt the gap voltage reading — directly degrading the accuracy of radial vibration, axial position, and differential expansion measurements.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 130539-08 is not a generic coaxial assembly. Its design is governed by the signal conditioning chain of the 3500 Series, where the proximity probe system operates on the eddy-current principle: a 1 MHz oscillator in the transducer driver generates a high-frequency carrier that is amplitude-modulated by the conductive target’s proximity. The demodulated output is a DC voltage with a sensitivity of approximately –7.87 mV/mil (–0.3937 V/mm) for standard 8 mm probes. At this sensitivity, a contact resistance of just 10 mΩ at the cable connector introduces a measurable offset; a shield break of 5 cm in a 60 Hz plant environment can inject 50/60 Hz noise at amplitudes that trigger nuisance alarms on the 3500/42M monitor module.

The cable’s braided shield — with coverage ≥95% — provides a Faraday enclosure that attenuates external electric field interference. The shield is grounded at the rack end only (single-point grounding), which eliminates ground loop currents that would otherwise appear as low-frequency noise on the signal conductor. The PTFE dielectric maintains a stable characteristic impedance across the operating temperature range, preventing reflections that would distort the transducer driver’s carrier frequency and corrupt the demodulated gap voltage. The BNC connector’s bayonet locking mechanism ensures a repeatable, low-resistance mating interface — critical in environments subject to vibration, where a loose connector would introduce intermittent contact resistance and generate false alarm events in the 3500 rack’s self-test diagnostics.

From an EMC perspective, the cable’s geometry also limits its role as an unintentional antenna. The coaxial structure provides inherent common-mode rejection: any electromagnetic field that couples equally to the inner conductor and shield produces zero differential voltage at the monitor input. This is the physical basis for the cable’s immunity to the high-intensity RF fields generated by variable-frequency drives (VFDs) and high-voltage switchgear commonly co-located with rotating machinery in industrial substations.

System Integration Benefits

• Drop-in OEM Compatibility: The 130539-08 matches the original Bently Nevada connector pinout, cable geometry, and impedance specification, enabling field replacement without recalibration of the 3500 rack or adjustment of the transducer driver’s gap voltage setpoint.
• Deterministic Signal Latency: Fixed electrical length ensures that the propagation delay from probe tip to rack input is consistent across all channels in a multi-channel installation, preserving the phase relationships required for orbital plot analysis and keyphasor-referenced measurements.
• Alarm Threshold Integrity: By maintaining signal amplitude accuracy within OEM tolerance, the cable ensures that the 3500 rack’s alert and danger setpoints — typically set at 1× and 1.5× baseline vibration amplitude — are not compromised by cable-induced offset or attenuation.
• Diagnostic Transparency: The 3500 rack’s OK relay and channel OK status are sensitive to input impedance. A correctly specified cable maintains the input impedance within the monitor’s self-test window, preventing false NOT OK conditions that would trigger unnecessary shutdowns.
• Reduced Commissioning Time: OEM-specified assemblies eliminate the need for field impedance verification and shield continuity testing during installation, reducing commissioning labor by an estimated 30–45 minutes per channel in a multi-probe installation.
• Long-term Reliability in Harsh Environments: The oil-resistant outer jacket and rated operating temperature of –40 °C to +85 °C cover the full ambient range of outdoor compressor stations and enclosed turbine halls, eliminating jacket degradation as a failure mode over a 10+ year service life.
• API 670 Compliance Support: The cable’s shielding and impedance characteristics are consistent with the signal integrity requirements referenced in API 670, 5th Edition, Section 6 (Transducer Systems), supporting compliance documentation for new installations and audits.
• Multi-Channel Scalability: Uniform electrical characteristics across the 130539-08 production batch allow engineers to deploy identical cable assemblies across all channels of a 3500 rack without per-channel trimming, simplifying spare parts management and reducing MRO inventory complexity.

Quality Assurance & Global Logistics

Every 130539-08 unit supplied through siemensplc.com is sourced from verified OEM channels — authorized Bently Nevada distributors, factory surplus, or documented industrial decommissions with full traceability. Incoming inspection covers visual examination of connector bodies, shield termination integrity, jacket condition, and label authenticity against Bently Nevada part marking standards. Where applicable, functional continuity and insulation resistance testing is performed prior to dispatch.

Packaging follows anti-static and moisture-barrier protocols: each cable assembly is individually bagged, labeled with part number and serial/lot reference, and packed in rigid cartons to prevent connector damage during international transit. Certificate of Conformance (CoC) and available test records are provided upon request for critical-service applications.

Logistics operations are based in Xiamen, China — a major international port city with direct air freight connections to Singapore, Dubai, Frankfurt, Los Angeles, and Tokyo. Standard international shipments are dispatched within 1–3 business days of order confirmation. Express delivery via DHL, FedEx, or UPS is available for emergency replacement scenarios, with transit times of 3–5 business days to most destinations in Europe, North America, and Southeast Asia. Export documentation — commercial invoice, packing list, certificate of origin — is prepared in compliance with destination country customs requirements. DDP (Delivered Duty Paid) terms are available for select regions upon request.
