Bently Nevada 190501-05-00-01 Velocity Transducer – Velomitor CT

Bently Nevada 190501-05-00-01 Velomitor CT Piezoelectric Velocity Transducer — Core Role in Rotating Machinery Protection Loops

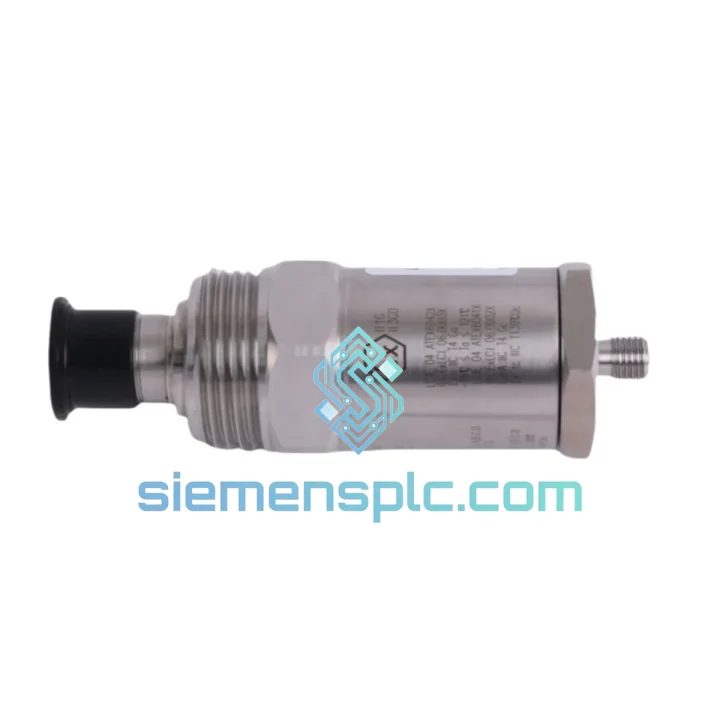

The Bently Nevada 190501-05-00-01 is a compact top-exit (CT) piezoelectric velocity transducer belonging to the Velomitor product family, engineered specifically for continuous seismic vibration monitoring on rotating machinery. Unlike proximity probes that measure relative shaft displacement, this transducer operates on the seismic principle: an internal piezoelectric crystal stack generates a charge proportional to the inertial force exerted by the sensor housing mass during vibration. That charge is converted to a low-impedance voltage output by an integrated MOSFET-based signal conditioning circuit, eliminating the need for an external charge amplifier and making the device directly compatible with the Bently Nevada 3500 Series monitor inputs.

In a closed-loop machinery protection architecture, the 190501-05-00-01 occupies the sensing node of the measurement chain. Its output feeds directly into the 3500/42M or 3500/46M seismic monitor card, which performs RMS and peak velocity calculations in real time. When vibration amplitude crosses the configured alert or danger setpoints, the monitor asserts relay outputs to initiate controlled shutdown sequences — a deterministic response that is only possible when the transducer delivers a clean, calibrated signal across the full operating frequency band.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Piezoelectric Stack Architecture. The sensing element consists of a shear-mode PZT (lead zirconate titanate) crystal stack mechanically preloaded against a seismic mass. Shear-mode geometry is preferred over compression-mode in industrial transducers because it exhibits significantly lower sensitivity to base strain — a critical advantage when the transducer is mounted on a bearing housing that undergoes thermal expansion or mechanical deflection independent of vibration. The preload force is set during factory assembly to maintain crystal contact across the full operating temperature range without introducing nonlinearity at low-amplitude signals.

Integrated MOSFET Signal Conditioning. The internal hybrid circuit converts the high-impedance charge output of the crystal stack to a low-impedance voltage signal using a JFET input stage followed by a MOSFET output driver. This two-stage topology achieves an input impedance exceeding 10 GΩ at the crystal interface while presenting an output impedance below 100 Ω to the cable — a ratio that makes the signal essentially immune to cable capacitance variation up to several hundred picofarads. The result is stable sensitivity regardless of cable run length, which is operationally significant in large turbine halls where cable distances can exceed 30 meters.

EMC Design and Shielding. The 316L stainless steel housing functions as a Faraday cage, providing continuous electromagnetic shielding from the crystal stack to the connector body. The internal circuit ground is tied to the housing at a single point to prevent ground loop currents that would manifest as low-frequency noise in the velocity signal. The top-exit (CT) cable configuration routes the signal cable away from the machine surface, reducing capacitive coupling to the machine frame — a measurable improvement in signal-to-noise ratio compared to side-exit configurations in high-EMI environments such as variable-frequency drive (VFD) motor installations.

Thermal Stability. The sensitivity drift of the PZT stack is compensated by the temperature coefficient of the JFET input stage, which is selected during factory calibration to produce a net sensitivity variation of less than ±1 dB across the full −40 °C to +121 °C operating range. This thermal compensation is passive — no active temperature correction circuit is required — which eliminates a potential failure mode in long-term continuous service.

IP67 Sealing. The housing is sealed with a fluorosilicone O-ring at the connector interface and a hermetic glass-to-metal seal at the crystal chamber. Fluorosilicone retains its elastic properties from −55 °C to +175 °C and resists hydrocarbon fluids, making the seal effective in environments where lubricating oil mist or process gas condensate is present on bearing housing surfaces.

System Integration Benefits

• Direct 3500 Series compatibility without reconfiguration: The 190501-05-00-01 is factory-calibrated to the sensitivity and bias voltage specifications expected by the 3500/42M and 3500/46M monitor cards. No span adjustment or sensitivity correction is required at commissioning, reducing startup time and eliminating a source of calibration error.
• Deterministic alarm response: Because the transducer delivers a continuous analog voltage output — not a sampled digital value — the 3500 monitor card can compute RMS and peak velocity on every measurement cycle (typically 20 ms update rate), ensuring that transient vibration events of short duration are captured and acted upon without latency introduced by polling intervals.
• Broadband frequency coverage for fault signature analysis: The 2 Hz – 1,000 Hz flat response band encompasses the fundamental and first several harmonics of rotating components operating from 120 RPM to 60,000 RPM, allowing a single transducer to detect imbalance (1×), misalignment (2×), blade pass, and bearing defect frequencies without band-switching or filter reconfiguration.
• Reduced wiring infrastructure: The two-wire IEPE interface carries both the DC supply current and the AC signal on the same conductor pair, eliminating the need for a separate power supply cable run to the transducer. In a large installation with dozens of measurement points, this halves the cable tray fill and associated installation labor.
• Diagnostic transparency via bias voltage monitoring: The 3500 monitor continuously checks the transducer bias voltage. A bias outside the 8–12 VDC window indicates a transducer fault (open circuit, short circuit, or internal circuit failure) and generates a Not OK (NOK) status output — providing actionable diagnostic information without requiring manual inspection of the transducer.
• Mechanical robustness for continuous service: The 2,000 g shock survivability rating and IP67 sealing allow the transducer to remain installed through routine maintenance activities — including high-pressure water washing of bearing housings — without removal, reducing the risk of reinstallation errors that can introduce measurement offsets.
• Hazardous area deployment: ATEX and IECEx certification enables installation in Zone 1 and Zone 2 classified areas (gas groups IIA, IIB) without additional barriers in most configurations, simplifying the safety instrumented system (SIS) architecture for petrochemical and offshore applications.
• Long-term calibration stability: The shear-mode PZT element exhibits less than 0.5% sensitivity drift per year under continuous operation at rated temperature, meaning the transducer remains within its calibrated accuracy band for multiple years between scheduled calibration intervals — a measurable reduction in maintenance cost for large rotating machinery fleets.
