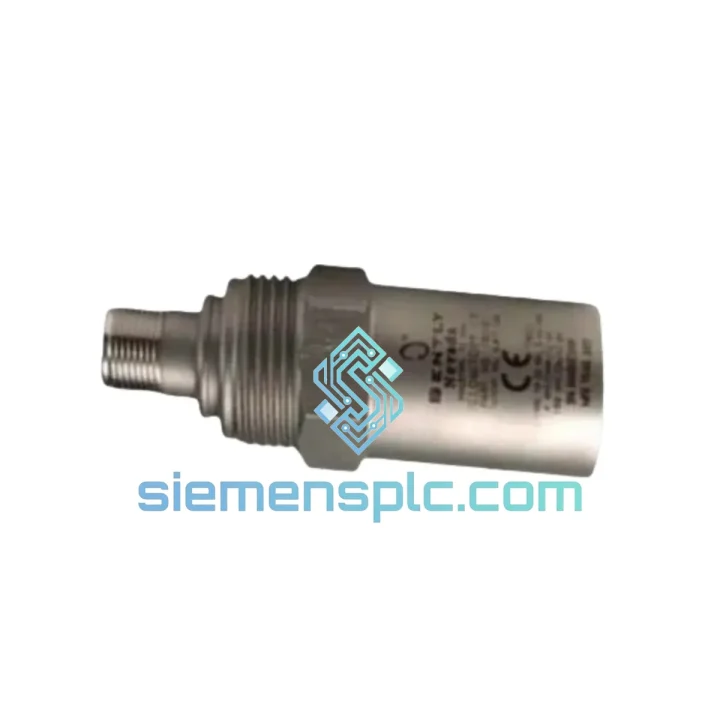

Bently Nevada 190501-06-99-00 Velocity Transducer – Velomitor CT

Bently Nevada 190501-06-99-00 Velomitor CT — Piezoelectric Velocity Transducer for Critical Machinery Protection

The Bently Nevada 190501-06-99-00 is a ceramic-technology piezoelectric velocity transducer belonging to the Velomitor CT product family. Its primary function within a machinery protection control loop is to convert casing or structural vibration into a proportional analog voltage signal, which is then conditioned and evaluated by a downstream monitor module — typically the Bently Nevada 3500/42M Velocity Monitor — against user-configured alarm and danger setpoints. Unlike proximity probes that measure shaft relative displacement, the 190501-06-99-00 measures absolute seismic velocity of the bearing housing or machine casing, making it the preferred sensor for machines where shaft access is impractical or where casing-borne vibration is the dominant failure indicator.

In a closed-loop machinery protection architecture, the transducer feeds a continuous 4–20 mA or voltage signal into the monitor rack. The 3500 system processes this signal in real time, applying digital filtering, RMS or peak-to-peak computation, and alarm logic with configurable time delays. The 190501-06-99-00 operates passively — it requires no external power supply or signal conditioning barrier — which simplifies field wiring and reduces potential failure points in the measurement chain. Its ceramic sensing element (CT designation) provides a stable sensitivity coefficient across the full operating temperature range, eliminating the thermal recalibration cycles associated with conventional PZT-based designs.

This transducer is specified in API 670 Fifth Edition compliant protection systems for steam turbines, gas turbines, centrifugal compressors, and large electric motors where casing vibration monitoring is mandated. It is equally applicable in non-API installations including induced-draft fans, boiler feed water pumps, gearboxes, and marine propulsion machinery where predictive maintenance programs demand continuous, high-fidelity vibration data.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 190501-06-99-00 employs a shear-mode ceramic piezoelectric element rather than the compression-mode PZT crystals used in earlier Velomitor generations. In shear-mode geometry, the sensing element is mechanically decoupled from the base of the housing, which substantially reduces the base-strain sensitivity — a critical advantage in applications where the mounting surface itself undergoes thermal expansion or mechanical flexure. Base-strain errors in compression-mode sensors can introduce spurious low-frequency signals that mask genuine machinery vibration, particularly on thin-walled casings or pipe-mounted brackets.

The ceramic element exhibits a pyroelectric coefficient approximately 40% lower than standard PZT-5A formulations, which translates directly to reduced thermal transient noise. In outdoor installations subject to solar radiation or steam impingement, this characteristic prevents the false alarms that plague conventional sensors during temperature ramp events. The element is encapsulated in a hermetically sealed stainless steel housing with a welded seam, eliminating moisture ingress paths that degrade insulation resistance and introduce low-frequency noise in humid or washdown environments.

From an EMC perspective, the 190501-06-99-00 incorporates an internal Faraday shield between the sensing element and the housing. This shield intercepts capacitively coupled electrical interference from adjacent power cables, variable-frequency drives, and high-voltage switchgear — all common noise sources in industrial substations and motor control centers. The MIL-C-5015 connector provides a continuous metallic shell that maintains shield continuity from the sensor body through the cable armor to the monitor rack, forming a complete coaxial signal path. This architecture allows the sensor to operate within 300 mm of 480 V power conductors without measurable signal degradation, a requirement frequently encountered in compact turbine-generator packages.

The mechanical resonant frequency of ≥ 22,000 Hz ensures that the sensor’s amplitude response remains flat and phase-linear across the entire 2–1,000 Hz measurement band with a margin factor exceeding 22:1. This wide margin prevents resonance amplification from distorting high-frequency bearing defect signatures (BPFO, BPFI, BSF) that typically appear in the 500–1,000 Hz range on slow-speed machinery. The 1/4-28 UNF mounting stud provides a rigid, low-compliance mechanical interface that preserves this frequency response characteristic in field installations — adhesive mounts or magnetic bases introduce compliance that rolls off the high-frequency response and should not be used in protection-grade applications.

System Integration Benefits

• Direct 3500 Rack Compatibility: The 190501-06-99-00 interfaces natively with the Bently Nevada 3500/42M Velocity Monitor without signal conditioning adapters. The monitor’s input circuit is matched to the sensor’s 100 mV/in/s sensitivity, enabling accurate engineering-unit display and alarm setpoint configuration directly in in/s or mm/s without scaling factors.
• Deterministic Real-Time Response: The passive sensor architecture introduces zero processing latency between physical vibration and the electrical signal presented to the monitor. The 3500 rack processes the incoming signal within one scan cycle (typically < 20 ms), ensuring that trip signals reach the relay output within the API 670 mandated response time of < 1 second from alarm condition onset.
• Diagnostic Transparency via System 1: When paired with Bently Nevada System 1 Evolution software, the 190501-06-99-00 supports full waveform capture and spectral analysis. Operators can examine FFT spectra, trend RMS velocity over time, and correlate vibration events with process variables — enabling root-cause analysis without removing the machine from service.
• Hazardous Area Deployment: FM and CSA approved suffix configurations permit installation in Class I, Division 1, Groups C and D classified areas without additional intrinsic safety barriers, reducing BOM complexity and installation cost in petrochemical and upstream oil and gas facilities.
• Wide Temperature Operability: The −40 °C lower limit supports cold-climate installations in LNG facilities, arctic pipeline compressor stations, and outdoor power generation sites without sensor heaters or insulated enclosures, reducing auxiliary equipment costs.
• Reduced Maintenance Interval: The ceramic element’s long-term sensitivity stability — typically < 2% drift over 10 years at rated temperature — extends calibration verification intervals compared to conventional sensors, reducing planned maintenance downtime on critical assets.
• Multi-Machine Scalability: A single 3500 rack can accept up to 14 velocity monitor modules, each supporting two 190501-06-99-00 transducers. This architecture allows a single rack to protect a complete turbine-compressor-gearbox train with a unified alarm management interface, reducing operator workload and control room footprint.
• Standardized Spare Parts Strategy: The 190501-06-99-00 is a catalog part with a stable part number across multiple production generations. Facilities can maintain a single spare unit that covers multiple measurement points on different machines, simplifying inventory management and reducing capital tied up in spare parts stock.

Quality Assurance & Global Logistics

Every 190501-06-99-00 unit supplied by siemensplc.com is sourced as genuine Bently Nevada OEM product through established industrial automation distribution channels. Units are inspected upon receipt for physical integrity, connector condition, and documentation completeness. Original manufacturer packaging, including foam-lined transit cases and desiccant packs, is preserved where available to maintain the sensor’s calibrated condition during onward shipment.

Orders are fulfilled from our warehouse in Xiamen, China — a major international logistics hub with direct air freight connections to Singapore, Dubai, Frankfurt, Los Angeles, and Tokyo. Standard international shipments are dispatched within 1–3 business days of order confirmation. Expedited DHL Express and FedEx Priority services are available for urgent plant maintenance requirements, with transit times of 2–5 business days to most destinations worldwide. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for all international shipments. HS Code 9031.80 applies to this product category for customs classification purposes.

All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and premature failure under normal operating conditions. Warranty claims are processed with replacement unit dispatch within 5 business days of defective unit receipt and inspection. Customers requiring third-party calibration certificates or factory test reports should specify this requirement at the time of order.
