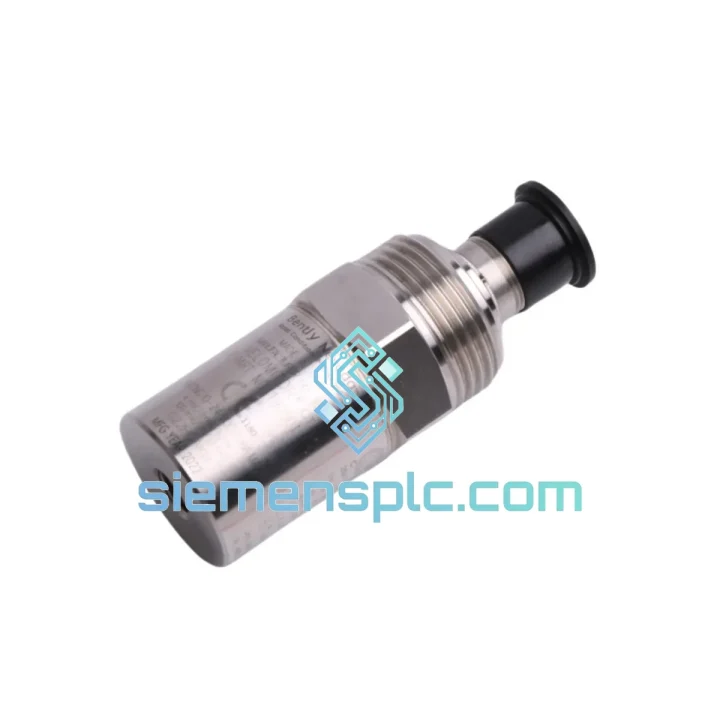

Bently Nevada 190501-08-00-00 Velomitor CT — Piezoelectric Velocity Transducer for Continuous Machinery Protection

The 190501-08-00-00 is a two-wire ICP®-architecture piezoelectric velocity transducer manufactured by Bently Nevada (a Baker Hughes business). Its primary function within a machinery protection loop is to convert casing vibration velocity into a low-impedance, bias-referenced AC voltage signal that is directly compatible with Bently Nevada 3500 Series monitor input cards — specifically the 3500/42M and 3500/45 velocity monitor modules — without any intermediate signal conditioning hardware.

Unlike electrodynamic (moving-coil) velocity sensors, which rely on a suspended mass and coil assembly subject to mechanical resonance and long-term spring fatigue, the 190501-08-00-00 uses a piezoelectric crystal element coupled to an internal ASIC integrator. The crystal generates a charge proportional to casing acceleration; the ASIC integrates this charge signal in the frequency domain to produce a velocity-proportional output. The result is a sensor with no moving parts, a resonant frequency exceeding 22,000 Hz, and a flat frequency response from 4.5 Hz to 5,000 Hz (±3 dB) — a bandwidth more than four times wider than conventional electrodynamic sensors, which typically roll off above 1,000 Hz.

This extended high-frequency capability is operationally significant: gear mesh frequencies, blade pass frequencies, and structural resonances in high-speed turbomachinery routinely occur between 1,000 Hz and 5,000 Hz. A sensor limited to 1,000 Hz will attenuate or entirely miss these fault signatures, delaying detection of developing defects. The 190501-08-00-00 captures the full spectral content required for both protection alarming and condition monitoring trend analysis within a single transducer.

The integral 8 ft (2.4 m) stainless steel armored cable is factory-terminated and sealed to IP67, eliminating the field-assembly connector failures that are a common source of spurious trips in harsh industrial environments. The 316L stainless steel housing provides resistance to hydrocarbon condensate, steam, and mild acid wash-down conditions encountered in petrochemical and power generation facilities. The 1/4-28 UNF stud mount is the industry-standard thread for machinery protection transducer pads, ensuring mechanical compatibility with existing mounting provisions on turbomachinery bearing housings and compressor casings.

The two-wire ICP® signal architecture carries both the DC excitation current (2–20 mA at 18–30 VDC) and the AC velocity signal on a single shielded cable pair. The internal MOSFET output stage presents an output impedance of ≤100 Ω, making the signal immune to cable capacitance effects across runs up to approximately 300 m — a critical advantage in large plant installations where junction boxes may be located far from the monitoring rack. The nominal output bias of 12 VDC provides a clear diagnostic window: a bias reading outside the 10–14 VDC range at the monitor input indicates a wiring fault, connector failure, or sensor malfunction, enabling rapid field diagnosis without specialized test equipment.

All units supplied by siemensplc.com are sourced through verified distribution channels. Each transducer is inspected for housing and cable integrity, bias voltage is confirmed under constant current excitation, and sensitivity is verified at the 159.2 Hz reference frequency prior to shipment. Units are packaged in anti-static foam with individual inspection records. A 12-month warranty against manufacturing defects is included with every shipment.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The internal signal chain of the 190501-08-00-00 follows a three-stage architecture that addresses the primary failure modes of field-deployed velocity transducers:

Stage 1 — Piezoelectric Sensing Element: A shear-mode PZT crystal is mechanically coupled to the transducer housing. Shear-mode geometry is selected over compression-mode because it exhibits significantly lower sensitivity to base strain — a critical property when the transducer is mounted on a bearing housing subject to thermal expansion and bolt preload variation. The crystal generates a charge output (pC/g) proportional to the acceleration of the housing.

Stage 2 — Charge-to-Voltage Conversion and Integration: An internal ASIC performs charge amplification followed by analog integration in the frequency domain. The integration converts the acceleration-proportional charge signal to a velocity-proportional voltage signal. The integration network is designed with a lower corner frequency of 4.5 Hz, below which the output rolls off at 20 dB/decade — this prevents DC drift and low-frequency structural sway from saturating the output stage while maintaining measurement fidelity across the full machinery protection frequency band.

Stage 3 — MOSFET Output Buffer and EMC Filtering: The integrated MOSFET source follower presents ≤100 Ω output impedance, decoupling the signal from cable capacitance. An internal EMC filter network attenuates radio-frequency interference above 100 kHz, which is particularly relevant in installations near variable-frequency drives (VFDs) and high-power switching equipment. The two-wire output carries the AC velocity signal superimposed on the 12 VDC bias, with the monitor’s internal coupling capacitor separating the AC component for processing.

The IP67-rated housing seal is achieved through a dual-stage design: a primary elastomeric O-ring at the cable entry point and a secondary epoxy potting compound encapsulating the internal electronics. This construction prevents moisture ingress under the thermal cycling conditions (−40°C to +121°C) that cause seal degradation in single-stage designs. The 316L stainless steel body provides galvanic compatibility with carbon steel bearing housings while resisting chloride-induced stress corrosion cracking in offshore and coastal installations.

System Integration Benefits

• Direct 3500 Series Compatibility: The 190501-08-00-00 is the factory-specified sensor for the Bently Nevada 3500/42M and 3500/45 velocity monitor cards. No external signal conditioner, barrier, or impedance matching network is required, reducing panel space consumption and eliminating an additional failure point in the signal chain.
• Deterministic Signal Latency: The analog ICP® output delivers the velocity signal to the monitor input card with no digital conversion latency. The 3500 Series monitor processes the analog signal in hardware, achieving protection response times of <1 ms from transducer output to relay actuation — a requirement for machinery protection on high-speed turbomachinery where shaft damage can occur within a single revolution.
• Broadband Spectral Coverage for Dual-Function Use: The 4.5 Hz – 5,000 Hz response allows a single transducer to serve both the protection function (overall velocity RMS against API 670 alert/danger setpoints) and the condition monitoring function (spectral analysis for imbalance at 1×, misalignment at 2×, and bearing defect frequencies at higher orders) — eliminating the need for a separate accelerometer on the same measurement point.
• Long Cable Run Capability: The ≤100 Ω output impedance supports cable extensions up to 300 m without signal attenuation or bandwidth reduction, enabling centralized monitoring rack placement in control rooms remote from the machinery train.
• Bias Voltage Diagnostics: The 10–14 VDC bias window provides a continuous, passive health indicator for the transducer and wiring. The Bently Nevada 3500 Series monitors include built-in transducer power supply (TPS) fault detection that alarms on bias voltage excursions, providing diagnostic transparency without manual field inspection.
• Reduced Installation Complexity: The two-wire architecture eliminates the separate power and signal cable pairs required by older electrodynamic sensors, reducing junction box terminal count by 50% per measurement point and simplifying hazardous area cable gland selection.
• Thermal Stability Across Process Extremes: The −40°C to +121°C operating range covers steam turbine bearing housing temperatures in power generation applications and cold-start conditions in arctic installations without requiring sensor changeout or derating.
• API 670 Compliance for Critical Service: The transducer meets the performance requirements of API Standard 670 (Machinery Protection Systems), the governing specification for protective instrumentation on critical rotating equipment in oil and gas processing. This compliance is a contractual requirement on most EPC projects and simplifies third-party inspection and insurance documentation.
