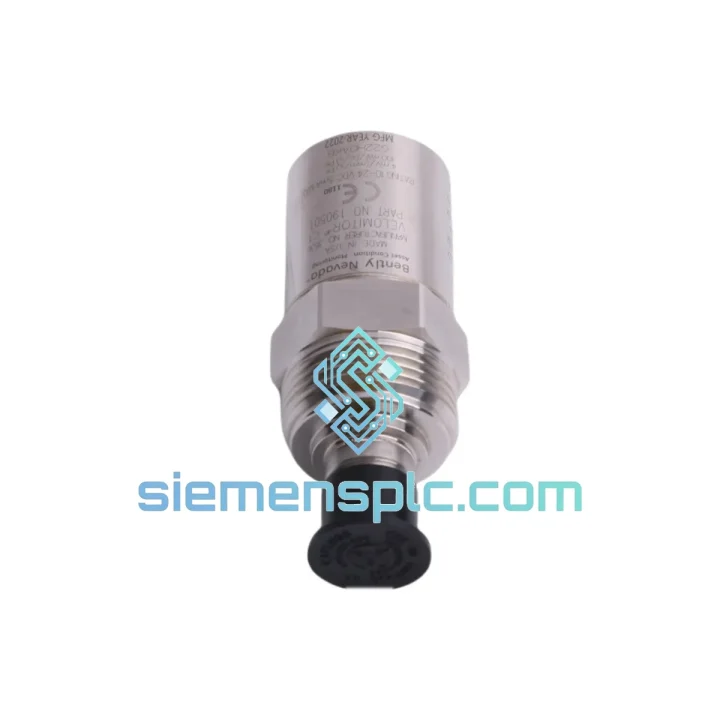

Bently Nevada 190501-08-00-04 Velocity Transducer – Velomitor CT

Bently Nevada 190501-08-00-04 Velomitor CT: Seismic Velocity Measurement in Rotating Machinery Protection Systems

The Bently Nevada 190501-08-00-04 is a solid-state piezoelectric velocity transducer belonging to the Velomitor CT product family, designed for absolute casing vibration measurement on rotating machinery. Unlike traditional electrodynamic velocity sensors that rely on a suspended coil-and-magnet assembly, the 190501-08-00-04 employs an internal piezoelectric accelerometer element combined with an analog integration circuit to produce a velocity-proportional output signal. This architecture eliminates the mechanical resonance artifacts and low-frequency phase distortion inherent to moving-coil designs, delivering a flat frequency response from 2 Hz to 1,000 Hz (±3 dB) with a sensitivity of 100 mV/in/s (4 mV/mm/s).

In a machinery protection loop, this transducer occupies the front-end sensing position for casing or bearing housing vibration. Its output feeds directly into Bently Nevada 3500 Series monitor cards—specifically the 3500/42M Proximitor/Seismic Monitor—where the analog voltage signal is conditioned, peak-detected, and compared against alarm and danger setpoints. The 190501-08-00-04 is also compatible with the 3300 Series and legacy 7200 Series monitoring racks via appropriate signal conditioning modules, making it a viable retrofit component for installed base upgrades without requiring rack-level hardware changes.

The transducer housing is machined from 316L stainless steel and rated IP67, providing ingress protection against dust and temporary immersion. The 2-pin MIL-C-5015 style connector ensures a secure, vibration-resistant electrical interface in environments where cable pull-out or connector fretting would compromise signal integrity. Operating temperature range spans -40°C to +121°C (-40°F to +250°F), covering the thermal envelope of most turbomachinery bearing housings, compressor casings, and motor end-bells encountered in oil and gas, power generation, and petrochemical processing facilities.

The internal signal conditioning electronics are powered by the monitor rack’s constant-current supply, typically 18–30 VDC at 2–20 mA, eliminating the need for a separate field power supply. The two-wire loop-powered configuration simplifies field wiring and reduces installation cost in multi-point monitoring installations. All units available through siemensplc.com are sourced from verified industrial supply channels, inspected for label integrity and connector condition, and shipped with full documentation. 12-month quality warranty is included on every unit.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 190501-08-00-04 departs from the electrodynamic sensor paradigm in a structurally significant way. A conventional moving-coil velocity sensor generates its output through electromagnetic induction: a coil suspended in a magnetic field moves in response to casing motion, and the induced EMF is proportional to velocity. This mechanism introduces a mechanical resonance frequency—typically 8–15 Hz—below which sensitivity drops sharply and phase response becomes nonlinear. In contrast, the Velomitor CT uses a shear-mode piezoelectric crystal bonded to a seismic mass. Acceleration is measured at the crystal level, and an internal ASIC performs analog integration to convert the acceleration signal to a velocity output. This approach pushes the usable low-frequency limit to 2 Hz without the phase distortion associated with mechanical resonance.

The internal integration circuit is implemented in a low-noise, low-drift topology. The integrator’s time constant is trimmed at the factory to achieve the specified ±3 dB flatness across the 2–1,000 Hz band. A high-pass filter at 2 Hz prevents DC offset accumulation in the integrator output—a common failure mode in poorly designed analog integrators exposed to low-frequency structural motion or thermal drift. The output stage drives the two-wire current loop directly, with the signal superimposed on the DC bias current, consistent with the IEPE (Integrated Electronics Piezo-Electric) signal standard used across the Bently Nevada monitoring ecosystem.

EMC performance is addressed at the housing level. The 316L stainless steel body provides a continuous Faraday shield around the internal electronics. The MIL-C-5015 connector’s metal shell maintains shield continuity at the cable interface, preventing common-mode noise injection from variable-frequency drives, high-current bus bars, or RF sources common in industrial environments. The internal circuit ground is isolated from the housing ground, allowing the monitor rack to establish the reference potential and preventing ground loop currents from corrupting the velocity signal—a design discipline that becomes critical in large turbomachinery installations where multiple transducers share a common monitoring rack across physically separated grounding planes.

System Integration Benefits

• Direct rack compatibility: The 190501-08-00-04 interfaces natively with Bently Nevada 3500/42M, 3300, and 7200 Series monitor cards without signal conditioning adapters, preserving the existing rack wiring infrastructure during sensor replacement or system expansion.
• Deterministic alarm response: The flat frequency response from 2 Hz eliminates the low-frequency blind spot present in electrodynamic sensors, ensuring that sub-synchronous vibration events—often the earliest indicator of rotor instability or bearing wear—are captured within the monitor’s alarm evaluation window.
• Reduced wiring complexity: Two-wire loop-powered architecture halves the conductor count compared to three-wire sensor configurations, reducing terminal block density, cable tray fill, and the probability of wiring errors during commissioning or maintenance.
• Diagnostic transparency: The IEPE output standard allows the monitor rack to detect open-circuit and short-circuit fault conditions on the sensor cable by monitoring the DC bias voltage. A bias voltage outside the normal 8–12 VDC window triggers a sensor fault indication in the 3500 Series rack, enabling proactive maintenance before a monitoring gap occurs.
• Thermal stability across process extremes: The -40°C to +121°C operating range covers the full thermal envelope of bearing housings on steam turbines, gas compressors, and cryogenic pump casings, eliminating the need for sensor derating calculations or thermal isolation mounting hardware in most applications.
• Mechanical durability in high-vibration environments: The solid-state piezoelectric element has no moving parts subject to fatigue. Mean time between failures for Velomitor CT sensors in continuous service exceeds 100,000 hours in documented field installations, reducing planned maintenance intervals and unscheduled outage risk.
• Retrofit compatibility: The 1/4-28 UNF mounting thread and MIL-C-5015 connector footprint match the legacy Velomitor (non-CT) series, allowing direct mechanical and electrical substitution without machining new mounting pads or replacing field cables.
• System 1 software integration: When connected through a 3500 Series rack with System 1 Evolution software, the 190501-08-00-04 contributes to trend data streams used for predictive maintenance algorithms, including spectral analysis, overall vibration trending, and alarm history logging with millisecond timestamp resolution.
