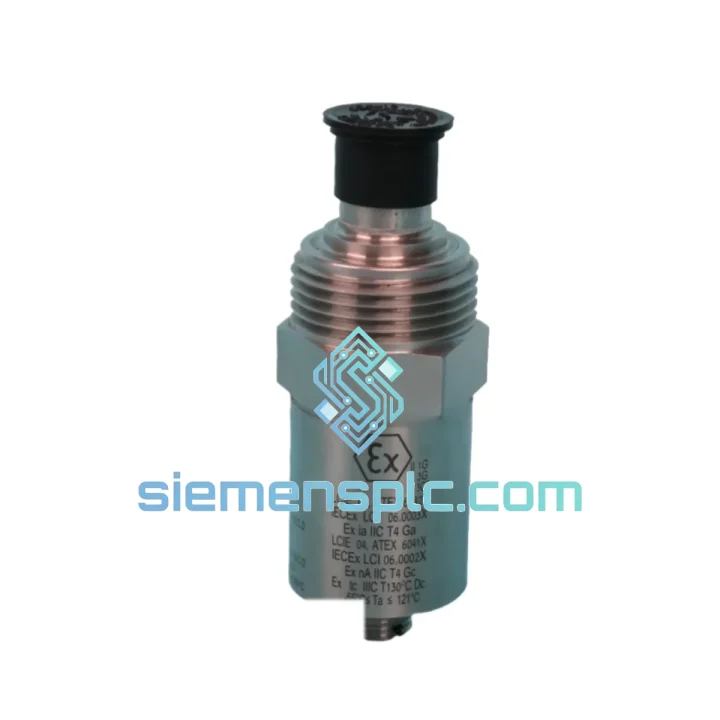

Bently Nevada 190501-09-99-05 Seismic Velocity Transducer – Velomitor CT

Bently Nevada 190501-09-99-05 Velomitor CT — Absolute Casing Velocity Measurement in Continuous-Duty Industrial Environments

The Bently Nevada 190501-09-99-05 is a piezoelectric seismic velocity transducer belonging to the Velomitor CT (Continuous Temperature) product family. Its primary function within a machinery protection control loop is to convert absolute casing vibration velocity into a proportional analog voltage signal, which is then conditioned and evaluated by a compatible monitor module — typically a Bently Nevada 3500/42M Velocity Monitor — against pre-configured alarm and danger setpoints. Unlike proximity probes that measure shaft relative displacement, the 190501-09-99-05 measures absolute bearing housing motion, making it the correct sensor choice for machines where shaft-relative measurement is impractical or where API 670 mandates casing velocity monitoring as a supplementary protection channel.

In a typical protection architecture, the transducer is stud-mounted to the bearing housing or structural measurement point. Its output feeds directly into the 3500 rack via a shielded, low-capacitance extension cable. The monitor module performs RMS or peak velocity computation in real time, with configurable time constants to suppress transient mechanical events while preserving genuine fault signatures. This deterministic signal chain — from mechanical motion to rack-level trip logic — is what makes the 190501-09-99-05 a trusted component in turbine, compressor, and pump protection systems operating under API 670 and ISO 10816 frameworks.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 190501-09-99-05 employs a shear-mode piezoelectric sensing element — a design choice that directly addresses two persistent challenges in industrial vibration measurement: thermal sensitivity and base-strain rejection. In compression-mode designs, the sensing element is mechanically coupled to the mounting base, meaning any thermal expansion or mounting surface strain is indistinguishable from genuine vibration. The shear-mode geometry decouples the sensing element from the base plate, reducing base-strain sensitivity by approximately one order of magnitude and lowering the thermal transient response coefficient to under 0.002 g/°C — a critical parameter in environments where bearing housing temperatures cycle during startup and shutdown sequences.

The internal signal conditioning circuit is a low-noise JFET-input amplifier configured as a charge-to-voltage converter. This stage presents a high input impedance (>10 MΩ) to the piezoelectric element, preventing charge leakage that would otherwise manifest as low-frequency signal droop — particularly problematic in the 4.5–10 Hz band where early-stage imbalance and misalignment signatures reside. The output stage drives a 100 Ω impedance line, which, combined with the IEPE constant-current supply architecture, provides inherent immunity to cable capacitance variation. Cable runs up to 300 m can be accommodated without measurable sensitivity deviation, a practical advantage in large turbine halls where sensor-to-rack distances are substantial.

EMC hardening is achieved through a combination of the all-stainless-steel housing acting as a Faraday shield, internal ferrite bead filtering on the power supply line, and the differential signal architecture inherent to IEPE transmission. The result is a common-mode rejection ratio (CMRR) exceeding 60 dB across the operating frequency band — sufficient to suppress the 50/60 Hz power-line interference and variable-frequency drive (VFD) switching noise that are endemic to motor-driven compressor and pump installations. The armored integral cable further attenuates radiated EMI ingress at the cable level, eliminating a common failure mode seen with field-assembled connector assemblies.

The CT designation specifically addresses the thermal derating problem. Standard Velomitor units are rated to 121 °C; the CT variant extends this to 177 °C through the use of high-temperature adhesive bonding compounds, PTFE-insulated internal wiring, and a hermetically sealed housing with laser-welded seams. This construction eliminates moisture ingress paths that would otherwise cause insulation resistance degradation and DC offset drift in high-humidity or steam-laden environments such as steam turbine bearing pedestals.

System Integration Benefits

• Direct 3500 Rack Compatibility: The 190501-09-99-05 interfaces natively with the Bently Nevada 3500/42M Velocity Monitor without signal conditioning adapters, preserving the deterministic latency budget of the protection system — typically <100 ms from sensor input to relay output.
• System 1 Software Visibility: When connected through the 3500 rack, velocity waveform and spectrum data are available in Bently Nevada System 1 for trending, alarm management, and root-cause analysis without additional hardware.
• API 670 Table 1 Compliance: The sensor’s frequency response, sensitivity tolerance (±5%), and temperature rating satisfy API 670 Fifth Edition requirements for casing velocity measurement, simplifying documentation for EPC and owner-operator compliance audits.
• Plug-Compatible Replacement: The 1/4-28 UNF mounting thread and side-exit cable geometry match the installed base of legacy Velomitor units, allowing direct field replacement without re-drilling or re-cabling — a measurable reduction in maintenance outage duration.
• Low Cross-Axis Contamination: Transverse sensitivity below 5% ensures that orthogonal vibration components — common in machines with combined radial and axial excitation — do not corrupt the primary measurement axis, maintaining alarm setpoint integrity.
• Wide Dynamic Range: The 0–50 in/s pk amplitude range accommodates both normal operating vibration levels (typically 0.1–0.5 in/s RMS) and the high-amplitude transients generated during machine trips, rundowns, or resonance crossings, without signal clipping that would mask the event signature.
• Deterministic Frequency Coverage: The 4.5–5,000 Hz bandwidth captures the fundamental running speed of machines from 270 RPM through 300,000 RPM, as well as blade-pass frequencies, gear mesh frequencies, and structural resonances within a single sensor channel.
• Reduced Diagnostic Ambiguity: Absolute casing velocity measurement provides a direct correlation to ISO 10816 severity zones, enabling maintenance engineers to apply standardized severity criteria without conversion factors or correction algorithms that introduce uncertainty.

Quality Assurance & Global Logistics

Every Bently Nevada 190501-09-99-05 unit supplied through siemensplc.com is sourced from verified supply channels with full traceability to authorized Bently Nevada (Baker Hughes) distribution networks. Prior to dispatch from our Xiamen, China facility, each unit undergoes a structured pre-shipment inspection protocol: visual examination of housing integrity and label authenticity, connector and cable continuity verification, and packaging assessment to confirm compliance with IEC 60068-2 transportation vibration and shock requirements.

Units are shipped with original manufacturer packaging where available, accompanied by a packing list, commercial invoice, and certificate of conformance. For projects requiring additional documentation — material test reports, country-of-origin certificates, or third-party inspection — these can be arranged at the RFQ stage. Export classification and customs documentation are prepared in accordance with Chinese export regulations and destination-country import requirements, with experience covering shipments to the EU, GCC, Southeast Asia, South America, and North America.

Standard international dispatch from Xiamen is 3–5 business days for in-stock units via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with tracking provided at time of shipment. Air freight consolidation and sea freight options are available for multi-unit orders. All shipments carry a 12-month warranty against manufacturing defects in materials and workmanship, with technical support available via email and WhatsApp throughout the warranty period.
