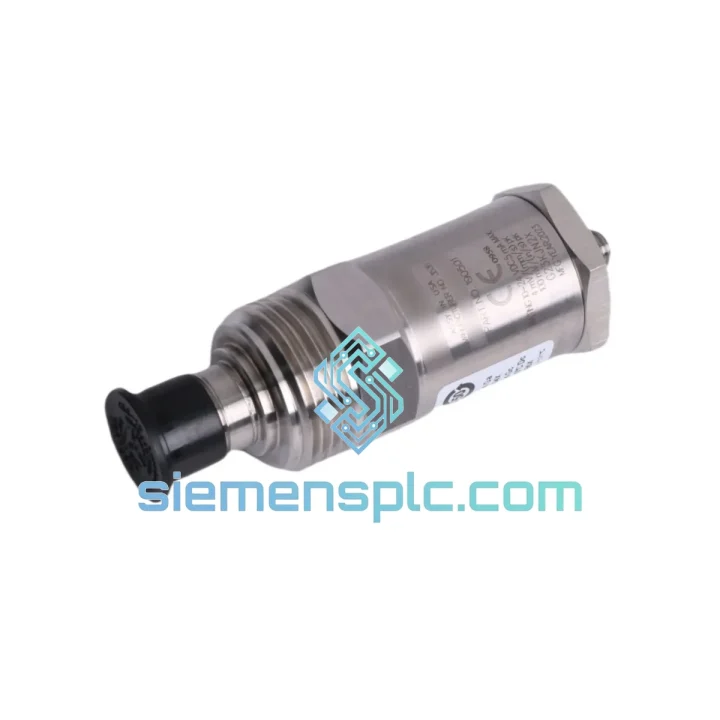

Bently Nevada 190501-23-00-01 Velocity Transducer

190501-23-00-01 Velomitor CT — Stop the Clock on Your Downtime. Ship Today.

Every hour a turbine, compressor, or pump sits idle costs real money. When your Bently Nevada 3500 system throws a velocity channel fault and the culprit is a failed 190501-23-00-01 Velomitor CT transducer, you don’t have time for a 6-week OEM lead time. We stock this unit in Xiamen and can have it on a DHL or FedEx flight within 24 hours of order confirmation. No waiting. No excuses.

The Bently Nevada 190501-23-00-01 is a Velomitor CT (Compact Top-exit) piezoelectric velocity transducer engineered for continuous casing vibration monitoring on rotating machinery. It outputs a proportional voltage signal directly compatible with Bently Nevada 3500/42M and 3500/42E velocity input modules — no signal conditioner, no recalibration, no surprises. This is the exact OEM part your protection system was commissioned with.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of emergency callouts involving this exact transducer, here are the failure patterns and swap pitfalls that catch engineers off guard:

Common Failure Modes:

• High bias voltage drift (>14 VDC): Internal IEPE circuit degradation. The 3500/42M will flag a Transducer Not OK (TNK) alarm. Don’t waste time chasing cable faults first — measure bias at the monitor terminal. If it’s outside 8–12 VDC, the transducer is the culprit.
• Flat-line velocity reading at 0 in/s: Usually an open circuit in the coaxial cable or a cracked piezo element from mechanical impact. Flex the cable near the connector while monitoring the signal — if it flickers, replace the cable assembly first. If the signal stays dead, the transducer body is gone.
• Intermittent spikes / noise floor elevation: Moisture ingress at the MIL-C-5015 connector is the number one cause on outdoor installations. Inspect the O-ring seal and connector backshell. If corrosion is visible, replace the full transducer and cable assembly together.
• 3500 system showing Not OK after transducer swap: Check that the replacement unit’s bias voltage settles within 60 seconds of power-up. Cold units in sub-zero environments can take longer. Also verify the 3500/42M channel is configured for Velocity input type, not Acceleration — a misconfigured channel will reject a perfectly good transducer.

Replacement Procedure (Field-Verified):

1. Inhibit the channel on the 3500 rack before disconnecting — prevents nuisance trips during the swap.
2. Disconnect the MIL-C-5015 cable connector. Do not pull by the cable; grip the connector body.
3. Unthread the transducer from the 1/4-28 UNF mounting boss. Use a proper wrench on the hex flat — never grip the housing body.
4. Inspect the mounting boss for thread damage and clean with a wire brush. Apply a thin film of anti-seize compound to the new transducer threads.
5. Torque to manufacturer spec (typically 2.3 N·m / 20 in-lb). Over-torquing cracks the housing.
6. Reconnect the cable. Power up and allow 60 seconds for bias voltage to stabilize.
7. Verify bias voltage at the 3500 monitor: must read 8–12 VDC. Then remove the channel inhibit.
8. Confirm the OK relay closes and the velocity reading is within expected baseline for that machine.

Configuration Notes: The 190501-23-00-01 is a passive IEPE device — there are no DIP switches, no address settings, and no firmware to match. The only configuration that matters is the 3500/42M channel setup: input type = Velocity, full-scale range, and alert/danger setpoints. These are stored in the monitor, not the transducer. Your existing configuration survives a like-for-like swap.

Reliability in Harsh Conditions

The Velomitor CT was built for environments that destroy lesser sensors. The 316 stainless steel housing is a necessity when the transducer is mounted on a steam turbine bearing housing running at 150°C with condensate dripping from overhead piping. The hermetically sealed internal assembly prevents moisture from reaching the piezo element even when the external connector is temporarily exposed during maintenance.

Vibration endurance is where this unit earns its reputation. Mounted on a reciprocating compressor frame, the transducer itself is subjected to broadband vibration across the full 2–1,000 Hz measurement range simultaneously. The internal mass-spring system is mechanically isolated from the housing resonance, which is why the frequency response stays flat across the entire operating band rather than peaking and rolling off like cheaper alternatives.

Temperature cycling is the silent killer of industrial sensors. The 190501-23-00-01 is rated for -40°C to +121°C continuous operation, and it is designed to survive repeated thermal cycling between those extremes without the internal solder joints or piezo bonding layer fatiguing. Plants that run seasonal shutdowns and cold restarts have reported 8–12 year service lives on these units when properly installed.

The MIL-C-5015 connector standard was chosen for a reason: it was originally developed for military aerospace applications where vibration, shock, and environmental exposure are baseline requirements. The bayonet coupling locks under vibration and the O-ring seal keeps moisture out — a significantly more robust interface than the M12 or BNC connectors found on lower-cost alternatives.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography allows us to reach most global destinations faster than suppliers operating from inland Chinese cities or European distribution centers.

• DHL Express Worldwide: Xiamen to most destinations in 2–4 business days. Tracking available from pickup. Customs clearance handled by DHL’s brokerage network in the destination country.
• FedEx International Priority: Xiamen to North America and Europe in 2–3 business days. Preferred for shipments to the US where FedEx has the strongest last-mile network.
• UPS Expedited: Available on request for destinations where UPS has superior coverage.

Order-to-Ship Timeline: Orders confirmed before 14:00 CST are processed same day. Export documentation — commercial invoice, packing list, certificate of origin — is prepared in parallel with packing. For orders requiring a calibration certificate or material traceability report, allow one additional business day for document preparation.

Customs and Import Duties: We declare goods accurately at full commercial value. HS code 9031.80 applies to this transducer category in most jurisdictions. We can provide a detailed product description letter to support customs clearance if your import broker requires it. Duties and import taxes are the responsibility of the buyer and vary by destination country.

Emergency Freight: For genuine production-down situations, contact us directly via WhatsApp at +86 18359268345. We can arrange same-day pickup with DHL or FedEx for orders confirmed before 12:00 CST, and we will personally track the shipment through to delivery confirmation.
