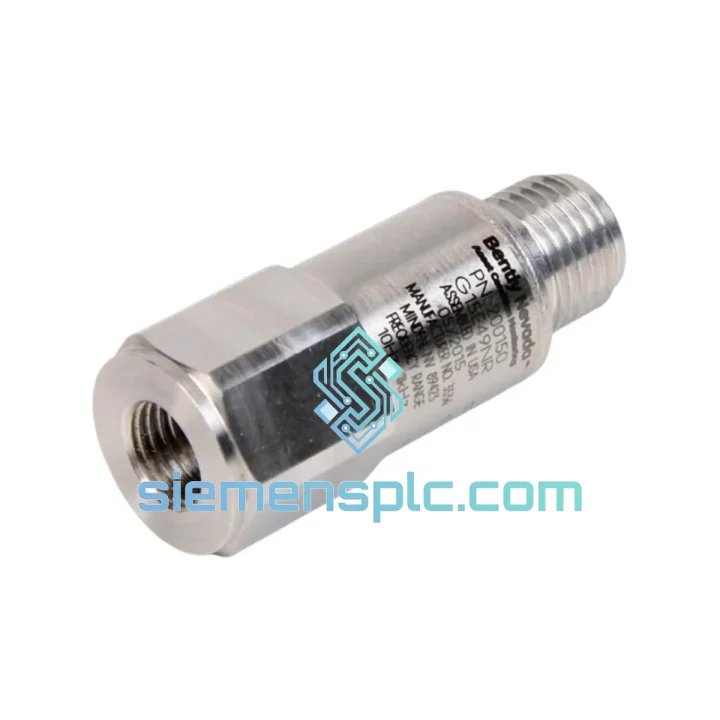

Bently Nevada 200155-10-CN: Low-Frequency Accelerometer for Continuous Machinery Protection

In rotating machinery protection, the frequency range below 10 Hz represents one of the most diagnostically significant — and most technically demanding — measurement domains. Slow-speed equipment such as large centrifugal compressors, hydro turbines, cooling tower fan drives, and kiln rotary drives generate vibration signatures that fall precisely within this sub-10 Hz band. Standard industrial accelerometers, optimized for mid-to-high frequency response, exhibit sharply degraded sensitivity and elevated noise floors at these frequencies, rendering them unsuitable for reliable fault detection in such applications. The Bently Nevada 200155-10-CN is engineered specifically to address this measurement gap within the Trendmaster Pro distributed monitoring architecture.

The 200155-10-CN is a low-frequency accelerometer module designed for native integration with the Bently Nevada Trendmaster Pro continuous monitoring system. Its internal sensing element is selected and calibrated to maintain flat frequency response and low noise floor from approximately 0.5 Hz through the low-frequency range, enabling accurate amplitude and phase measurement of vibration events that would otherwise be masked by sensor self-noise in conventional devices. The CN connector suffix designates the specific field-wiring connector configuration, which must be matched to the corresponding Trendmaster Pro junction box and I/O module wiring harness at the installation site.

Bently Nevada, operating as a Baker Hughes company, established the technical baseline for API 670-compliant machinery protection systems. The Trendmaster Pro platform extends that heritage into distributed, multi-point continuous monitoring, allowing plant operators to surveil dozens of measurement points across a facility from a centralized System 1 software environment. The 200155-10-CN occupies the field sensor layer of this architecture, converting mechanical vibration into conditioned electrical signals that the Trendmaster Pro Smart I/O modules process and transmit to the data acquisition layer.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Full datasheet and calibration certificates available upon request. Contact [email protected] for documentation.

Hardware Logical Analysis

The 200155-10-CN’s hardware design addresses three fundamental challenges inherent to low-frequency vibration measurement in industrial environments: sensor self-noise at sub-10 Hz, susceptibility to DC offset drift, and electromagnetic interference from adjacent power equipment.

Sensing Element Selection and Noise Floor Management: At frequencies below 10 Hz, the signal-to-noise ratio of a piezoelectric accelerometer degrades significantly because the mechanical displacement amplitude for a given acceleration level increases as frequency decreases (displacement = acceleration / ω²). The 200155-10-CN employs a high-sensitivity piezoelectric sensing element with a charge amplifier stage optimized for low-frequency charge accumulation, maintaining a noise floor sufficiently below the minimum detectable vibration amplitude for the target machinery class. This allows the sensor to resolve acceleration amplitudes in the range of 0.01 g at 1 Hz — a specification that eliminates false-negative readings during early-stage fault development.

DC Offset and Thermal Drift Compensation: Low-frequency accelerometers are inherently susceptible to DC offset errors caused by thermal expansion of the sensing element and mounting structure. The 200155-10-CN incorporates internal signal conditioning that applies a high-pass filter with a corner frequency below the measurement band, rejecting quasi-static thermal drift while preserving dynamic vibration content. This design choice ensures measurement stability across the full operating temperature range of –40 °C to +121 °C without requiring field recalibration during seasonal temperature swings.

EMC Design and Shielding Architecture: Industrial plant environments expose field sensors to conducted and radiated electromagnetic interference from variable frequency drives, high-current bus bars, and switching power supplies. The 200155-10-CN’s housing provides a continuous Faraday shield around the sensing element and internal electronics, with the shield ground referenced at the Trendmaster Pro I/O module to prevent ground loop formation. The CN connector incorporates a shielded backshell that maintains shield continuity through the field cable run, a critical detail that prevents common-mode noise injection at the cable-to-sensor interface — a failure mode frequently observed with non-OEM replacement sensors.

Trendmaster Pro Signal Conditioning Interface: Unlike standalone accelerometers that require external signal conditioners, the 200155-10-CN is designed to interface directly with the Trendmaster Pro Smart I/O module’s internal conditioning circuitry. The Smart I/O module provides the sensor excitation voltage, performs analog-to-digital conversion at the field level, and transmits digitized vibration data over the Trendmaster Pro communication bus to the System 1 data server. This distributed digitization architecture eliminates the analog signal degradation that occurs over long cable runs in traditional centralized monitoring systems, preserving measurement accuracy regardless of the distance between the sensor and the control room.

System Integration Benefits

• Native Trendmaster Pro Compatibility: The 200155-10-CN connects directly to Trendmaster Pro Smart I/O modules without external signal conditioning hardware, reducing panel space requirements and eliminating inter-device wiring complexity.
• Deterministic Data Acquisition Timing: The Trendmaster Pro platform’s time-stamped data acquisition ensures that vibration samples from the 200155-10-CN are synchronized with other measurement channels, enabling accurate cross-channel phase analysis for imbalance and misalignment diagnostics.
• System 1 Software Integration: Measurement data from the 200155-10-CN is natively ingested by Bently Nevada System 1, providing access to waveform display, spectrum analysis, trend plotting, and alarm management without custom driver development.
• API 670 Compliance Path: Deploying the 200155-10-CN within a Trendmaster Pro system supports the machinery protection architecture required for API 670 compliance on critical rotating equipment, simplifying documentation for insurance and regulatory audits.
• Scalable Multi-Point Monitoring: A single Trendmaster Pro installation can accommodate multiple 200155-10-CN sensors across different machine trains, with all data consolidated in System 1 for fleet-level health trending and comparative analysis.
• Alarm and Trip Integration: The Trendmaster Pro platform supports configurable alarm and trip setpoints on the 200155-10-CN measurement channel, enabling automated protective action when vibration amplitude exceeds defined thresholds — without operator intervention.
• Diagnostic Transparency: System 1 provides channel-level diagnostic status for each connected sensor, including cable fault detection and sensor self-test results, allowing maintenance teams to identify sensor degradation before it affects measurement integrity.
• Reduced Wiring Infrastructure Cost: The Trendmaster Pro distributed architecture routes sensor data over a shared communication bus rather than individual analog cable runs to a central rack, reducing field cable quantities and associated installation labor for multi-point monitoring projects.

Quality Assurance & Global Logistics

Every Bently Nevada 200155-10-CN unit supplied by siemensplc.com is sourced through verified supply channels and subjected to a structured incoming inspection process before dispatch. Physical inspection covers connector pin integrity, housing surface condition, label authenticity, and part number marking consistency against Bently Nevada’s published part identification standards. Units exhibiting any evidence of counterfeit marking, connector damage, or housing compromise are rejected and quarantined.

Packaging follows anti-static and mechanical shock protection protocols appropriate for precision electronic instrumentation. Each unit is individually bagged in anti-static polyethylene, cushioned with closed-cell foam, and enclosed in a rigid outer carton rated for international air freight handling. Shipments originate from our warehouse in Xiamen, China — a major logistics hub with direct access to international express carriers including DHL, FedEx, and UPS, as well as sea freight consolidation services for larger orders.

Standard international delivery timelines from Xiamen are 3–7 business days via express air freight to most destinations in Europe, Southeast Asia, the Middle East, and the Americas. Expedited same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. All shipments include full tracking and commercial invoice documentation for customs clearance. Export compliance documentation, including HS code classification and certificate of origin, is prepared for each shipment.

A 12-month warranty applies to all supplied units, covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 48 business hours. Replacement units are dispatched upon claim verification, with return logistics coordinated by our team.
