Bently Nevada 3500/05-01-02-01-00-01 Chassis Rack

3500/05-01-02-01-00-01 Chassis Rack — Every Hour of Downtime Costs You More Than This Part

Your 3500 system is dark. The protection rack is dead. Operators are standing by, production is halted, and every minute the turbine sits idle is burning through your maintenance budget. The Bently Nevada 3500/05-01-02-01-00-01 chassis rack is the backbone of your entire machinery protection system — without it, every monitor module, every relay, every vibration channel is offline. We stock it. We ship it today. From Xiamen to your site via DHL or FedEx, tracked door-to-door.

This is not a refurbished shell. This is a verified, original Bently Nevada 3500/05 chassis — backplane connector integrity checked, slot guide rails inspected, chassis ground continuity confirmed. If you need it fast, you’ve found the right supplier.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on 3500 systems, here are the failure modes that actually bring down a chassis — and what to watch for when you swap one in.

1. Backplane Connector Oxidation (Most Common Failure)

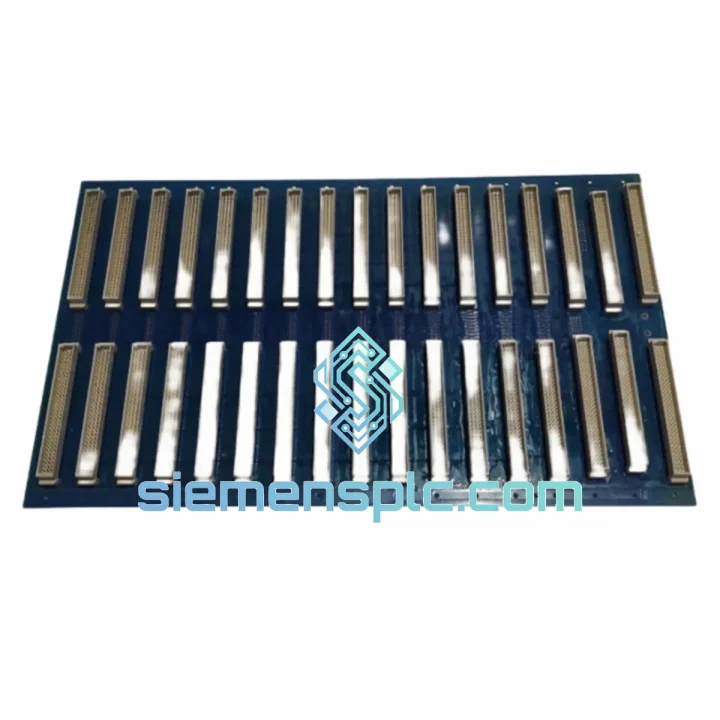

The 3500/05 backplane uses gold-plated edge connectors. In high-humidity or coastal environments, oxidation on the module-side fingers causes intermittent communication faults — you’ll see random “Module Not Responding” alerts on the 3500/22 TDI or the Rack Configuration Software (RCS). Before condemning the chassis, reseat every module and inspect connector surfaces. If the fault follows the chassis (not a specific module), the backplane is gone. Replacement is the only fix — the backplane is not field-repairable.

2. Slot Guide Rail Damage
Forced module insertion — especially during emergency swaps in the dark — bends the aluminum guide rails. A bent rail causes the module to seat at an angle, creating intermittent backplane contact. Inspect all rails visually before inserting modules into a replacement chassis. Straighten minor bends with a flat tool; replace the chassis if rails are cracked.

3. Chassis Ground Continuity Loss
The 3500/05 relies on chassis ground for EMI shielding and relay common reference. A broken ground stud or corroded ground strap causes erratic relay outputs and false trips. Verify continuity from the chassis ground stud to the rack earth bar before powering up. Torque the ground lug to spec — do not hand-tighten.

4. Power Supply Slot Sequencing
When installing a replacement chassis with dual 3500/15 power supplies, always install the primary PSU in Slot 1 first and power it up alone before inserting the redundant unit in Slot 2. Simultaneous insertion of both PSUs into an unpowered chassis can cause a brief backplane voltage spike that trips the internal protection circuit on older 3500/15 revisions.

5. Firmware Compatibility After Chassis Swap
The chassis itself carries no firmware — it is passive hardware. However, after a chassis swap, the 3500/22 TDI or 3500/92 Gateway will re-enumerate all modules on the backplane. If any monitor module (e.g., 3500/40M, 3500/42M) is running firmware below the minimum version required by your RCS software revision, you will get a “Firmware Mismatch” warning. Document all module firmware revisions before the swap. Have the Rack Configuration Software connected and ready to push firmware updates immediately after power-up.

6. Suffix Variant Verification
The suffix string -01-02-01-00-01 encodes rack size, power input type, and approval markings. Do not assume all 3500/05 chassis are interchangeable. Cross-reference the full part number on the existing chassis label before ordering. If the label is damaged, contact us with the system serial number and we will cross-reference against the Baker Hughes configuration database.

Replacement Procedure Summary:

1. De-energize the rack — remove both PSUs from Slots 1 and 2 first.
2. Document all module positions and rear I/O wiring before extraction.
3. Extract all modules in reverse slot order (highest slot number first).
4. Transfer rear I/O terminal blocks or I/O modules to the replacement chassis — field wiring stays connected.
5. Re-insert modules in original slot order. Do not mix slot assignments without reconfiguring in RCS.
6. Install primary PSU (Slot 1), power up, verify backplane OK LED.
7. Install redundant PSU (Slot 2) if applicable.
8. Connect RCS laptop, run full rack configuration verification, confirm all channels are active and within alarm setpoints.

Reliability in Harsh Conditions

The 3500/05 chassis was engineered for the environments where machinery protection matters most — offshore platforms, gas compression stations, and refinery turbine decks. The steel card cage construction provides structural rigidity under continuous vibration loads that would fatigue lighter enclosures within months. The chassis has been validated to withstand sinusoidal vibration per IEC 60068-2-6 and random vibration profiles representative of compressor skid installations.

Thermal performance is equally robust. The open-card-cage design relies on forced-air convection from the installed power supply fans, maintaining module junction temperatures within spec at ambient up to 65 °C — covering the majority of non-climate-controlled MCC rooms and outdoor enclosures in tropical and desert installations. The chassis itself has no active thermal components to fail; its reliability is a function of the backplane and mechanical structure, both of which are designed for 20+ year service life under normal operating conditions.

For high-humidity environments — coastal facilities, offshore platforms, tropical process plants — the chassis should be installed in a purged and pressurized enclosure or a climate-controlled cabinet. The backplane connectors are the most humidity-sensitive component; gold plating provides corrosion resistance, but sustained condensation will eventually cause contact resistance to rise. Units supplied from our Xiamen warehouse are stored in climate-controlled conditions and shipped in anti-static, moisture-barrier packaging with desiccant packs included.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent replacement orders, we operate a same-day dispatch process for orders confirmed before 15:00 CST.

Standard Express Transit Times (from Xiamen):

• Southeast Asia (Singapore, Malaysia, Thailand): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK): 4–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–6 business days via FedEx International Priority
• Australia / New Zealand: 3–5 business days via DHL Express

Every shipment includes full export documentation: commercial invoice, packing list, and Certificate of Origin. For customers requiring customs pre-clearance documentation or specific HS code declarations, we prepare these at no additional charge. Dangerous goods classification does not apply to this product — no special handling surcharges.

For plant shutdowns or turnaround events where delivery timing is critical, contact us directly via WhatsApp for real-time shipment tracking and customs status updates. We have handled emergency deliveries to active shutdown sites across the Gulf, Southeast Asia, and Eastern Europe — we understand what “must arrive by Monday” actually means on a plant floor.
