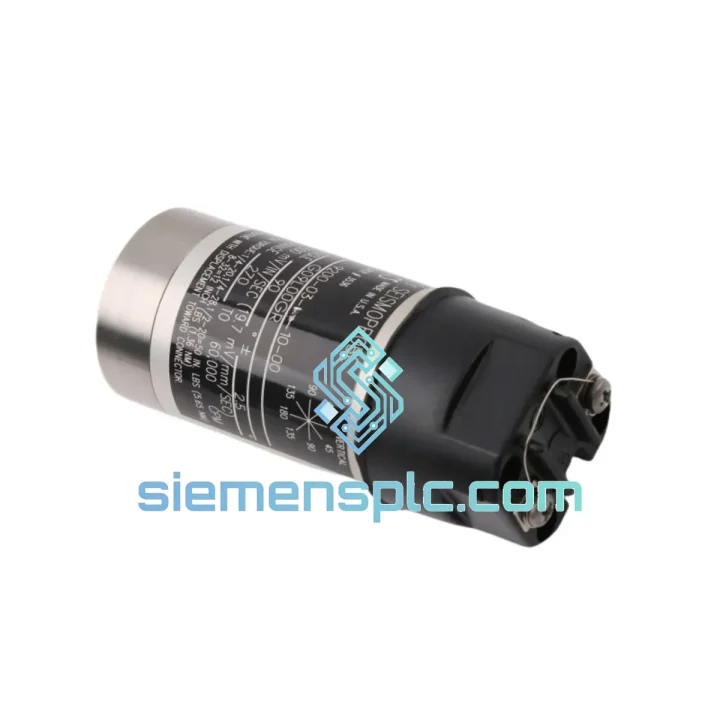

Bently Nevada 9200-03-02-10-00: Two-Wire Eddy-Current Proximity Transducer for Critical Rotating Machinery Protection

In continuous-process industries — power generation, oil & gas, petrochemical refining — the integrity of a rotating machine’s vibration signal chain is not a secondary concern. It is the foundational layer upon which all condition monitoring, protection logic, and maintenance scheduling depends. The Bently Nevada 9200-03-02-10-00 occupies a precise and non-negotiable position in that chain: it is the field-mounted sensing element responsible for converting shaft displacement into a calibrated analog signal that the monitor rack can act upon.

The 9200 Series proximity transducer system operates on the eddy-current principle. A high-frequency oscillator within the proximitor (driver) generates an electromagnetic field at the probe tip. When a conductive target — the rotating shaft — enters this field, eddy currents are induced on the shaft surface. These currents load the oscillator circuit, causing a measurable change in voltage proportional to the gap between probe tip and shaft surface. The 9200-03-02-10-00 configuration specifies a defined cable length, connector termination, and sensitivity factor (mV/mil or V/mm) that must be matched to the paired proximitor and monitor to maintain system accuracy within API 670 tolerances.

The part number suffix breakdown — 03-02-10-00 — encodes the probe body diameter (8 mm), cable length (approximately 1 metre extension), connector type, and target material calibration range. This specificity is deliberate: eddy-current sensitivity varies with target material conductivity and permeability, and the 9200 Series is factory-calibrated for AISI 4140 steel shafts as the standard reference material. Deviation from the specified target material requires recalibration or application of a correction factor per the manufacturer’s calibration data sheets.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 9200-03-02-10-00 probe body is constructed with a ferrite-core coil wound inside a stainless steel housing, threaded for direct mounting into a proximity probe holder or bracket. The coil geometry determines the electromagnetic field shape — a tightly wound, small-diameter coil produces a focused field with a short linear range but high spatial resolution, appropriate for shaft vibration measurement where the target gap is typically held between 1.0 mm and 1.5 mm at the operating set point.

The two-wire architecture is a deliberate design choice that reduces the number of conductors in the field cable run. Unlike three-wire or four-wire sensor configurations, the two-wire design carries both the excitation signal from the proximitor and the return measurement signal on the same conductor pair. This reduces cable bundle diameter in tight machine housings and eliminates one potential failure mode — the third-wire ground path — that can introduce common-mode noise in electrically noisy environments such as motor control rooms or turbine halls.

EMC performance is addressed at the cable level. The extension cable uses a coaxial or twisted-shielded construction with a drain wire terminated at the proximitor end only (single-point grounding). This prevents ground loop currents from modulating the measurement signal — a critical consideration when the probe is mounted on a machine frame that may carry stray currents from variable-frequency drives or welding operations nearby. The shield termination scheme is specified in the Bently Nevada installation manual and must be followed precisely; improper shield grounding is one of the most common sources of elevated noise floor in proximity measurement systems.

The probe tip face is lapped to a defined flatness tolerance. Surface finish at the sensing face affects the uniformity of the eddy-current field and therefore the linearity of the output. Field damage to the probe tip — from contact with the shaft during a rub event, or from mechanical impact during installation — will degrade linearity and shift the calibration curve. This is why the 9200 Series probes are designed as field-replaceable assemblies: the probe body can be swapped without disturbing the extension cable or proximitor, minimizing downtime during maintenance windows.

System Integration Benefits

• Direct API 670 Compliance: The 9200-03-02-10-00 is engineered to meet API 670 requirements for non-contacting vibration transducer systems, enabling use in machinery protection systems on critical and essential machines without additional qualification testing.
• Calibrated System Traceability: Each probe is factory-calibrated as part of a matched system (probe + extension cable + proximitor). The calibration data is traceable to NIST standards, supporting ISO 17025-aligned quality management systems in regulated facilities.
• Deterministic Signal Latency: The eddy-current measurement chain introduces no mechanical hysteresis or contact friction. Signal response is limited only by the proximitor’s oscillator frequency and the monitor’s sampling rate — typically sub-millisecond, supporting high-speed shaft event detection such as rubs, oil whirl, and sub-synchronous instability.
• Backward Compatibility with 3300/3500 Monitor Racks: The 9200 Series output voltage range and sensitivity are matched to the input specifications of both the 3300 and 3500 Series monitor cards, allowing direct replacement in existing installations without reconfiguring monitor channel scaling.
• Non-Contact Wear-Free Operation: With no physical contact between probe and shaft, the MTBF of the sensing element is governed by environmental factors (temperature, chemical exposure) rather than mechanical wear. In clean, temperature-controlled environments, probe service life routinely exceeds 10 years.
• Diagnostic Transparency via Gap Voltage: The DC gap voltage output provides a continuous, real-time indication of the probe-to-shaft gap. This allows maintenance engineers to detect shaft centerline migration, bearing wear, and thermal growth trends without interrupting machine operation — a key enabler of predictive maintenance programs.
• Modular Field Replacement Architecture: The separation of probe body, extension cable, and proximitor into discrete, individually replaceable components means that a failed probe can be swapped in minutes without disturbing the cable routing or monitor rack configuration. This modularity directly reduces mean time to repair (MTTR) during unplanned outages.
• Multi-Parameter Measurement Capability: A single 9200 Series probe installation can simultaneously support radial vibration measurement, shaft absolute position (DC gap), and — when paired with a Keyphasor probe — phase-referenced vibration analysis. This multi-parameter capability from a single sensing point reduces the number of penetrations required in the machine casing.

Quality Assurance & Global Logistics

All Bently Nevada 9200-03-02-10-00 units supplied by siemensplc.com are sourced through verified industrial supply channels. Each unit undergoes a structured incoming inspection protocol before dispatch: physical examination of the probe tip face for surface damage, continuity and insulation resistance check of the cable assembly, connector pin inspection for corrosion or mechanical deformation, and label verification against the manufacturer’s part number and date code.

Documentation packages are assembled per order requirements. Standard documentation includes a packing list with serial number records. On request, we can provide original manufacturer test certificates, certificates of conformance, or third-party inspection reports for orders requiring full supply chain traceability — a common requirement for EPC contractors and nuclear-adjacent facilities.

Logistics are managed from our warehouse in Xiamen, China — a major international freight hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard international transit times from Xiamen are 3–5 business days to Europe and North America, 2–4 days to Southeast Asia and the Middle East. For urgent shutdown requirements, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. All shipments are packed in anti-static, shock-resistant packaging with foam-lined outer cartons. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements.
