Bently Nevada 9571-30 Interconnect Cable – 9571 Series

Bently Nevada 9571-30 Interconnect Cable Assembly: Signal Backbone of Machinery Protection Loops

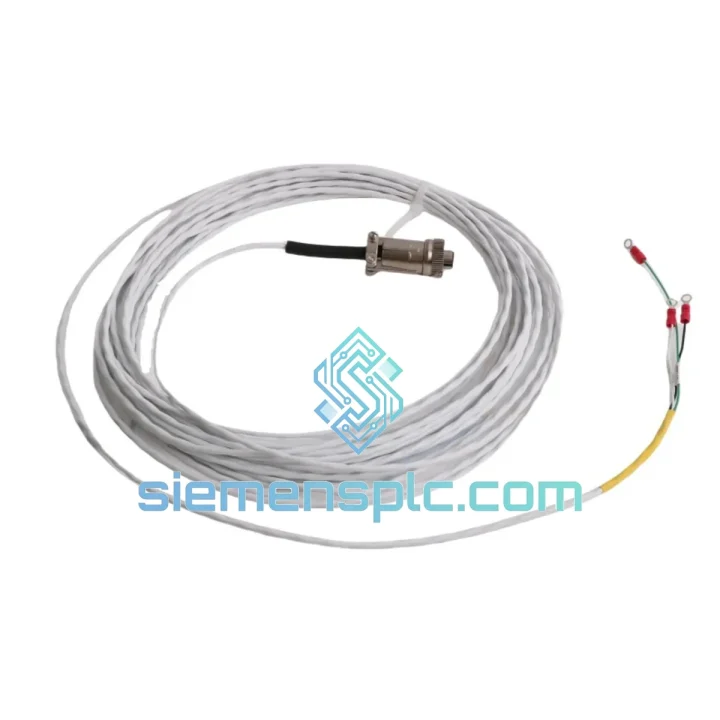

The Bently Nevada 9571-30 is a shielded interconnect cable assembly engineered specifically for the 9571 Series rack-based vibration monitoring and machinery protection platform. Within a continuous machinery protection loop, the 9571-30 serves as the physical signal conduit between transducer-side field wiring and the rack-mounted monitor modules — a role that demands zero signal degradation, deterministic impedance matching, and mechanical robustness under sustained plant-floor vibration.

Unlike generic cable assemblies, the 9571-30 is manufactured to Bently Nevada’s internal dimensional and electrical tolerances, ensuring that the analog signal chain from a Proximitor® or accelerometer sensor arrives at the monitor input with the amplitude accuracy and phase fidelity required for alarm threshold integrity. In rotating machinery protection, a 1–2% signal error at the cable interface can translate directly into missed trip events or nuisance shutdowns — neither of which is acceptable in turbine, compressor, or pump protection applications.

This listing covers genuine, OEM-sourced Bently Nevada 9571-30 units held in stock at our Xiamen, China facility. All units are verified against manufacturer part markings prior to dispatch. For pricing, lead time, and bulk RFQ, contact [email protected] or WhatsApp +86 18359268345.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 9571-30 cable assembly addresses three distinct hardware-level engineering challenges inherent to high-fidelity vibration signal transmission in industrial environments:

1. EMC Shielding Architecture
The cable employs a dual-layer shielding scheme — an inner aluminum-polyester foil layer providing high-frequency attenuation above 1 MHz, combined with an outer tinned-copper braid achieving greater than 85% optical coverage for low-frequency magnetic field rejection. Both shield layers are terminated at 360° at each connector shell, eliminating the pigtail termination inductance that degrades shield effectiveness above 10 kHz. In a turbine hall environment where variable-frequency drives and high-current bus bars generate broadband EMI from 50 Hz to several hundred kHz, this dual-layer approach maintains signal-to-noise ratios within the monitor module’s specified input range.

2. Impedance Continuity and Signal Integrity
Proximitor® sensor outputs operate as current-sourced, voltage-output signals with source impedances typically in the range of 100–1,000 Ω. Any impedance discontinuity along the cable — caused by connector contact resistance variation, dielectric inhomogeneity, or improper termination — introduces reflections that manifest as amplitude error at the monitor input. The 9571-30 is manufactured with controlled dielectric geometry to maintain consistent characteristic impedance along its full length, preserving the DC-to-10 kHz bandwidth required for accurate shaft displacement and vibration amplitude measurement.

3. Mechanical Strain Relief and Connector Retention
In rack-mounted monitor systems, cable assemblies are subject to periodic maintenance disconnection cycles. The 9571-30 connector bodies incorporate positive-locking retention mechanisms that maintain a minimum contact normal force of approximately 0.5 N per pin across the rated temperature range, preventing intermittent contact resistance increases that would otherwise introduce spurious alarm events. The overmolded strain relief at each connector entry limits bend radius to above the cable’s minimum specified value, preventing insulation fatigue cracking in installations where the cable must route through tight conduit paths.

System Integration Benefits

• Deterministic Signal Latency: The 9571-30’s controlled propagation delay ensures that time-stamped vibration data arriving at the 9571 Series monitor module reflects actual shaft position within the monitor’s sampling window, preserving the temporal accuracy required for phase-referenced Keyphasor® analysis.
• Zero-Modification Rack Compatibility: Connector keying and pin-out are factory-matched to 9571 Series rack I/O headers, eliminating field wiring errors that are a primary source of commissioning delays in new machinery protection installations.
• Diagnostic Transparency: The cable’s low and stable contact resistance (typically <50 mΩ per contact) ensures that monitor-side loop resistance measurements accurately reflect field wiring conditions, enabling the 9571 Series’ built-in cable fault diagnostics to distinguish between sensor failures and wiring degradation.
• Reduced Commissioning Time: Pre-terminated, tested cable assemblies eliminate field crimping and continuity testing steps, reducing per-channel commissioning time by an estimated 15–25 minutes in multi-channel rack installations.
• Noise Floor Preservation: The 360° shield termination maintains the monitor module’s achievable noise floor at its specified level, which is critical for detecting sub-mil (25 µm) shaft displacement changes in precision turbomachinery.
• Thermal Stability: Dielectric materials selected for low thermal coefficient of capacitance maintain consistent cable impedance across the -20°C to +70°C operating range, preventing temperature-induced gain drift in the signal chain.
• Compliance with Safety Instrumented System (SIS) Wiring Practices: The cable’s shielding and insulation ratings are compatible with IEC 61511 wiring segregation requirements for SIL-rated machinery protection loops.
• Long-Term Spare Parts Availability: As a catalogued OEM assembly, the 9571-30 is available through specialist distributors including siemensplc.com, ensuring that maintenance teams can source exact replacements without engineering re-qualification of alternative cable types.

Quality Assurance & Global Logistics

Every Bently Nevada 9571-30 unit dispatched from our Xiamen, China facility is sourced through traceable industrial supply channels and verified against manufacturer part markings, label revision codes, and connector condition prior to packaging. We do not handle grey-market, refurbished, or relabeled assemblies. Units are stored in ESD-safe, humidity-controlled conditions to preserve connector contact plating integrity during storage.

Logistics from Xiamen covers all major industrial markets:

• Asia-Pacific: China mainland, Japan, South Korea, Singapore, Australia, India — typically 3–5 business days via DHL Express or SF International.
• Middle East: UAE, Saudi Arabia, Qatar, Kuwait — 4–6 business days.
• Europe: Germany, Netherlands, UK, France, Italy — 5–7 business days via FedEx International Priority.
• Americas: USA, Canada, Brazil, Mexico — 5–8 business days via UPS Worldwide Express.

All shipments include commercial invoice, packing list, and optional Certificate of Origin. A tracking number is issued within 24 hours of dispatch. For project-critical orders, same-day dispatch is available for in-stock units confirmed before 14:00 CST.
