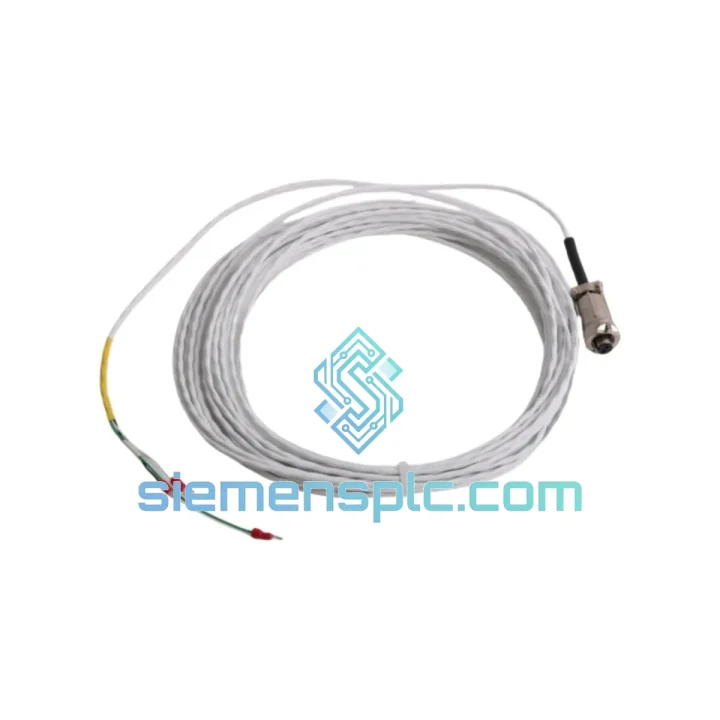

Bently Nevada 9571-32 Proximity Probe – 9000 Series

Bently Nevada 9571-32 — Eddy-Current Displacement Transducer in Rotating Machinery Protection Systems

The Bently Nevada 9571-32 is an eddy-current proximity probe belonging to the legacy 9000 Series Proximity Transducer System. It operates on the principle of electromagnetic induction: a high-frequency oscillating current (typically 1.0–1.5 MHz) is driven through the probe coil, generating an alternating magnetic field at the probe tip. When a conductive target — most commonly AISI 4140 carbon steel shaft — enters this field, eddy currents are induced on the target surface. The resulting energy loss in the probe circuit is detected by the proximitor (driver/oscillator), which converts the gap-dependent impedance change into a linear DC voltage output at a calibrated scale factor of 200 mV/mil (7.87 V/mm).

The “-32” suffix in the part number designates a 32-inch (813 mm) integral cable length. This cable length is a fixed, factory-terminated assembly — it is not field-adjustable. The total system cable length (probe cable + extension cable) must match the proximitor specification, typically 5 m or 9 m, to maintain calibration accuracy. Deviation from the specified total cable length introduces scale factor error and requires system recalibration.

In a machinery protection architecture, the 9571-32 is mounted in a radial or axial orientation relative to the rotating shaft. Radial installations measure shaft vibration displacement (peak-to-peak, in mils or micrometers) and are used to detect unbalance, misalignment, oil whirl, and rub conditions. Axial installations measure thrust position, providing early warning of bearing wear or process-induced axial loading. The probe’s 8 mm tip diameter defines the effective sensing area and determines the minimum target surface width required for accurate measurement — generally 3× the probe tip diameter, or 24 mm minimum target width.

The 9571-32 is designed for continuous, uninterrupted operation in critical rotating machinery: steam turbines, gas turbines, centrifugal compressors, boiler feed pumps, and large induction motors. Its operating temperature range of –30 °C to +120 °C covers the majority of industrial installation environments. For applications exceeding this range — such as hot-section turbine bearing pedestals — Bently Nevada’s high-temperature variants with ceramic-insulated cable assemblies should be specified.

From a signal integrity standpoint, the coaxial cable assembly uses a low-loss dielectric to minimize capacitive loading at the operating frequency. The BNC-style connector at the proximitor end provides a secure, low-resistance termination. Any connector contamination, cable damage, or improper bend radius (minimum bend radius: 25 mm) will introduce measurement error and should be addressed during installation inspection.

This unit is backward-compatible with Bently Nevada 3300 XL, 3500 Series, and 7200 Series monitor platforms, provided the proximitor is matched to the probe type and total cable length. It is also compatible with third-party monitors that accept –24 VDC powered eddy-current probes with a 200 mV/mil scale factor, subject to input impedance and power supply verification.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Electromagnetic Sensing Architecture: The probe coil is wound on a ferrite core and encapsulated in a stainless steel housing with an epoxy-filled tip. This construction provides mechanical rigidity while maintaining a stable electromagnetic field geometry. The ferrite core concentrates the magnetic flux at the probe tip, improving sensitivity and reducing the influence of the probe body on the field distribution. The coaxial cable acts as a transmission line between the probe and the proximitor; its characteristic impedance is matched to the oscillator circuit to minimize reflections and maintain frequency stability.

EMC Design: The coaxial cable construction provides inherent shielding against radiated electromagnetic interference (EMI). The shield is grounded at the proximitor end only (single-point grounding) to prevent ground loop currents that would introduce 50/60 Hz noise into the measurement signal. In high-EMI environments — such as variable frequency drive (VFD) installations or switchgear rooms — additional conduit routing and separation from power cables (minimum 300 mm) is recommended per Bently Nevada installation guidelines.

Gap Setting and Calibration: The probe must be installed at a nominal gap of 40 mil (1.016 mm) from the target surface, placing the operating point at the midpoint of the linear range. This gap is set using a non-conductive feeler gauge or a calibrated gap-setting tool. The proximitor output at nominal gap should read approximately –10 VDC. Deviation from this value indicates incorrect gap, cable length mismatch, or target material variation. Factory calibration is performed against AISI 4140 steel; a material correction factor must be applied for stainless steel, titanium, or aluminum targets.

Connector and Cable Integrity: The BNC connector at the proximitor interface is a critical signal path element. Oxidation, contamination, or mechanical damage at this junction introduces series resistance that shifts the oscillator operating point and produces a false gap reading. Periodic inspection and cleaning with isopropyl alcohol is recommended during scheduled maintenance outages. The minimum cable bend radius of 25 mm must be maintained throughout the cable run to prevent dielectric damage and capacitance variation.

System Integration Benefits

• Plug-and-play monitor compatibility: Factory-calibrated at 200 mV/mil against AISI 4140 steel eliminates field calibration when replacing like-for-like in 3300/3500/7200 series installations — no monitor reconfiguration required.
• Deterministic signal latency: The analog output signal path (probe → cable → proximitor → monitor) introduces no digital processing delay, providing real-time shaft position data with sub-millisecond response — critical for machinery trip logic in API 670-compliant systems.
• Wide monitor platform coverage: Compatible with four generations of Bently Nevada monitor hardware (3300 XL, 3500, 7200, 1900/65A) and third-party monitors accepting –24 VDC eddy-current probes, protecting the investment in existing monitor infrastructure.
• Dual measurement capability: A single probe installation can simultaneously provide vibration (AC component) and position (DC component) data to the monitor, reducing the number of penetrations required in the bearing housing and simplifying installation in space-constrained machinery.
• Diagnostic transparency: The –24 VDC supply and analog output architecture allows direct measurement of probe gap voltage with a standard multimeter during commissioning and troubleshooting, without requiring specialized diagnostic equipment.
• Hazardous area variants: ATEX and IECEx certified variants are available for Zone 1/Zone 2 installations in oil and gas, petrochemical, and offshore environments — same mechanical and electrical interface, different certification documentation.
• Traceability and documentation: Each unit ships with a Certificate of Conformance (COC) and factory test report, supporting quality management system (QMS) requirements under ISO 9001 and API 670 documentation packages.
• Thermal stability: The epoxy-encapsulated coil and stainless steel housing maintain dimensional stability across the full operating temperature range, preventing gap drift due to thermal expansion of the probe body — a common failure mode in lower-grade proximity probes.

Quality Assurance & Global Logistics

Every Bently Nevada 9571-32 unit supplied by siemensplc.com is sourced from authorized distribution channels or OEM-certified supply chains. Prior to shipment, each unit undergoes functional verification: gap voltage output is measured at nominal gap against a calibrated AISI 4140 steel target, and the result is compared against the factory scale factor specification. Units that fall outside the ±1% scale factor tolerance are quarantined and not shipped.

Packaging uses anti-static foam inserts within double-wall corrugated cartons. The probe tip and connector are individually protected to prevent mechanical damage during transit. For international shipments, units are packed to ISTA 2A transit testing standards.

Logistics operations are based in Xiamen, China. In-stock units ship within 1–3 business days of order confirmation. International express delivery (DHL, FedEx, UPS) reaches most destinations in Asia, Europe, the Middle East, and the Americas within 3–7 business days. Air freight and sea freight options are available for bulk orders. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with customs requirements for the destination country. HS Code 9031.80 applies to proximity transducers for most jurisdictions.

A 12-month warranty covers manufacturing defects under normal operating conditions. Warranty claims are processed with COC and failure description; replacement units are dispatched within 5 business days of claim approval.
