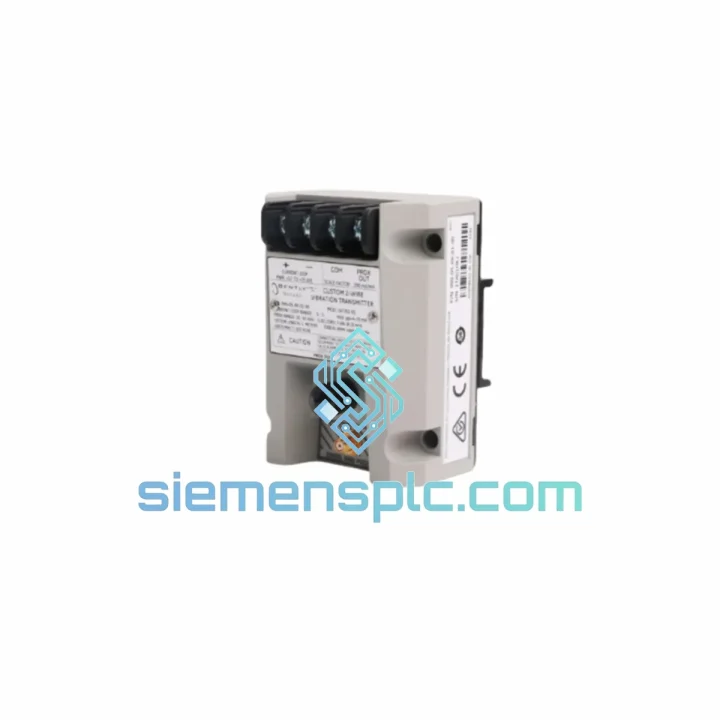

Bently Nevada 990-05-70-02-01 Vibration Transmitter – 990 Series

Bently Nevada 990-05-70-02-01 — Analog Vibration Transmitter for Turbomachinery Protection Loops

The Bently Nevada 990-05-70-02-01 is a single-channel, loop-powered vibration transmitter that converts proximity probe gap voltage into a calibrated 4–20 mA DC signal proportional to shaft radial displacement. Within a machinery protection architecture, this module occupies the signal-conditioning tier between the proximitor/driver and the DCS or safety PLC analog input card. Its function is deterministic: it eliminates the need for custom scaling at the controller level by delivering a normalized current signal whose span and zero are factory-set to match the configured displacement range.

Unlike rack-mounted monitor cards that require a dedicated 3500 or 3300 Series chassis, the 990-05-70-02-01 is a DIN-rail device. This physical form factor allows engineers to distribute vibration signal conditioning directly inside motor control centers, junction boxes, or marshalling panels — reducing cable runs from field probes to the control room and lowering overall installation cost per channel.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 990-05-70-02-01 operates on a three-stage signal chain. In the first stage, the proximitor driver — mounted at the field junction box — biases the eddy-current probe coil and outputs a DC gap voltage in the range of −2 VDC to −18 VDC, with a sensitivity of approximately −200 mV/mil for 3300 XL 8 mm probes. This voltage is transmitted over a shielded twisted-pair cable to the 990 module’s input terminals.

In the second stage, the module’s internal signal conditioning circuit performs a linear voltage-to-current conversion. The input voltage span corresponding to the configured displacement range (e.g., −4 VDC to −16 VDC for a 0–50 mil range) is mapped to the 4–20 mA output span. A precision resistor network and an operational amplifier in a Howland current pump topology maintain output linearity across the full operating temperature range. The two-wire loop architecture means the module draws its own operating power from the loop supply, with a quiescent current draw that keeps the output above 3.8 mA even at zero displacement — preventing false under-range alarms at the DCS input card.

The third stage addresses electromagnetic compatibility. The module’s PCB layout incorporates a common-mode choke on the input lines to suppress conducted interference from variable-frequency drives and high-voltage switchgear operating in the same panel. The output loop is protected against transient overvoltage by a transient voltage suppressor (TVS) diode rated to clamp spikes above 36 V, preventing damage to the DCS analog input card during cable fault events. The DIN-rail housing provides a low-impedance chassis ground path, and the terminal block accepts 0.5–2.5 mm² conductors with cage-clamp termination — eliminating the screw-torque variability that causes intermittent connections in high-vibration installations.

The order suffix breakdown for this specific part number is as follows: 990 = product family; 05 = DIN-rail transmitter form factor; 70 = standard 4–20 mA output; 02 = 3300 XL / 7200 probe system compatibility; 01 = 0–25 mil pk-pk full-scale range. Engineers specifying a 0–50 mil range should reference the 990-05-70-02-02 suffix variant.

System Integration Benefits

• Direct analog input compatibility: The 4–20 mA output interfaces natively with any standard DCS or safety PLC analog input module (HART-capable or conventional), requiring no interposing relay, isolator, or signal converter in the loop.
• Chassis-free deployment: Unlike rack-based monitor cards, the DIN-rail form factor allows installation in existing marshalling panels without allocating a dedicated monitor rack, reducing panel footprint by up to 60% per channel in retrofit projects.
• Deterministic signal latency: The analog current loop introduces no protocol stack delay. Signal propagation from probe gap change to DCS input register update is bounded only by the analog input card’s scan rate — typically 10–100 ms — supporting real-time protection logic in SIL-rated safety loops.
• Probe system backward compatibility: The module accepts input from both the legacy 7200 Series and the current 3300 XL Series proximity systems, allowing phased upgrades of field instrumentation without replacing the transmitter tier.
• Simplified loop diagnostics: A broken field cable or open-circuit probe will drive the output below 3.6 mA, which most DCS platforms interpret as an under-range fault — providing automatic wire-break detection without additional hardware.
• Reduced grounding complexity: The two-wire loop eliminates the separate power supply wiring required by three-wire or four-wire transmitters, reducing the number of ground reference points and the associated ground-loop noise risk in large installations.
• Wide supply voltage tolerance: The 18–30 VDC input range accommodates both 24 VDC nominal supplies and the voltage drop across long cable runs, maintaining specified accuracy without a regulated local supply at the panel.
• Thermal stability across process environments: The −40°C to +85°C operating range covers outdoor installations in arctic climates as well as hot utility areas adjacent to steam turbine casings, without requiring panel heating or cooling provisions.

Quality Assurance & Global Logistics

Every 990-05-70-02-01 unit supplied by siemensplc.com is sourced through verified industrial automation distribution channels and carries full Bently Nevada (Baker Hughes) original manufacturer traceability. Units are not remanufactured or relabeled. Upon receipt at our Xiamen warehouse, each module undergoes a structured incoming inspection protocol: visual examination of housing, terminal block, and label integrity; continuity verification of input and output terminals; and cross-reference of the unit’s date code and serial number against the order documentation.

Packaging follows anti-static handling procedures — modules are placed in conductive foam-lined boxes with desiccant packs and sealed in moisture-barrier bags before outer carton packing. This prevents electrostatic discharge damage and humidity ingress during ocean or air freight transit.

From our Xiamen, China logistics hub, we ship to destinations across Southeast Asia, the Middle East, Europe, and the Americas. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international shipment. For time-critical plant shutdowns or emergency spares requirements, DHL Express and FedEx International Priority services are available with typical transit times of 3–5 business days to major industrial hubs. All units are covered by a 12-month warranty from the date of shipment.
