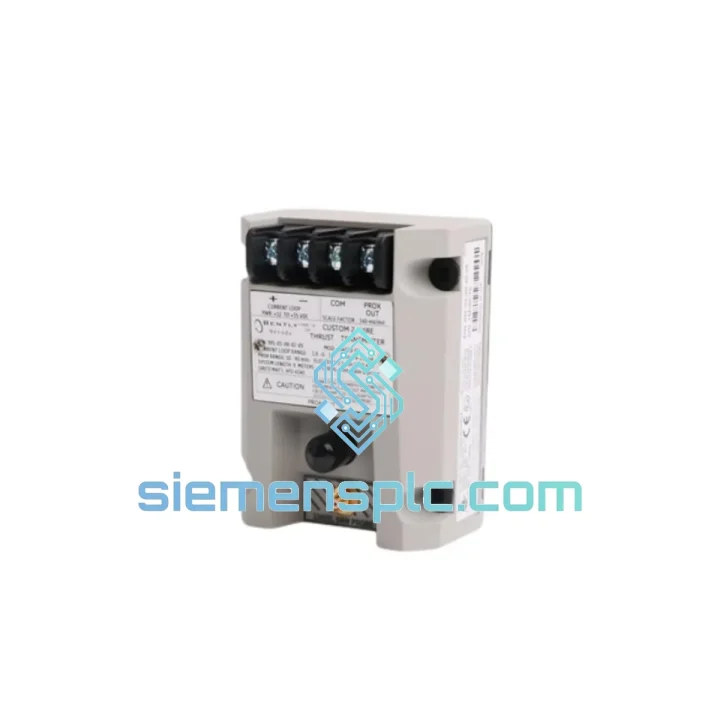

Bently Nevada 991-01-XX-01-00 MOD 284318-01 Vibration Transmitter

991-01-XX-01-00 MOD 284318-01: Stop the Clock on Your Downtime — Ship Today

Every hour your turbine, compressor, or pump train sits idle costs real money — production losses, contractual penalties, and the kind of pressure that makes a 3 AM phone call feel routine. The Bently Nevada 991-01-XX-01-00 MOD 284318-01 vibration signal transmitter is confirmed in stock at our Xiamen warehouse. We don’t quote lead times in weeks. We quote in hours. If your machinery protection loop is down and you need a verified replacement on the bench by tomorrow, this is the page you’ve been looking for.

This is not a catalog listing. This is a field-ready unit — inspected, bench-tested, and packed for express freight. We’ve shipped this exact module to petrochemical plants in the Middle East, power stations in Southeast Asia, and paper mills in Europe, all under shutdown conditions where every hour of delay had a dollar figure attached to it.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

If you’re here because the 3500 system threw a fault and the plant is breathing down your neck, here’s what actually matters on the bench and in the field:

Common Failure Signatures

• 4 mA output stuck / no signal: First suspect the field cable — check for shield grounding loops or broken drain wire before condemning the transmitter. Measure the transducer gap voltage at the transmitter input terminals. If gap voltage is outside –2 VDC to –18 VDC, the transducer or extension cable is the culprit, not the transmitter.
• Output pegged at 20 mA: Shaft contact or transducer probe tip damage. Verify probe gap physically before swapping the transmitter. A pegged-high output on a healthy transmitter means the input is seeing a gap voltage below –2 VDC (probe too close or shorted).
• Noisy / erratic 4–20 mA output: Check loop wiring for ground loops. The transmitter’s 500 VDC isolation handles most common-mode noise, but a broken shield at the DCS end will inject 50/60 Hz interference that looks like a real vibration signal. Disconnect the shield at one end only.
• Intermittent dropout under vibration: Terminal block screw torque. Vibration loosens screw terminals over time. Re-torque to 0.5–0.6 N·m and re-test before replacing the module.

Replacement Procedure — Field Checklist

1. Confirm bypass / inhibit status in the 3500 rack or DCS before disconnecting the loop — tripping a running machine during module swap is a real risk.
2. Document the existing terminal wiring with a photo before removal. The MOD 284318-01 connector pinout is fixed, but field wiring practices vary.
3. Verify the replacement unit’s MOD designation matches: MOD 284318-01 is a specific factory configuration. Substituting a different MOD suffix changes the output range or connector variant — confirm before powering up.
4. After installation, simulate 0% and 100% span using a calibrated eddy-current signal source or a known-good transducer at a fixed gap. Verify 4.00 mA and 20.00 mA ±0.2 mA at the DCS AI card.
5. Remove bypass / inhibit and monitor the first 15 minutes of operation. Vibration amplitude should stabilize within ±5% of the pre-fault baseline if the transducer and shaft condition are unchanged.

Configuration Notes

• This transmitter has no DIP switches or firmware configuration — it is a fixed-range analog device. No laptop, no software, no commissioning tool required.
• Compatible transducers: Bently Nevada 3300 XL 8mm (330180-XX-XX) and 7200 series. Third-party eddy-current transducers with –24 VDC bias and 200 mV/mil sensitivity are compatible — verify gap voltage range before installation.
• For 3500 rack-integrated applications: this transmitter is a standalone field device, not a rack card. It does not plug into the 3500 backplane. If you need a rack-mounted monitor card, you’re looking for the 3500/42M or 3500/45 series.

Reliability in Harsh Conditions

The 991-01-XX-01-00 MOD 284318-01 was not designed for a climate-controlled control room. It was designed for the places where machinery actually runs — compressor skid enclosures with 55°C ambient, coastal petrochemical plants with salt-laden humid air, and paper mill environments where the combination of steam, vibration, and chemical mist would destroy consumer-grade electronics in weeks.

The aluminum alloy housing provides structural rigidity under continuous mechanical vibration rated to 2 g across 10–500 Hz per IEC 60068-2-6 — the same test standard used for shipboard and rail-mounted electronics. The internal PCB assembly is conformal-coated, protecting the signal conditioning circuitry from condensation and airborne contaminants without requiring a sealed enclosure that would trap heat.

Thermal performance spans –40°C to +70°C operating range, which covers everything from outdoor installations in northern climates during winter shutdowns to enclosed turbine hall environments in tropical regions. The 500 VDC input-to-output isolation is not just a spec number — it’s what keeps a ground fault on the transducer cable from corrupting the DCS AI card or triggering a nuisance trip in the safety loop.

Shock resistance at 30 g / 11 ms per IEC 60068-2-27 means the unit survives the kind of mechanical events that happen during emergency shutdowns, pipe hammer incidents, and the occasional dropped tool during maintenance. These are not laboratory conditions — they are the conditions your plant actually operates in, and this transmitter is rated for them.

Global Express Logistics

Our warehouse is located in Xiamen, China — one of the most logistics-efficient export hubs in Asia, with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. For shutdown situations, we operate on a same-day dispatch model: orders confirmed before 14:00 CST ship the same business day.

Typical Transit Times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 1–2 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK): 3–4 business days via DHL Express Worldwide
• North America (USA, Canada): 3–5 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express

Every shipment includes full export documentation: commercial invoice, packing list, certificate of origin, and ECCN / HTS classification declaration for customs clearance. ESD-safe inner packaging with double-box outer carton is standard — the module arrives in the same condition it left the warehouse.

For time-critical shipments, we coordinate directly with the freight forwarder to prioritize booking on the earliest available flight. If your plant has a preferred carrier account, we can ship on your account number to consolidate billing and tracking under your logistics system.

Tracking numbers are provided within 2 hours of dispatch. We monitor shipments proactively and flag any customs holds or routing delays before they become your problem.
