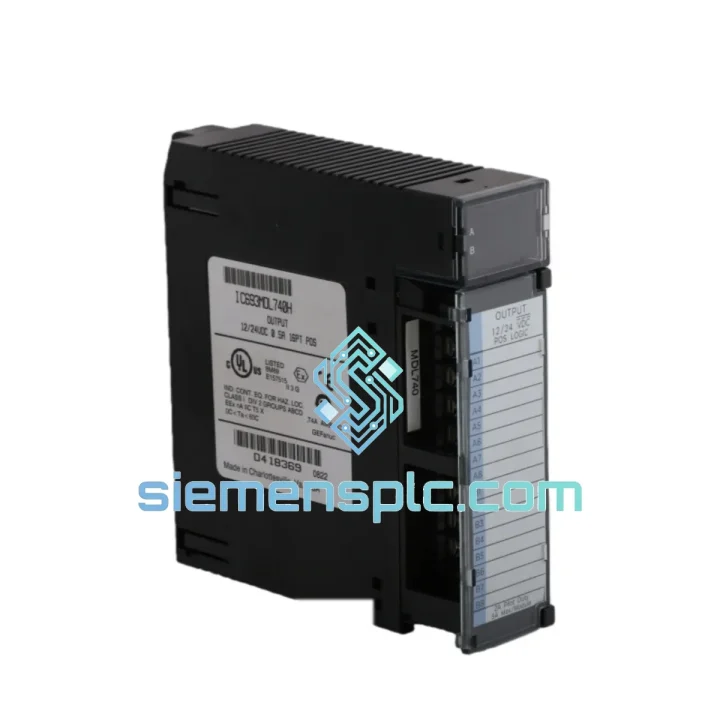

GE Fanuc IC693MDL740 PLC Output Module

IC693MDL740 Down? Every Minute of Downtime Costs You Money — We Ship Same Day

A failed IC693MDL740 on a Series 90-30 rack doesn’t wait for procurement cycles. Conveyor lines stop. Assembly cells go dark. Shift supervisors start making calls. We’ve been on the other end of those calls — and we built this inventory specifically so you don’t have to wait 4–6 weeks for a factory order. Stock is on the shelf in Xiamen. Your replacement ships today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The IC693MDL740 fails in predictable ways. Here’s what field experience actually looks like:

Fault Code %I / %Q Mismatch — Output Stuck OFF
If the CPU’s output image table shows the point commanded ON but the field device doesn’t energize, suspect the output transistor stage first. Measure field-side voltage at the terminal block with the output commanded ON. If you read 0 VDC with 24 VDC supply present, the transistor is blown — typically from inductive kickback on an unprotected solenoid coil. Replace the module. Add flyback diodes to solenoid loads before reinstalling.

Fault Code 0080 / 0081 — Module Configuration Mismatch
After swapping in a replacement IC693MDL740, the CPU may log a configuration fault if the rack configuration stored in the CPU doesn’t match the slot assignment. Use Proficy Machine Edition (or the legacy Logicmaster 90 programmer) to force a rack configuration update. Navigate to Hardware Configuration → Rack → Slot → confirm module type IC693MDL740 is assigned. Download the hardware config. The fault clears on the next power cycle.

Intermittent Output Chatter — Suspect Backplane Connector
Series 90-30 modules use a card-edge backplane connector. After years of thermal cycling, the gold fingers oxidize. Before condemning the module, remove it, clean the card-edge contacts with isopropyl alcohol and a lint-free swab, reseat firmly. If chatter persists across multiple slots, the backplane itself may have a cracked trace — check with a continuity tester across the backplane bus pins.

Replacement Procedure — Step by Step

1. Command all outputs OFF from the CPU. Verify field devices de-energized.
2. Switch the rack power supply to OFF. Do not rely on hot-swap unless your rack configuration explicitly supports it and you’ve verified the CPU firmware version.
3. Disconnect field wiring from the IC693MDL740 terminal block. Label each wire before removal — the 16-point connector is not keyed.
4. Release the module locking tab and slide the IC693MDL740 straight out of the slot.
5. Insert the replacement module. Confirm the card-edge seats fully — you’ll feel a positive click.
6. Reconnect field wiring per your original labeling. Verify terminal torque: 0.5–0.6 N·m.
7. Power the rack. The CPU should auto-recognize the module within one scan cycle. Verify the I/O fault table is clear before returning to AUTO mode.
8. Cycle each output point individually from the programmer before releasing to production.

IC693MDL740 vs IC693MDL741 — Don’t Mix Them Up
The MDL740 is positive logic (sourcing). The MDL741 is negative logic (sinking). They are not interchangeable. Installing the wrong polarity module will result in all outputs remaining OFF regardless of CPU commands. Check your field device wiring convention before ordering.

Reliability in Harsh Conditions

The Series 90-30 platform was designed for the factory floor, not the server room. The IC693MDL740 reflects that design philosophy at the I/O level. Optical isolation between the field side and the backplane bus means that a wiring fault, a ground loop, or a voltage spike on the field terminals cannot propagate to the CPU — the logic side stays clean regardless of what happens in the panel.

The output transistors are rated for continuous operation at 0°C to 60°C ambient, with derating curves published for elevated temperatures. In practice, we’ve seen these modules running reliably in non-air-conditioned panels in Southeast Asian manufacturing facilities where summer ambient temperatures inside the enclosure regularly exceed 50°C — within spec, but only just. If your installation runs hot, verify your panel ventilation before blaming the module.

Vibration resistance meets IEC 68-2-6 test profiles, which covers the shock and vibration environment of most machine tool and conveyor applications. The card-edge backplane connection, while occasionally a maintenance point on older racks, provides a mechanically robust interface that outperforms ribbon-cable I/O buses in high-vibration environments.

Humidity tolerance up to 95% non-condensing covers coastal and tropical industrial environments. Condensation is the enemy — if your panel breathes, add a thermostat-controlled heater to keep the internal temperature above the dew point. The IC693MDL740 itself won’t corrode under normal humidity, but the terminal block connections will if moisture ingress is allowed.

Every unit we ship has been visually inspected, label-verified, and powered on for functional testing. We don’t ship modules that have sat in unknown storage conditions without verification. If a unit fails incoming inspection at your facility within 5 business days of receipt, we replace it — no argument.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Orders confirmed before 15:00 CST ship same business day.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Vietnam, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, UK, Netherlands, Poland): 4–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–6 business days via FedEx International Priority
• Australia / New Zealand: 3–5 business days via DHL Express

All shipments include a commercial invoice, packing list, and HS code classification (HS 8537.10) for customs clearance. We handle export documentation — you handle installation. For orders requiring formal ECCN classification or end-user certificates, contact us before placing the order.

Packaging: each IC693MDL740 is wrapped in anti-static shielding bag, cushioned in foam-lined corrugated carton, and sealed with tamper-evident tape. The module arrives at your facility in the same condition it left ours.

Tracking numbers are issued within 2 hours of shipment and sent directly to your order email. For urgent shipments, WhatsApp us the tracking request and we’ll respond within 30 minutes during business hours.
