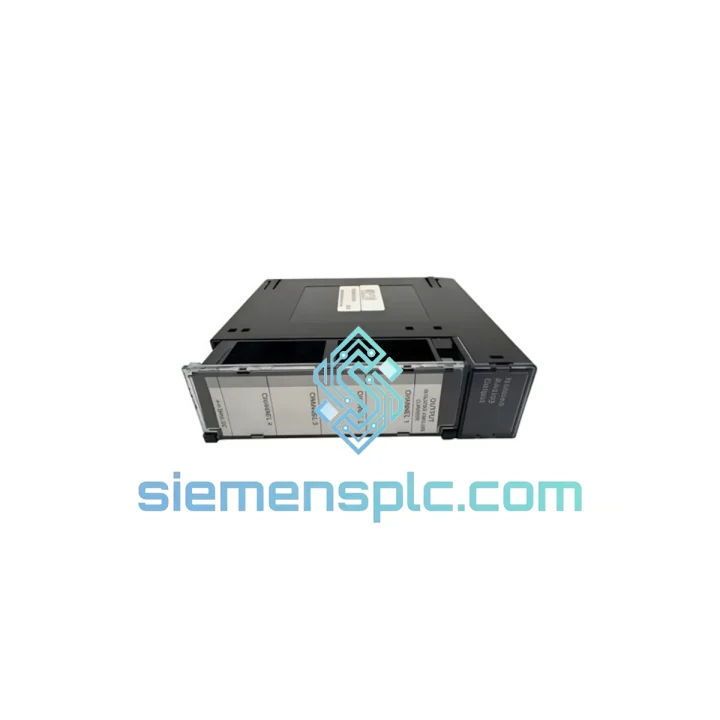

GE HE693THM884 Thermocouple Input Module

GE HE693THM884 8-Channel Thermocouple Input Module – Stop the Clock on Your Downtime

Every minute your line is down, you’re bleeding money. A failed thermocouple input module in a Series 90-30 rack doesn’t just trip an alarm — it halts production, triggers safety shutdowns, and puts your maintenance team under pressure that compounds by the hour. The GE HE693THM884 is the exact replacement you need, and we have it on the shelf in Xiamen right now. No lead-time negotiation. No waiting on a distributor’s back-order queue. We ship the same business day.

This is not a refurbished pull or a grey-market substitute. Every HE693THM884 unit we dispatch is 100% original GE Fanuc manufacture, physically inspected, and bench-verified before it leaves our facility. When you’re staring at a CPU fault log at 2 AM, you don’t have time for surprises — and neither do we.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on Series 90-30 systems, these are the failure patterns and swap pitfalls that catch engineers off guard with the HE693THM884:

Common Fault Codes & Root Causes

• %I / %Q reference fault on thermocouple channels: Almost always a wiring polarity reversal on the terminal block. The HE693THM884 uses a dedicated screw-terminal connector — double-check that extension wire polarity matches the thermocouple type selected in the hardware configuration. Swapping J-type wire on a K-type channel will produce readings that are plausible but wrong, and the CPU won’t flag it as a hard fault.
• Open-circuit detection on all 8 channels simultaneously after module swap: The replacement module’s slot address has not been accepted by the CPU. Power-cycle the rack after seating the module. The Series 90-30 does not hot-configure new I/O modules — a rack power cycle is mandatory for the CPU to re-enumerate the slot.
• Intermittent temperature spikes / noise on one channel: Ground loop. The HE693THM884 provides channel-to-channel isolation, but if the thermocouple sheath is grounded at both the sensor end and the terminal block, you’ll see 50/60 Hz interference riding on the signal. Lift the shield ground at one end only.
• Module LED solid red after insertion: Firmware mismatch between the module revision and the CPU firmware. HE693THM884 units manufactured after a certain revision require CPU firmware ≥ v9.x. Check your IC693CPU3xx firmware stamp on the CPU faceplate and compare against GE GFK-0356 release notes.

Step-by-Step Replacement Procedure

• Step 1 – Document before you touch anything. Screenshot or photograph the existing hardware configuration in Proficy Machine Edition. Note the slot number, thermocouple type assignments per channel, and any scaling or filter settings configured in the I/O table.
• Step 2 – De-energize the rack. The Series 90-30 does not support live module swaps on analog/specialty modules. Cut power to the rack power supply — do not rely on the CPU RUN/STOP switch alone.
• Step 3 – Label and disconnect field wiring. The HE693THM884 uses a removable terminal block. Pull the connector, label each wire pair with channel number and polarity before removal. Thermocouple extension wire is polarity-sensitive and type-specific.
• Step 4 – Seat the replacement module. Slide the HE693THM884 into the same slot. The module is keyed to the backplane connector — confirm full engagement before latching.
• Step 5 – Reconnect field wiring. Reattach the terminal block. Verify polarity and thermocouple type match per channel against your documented configuration.
• Step 6 – Power up and verify. Restore rack power. Allow 30 seconds for the CPU to complete I/O scan initialization. In Proficy ME, go online and verify all 8 channels report valid temperature values within expected process range. If any channel shows open-circuit, recheck terminal block seating and wire continuity.
• Step 7 – Confirm hardware configuration match. If the replacement module has a different firmware revision than the original, re-download the hardware configuration from Proficy ME to ensure the CPU’s I/O table is synchronized with the physical module.

Reliability in Harsh Conditions

The HE693THM884 was engineered for the environments where PLC failures are most costly — not climate-controlled server rooms, but foundry floors, chemical plants, and offshore platforms where ambient conditions are adversarial by design.

Vibration is the silent killer of analog input modules. Solder joint fatigue from continuous mechanical vibration causes intermittent faults that are nearly impossible to diagnose without swapping the module. GE’s Series 90-30 I/O modules are designed to IEC 68-2-6 vibration standards, with the backplane connector providing a mechanically secure, low-impedance interface that resists the micro-fretting corrosion that plagues edge-card designs in high-vibration installations.

Thermal cycling is equally destructive. In applications where ambient temperature swings between cold startup and full-load operating temperature, differential thermal expansion stresses every solder joint and connector interface. The HE693THM884’s 0°C to 60°C operating range covers the vast majority of industrial enclosure environments, and the module’s internal thermal management is designed to maintain measurement accuracy across that full range without recalibration.

Humidity and condensation are the third threat vector. The module’s conformal coating on the PCB provides a barrier against moisture ingress that is critical in coastal, tropical, and washdown-adjacent installations. This is not a consumer-grade protection — it is the same industrial-grade coating applied to GE’s full Series 90-30 I/O line, validated for continuous operation in environments up to 95% relative humidity non-condensing.

When you install a replacement HE693THM884 from our stock, you are installing a module that has been stored in controlled conditions — temperature-regulated, humidity-monitored, anti-static protected — from the moment it left the GE Fanuc production line. We do not warehouse modules in uncontrolled environments. Shelf life matters for analog modules, and we take it seriously.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-connected cities on the eastern seaboard, with direct DHL and FedEx gateway access that puts your replacement module on a plane within hours of order confirmation, not days.

Standard Express (DHL / FedEx Priority): 2–4 business days to Southeast Asia, 3–5 business days to Europe and the Middle East, 4–6 business days to North America and Australia. These are not marketing estimates — they are the actual transit times we see on our outbound shipments week over week.

Same-Day Dispatch Cutoff: Orders confirmed with payment before 15:00 CST ship the same business day. Orders confirmed after cutoff ship the following morning. We do not batch shipments or hold orders for consolidation unless you specifically request it.

Export Documentation: Every shipment includes a commercial invoice, packing list, and certificate of origin. HS Code 8537.10 is applied by default. If your import clearance requires additional documentation — FORM E for ASEAN preferential tariff, or a specific country-of-origin declaration format — notify us at order placement and we will prepare it before dispatch.

Tracking: A DHL or FedEx tracking number is emailed to you within 2 hours of dispatch. We monitor all outbound shipments and proactively contact you if a customs hold or carrier delay is detected — you will not be left chasing a tracking number that hasn’t moved.

Packaging: The HE693THM884 ships in anti-static foam-lined packaging inside a double-wall corrugated outer carton rated for international air freight handling. The module will arrive in the same condition it left our warehouse, regardless of what the courier does to the outer box.
