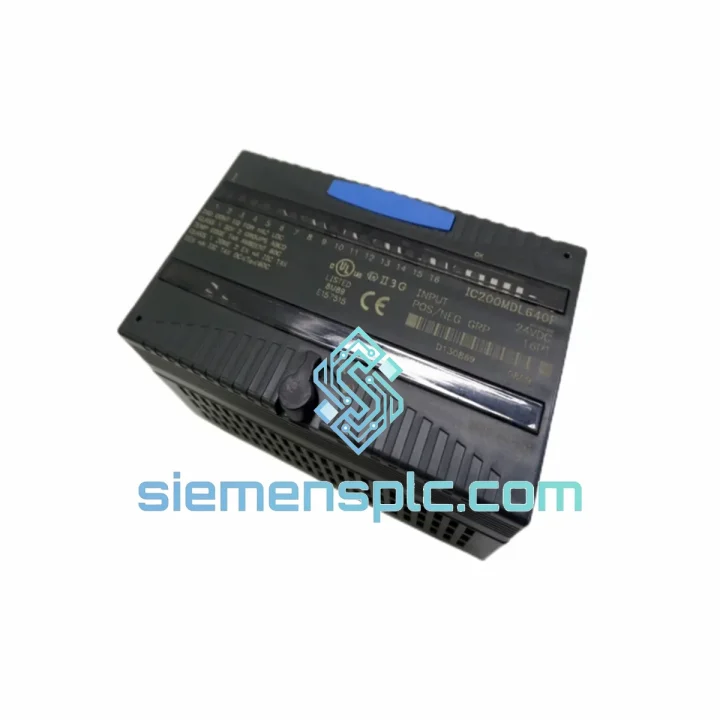

GE IC200MDL640H Discrete Input Module – VersaMax Micro

GE IC200MDL640H — 16-Point 24VDC Discrete Input Module for VersaMax Micro Control Architecture

The GE IC200MDL640H occupies a well-defined position in the VersaMax Micro I/O hierarchy: it serves as the primary field-signal acquisition interface between 24VDC discrete field devices and the CPU’s logic execution engine. Each of its 16 input channels samples the field voltage state, passes the signal through an optocoupler isolation barrier, and presents a conditioned binary value to the backplane data bus within a deterministic scan window. In distributed machine control, conveyor sequencing, and process interlock architectures, this module’s role is not peripheral — it is the first link in every control loop that depends on physical-world feedback.

Unlike generic I/O expansion cards, the IC200MDL640H is engineered to the electrical and timing tolerances of the VersaMax Micro platform. Its input filter network suppresses contact bounce and high-frequency transients before the signal reaches the optocoupler stage, ensuring that the CPU receives a clean, debounced logic level rather than a noisy edge. This hardware-level filtering reduces the burden on application-layer software debounce routines and contributes directly to scan-cycle determinism.

The module draws its logic-side power from the VersaMax Micro backplane, eliminating the need for a separate 5VDC logic supply. Field-side power — the 24VDC common and return — is wired directly to the module’s terminal block, keeping field and logic power domains electrically separated at all times. This architecture is a deliberate design choice: it allows field wiring faults, including short circuits and ground loops, to be contained on the field side without propagating into the CPU or other logic-side modules.

The “H” hardware revision designation reflects a documented component and manufacturing process update applied by GE Fanuc during the module’s production lifecycle. Revision H units incorporate component-level improvements that address long-term reliability under thermal cycling conditions. For maintenance and MRO procurement, revision H is the current preferred specification for new installations and spare-parts stocking.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC200MDL640H implements a two-stage signal conditioning architecture. In the first stage, each input channel passes through an RC filter network whose time constant is selected to attenuate transients above approximately 500 Hz while preserving the DC state of the field signal. This passive filter stage handles the majority of contact-bounce energy from mechanical switches and relay contacts, which typically generate transient bursts in the 50–200 Hz range during switching events.

In the second stage, the filtered signal drives the LED side of a dedicated optocoupler per channel. The optocoupler’s phototransistor output is referenced to the logic-side 5VDC supply, which is galvanically isolated from the 24VDC field supply. The isolation barrier provides a minimum of 1500VAC withstand voltage between field and logic domains, which meets the requirements of IEC 61131-2 for Type 1 and Type 3 discrete inputs. This isolation level is sufficient for most industrial panel environments where field wiring may share conduit with motor drive cables or other high-energy conductors.

The module’s EMC design follows a layered approach. The PCB layout routes field-side traces on a physically separated copper pour from logic-side traces, with the optocoupler package forming the isolation boundary. Decoupling capacitors are placed at each optocoupler’s logic-side supply pin to suppress switching noise injected by the backplane bus. The module housing provides additional shielding against radiated emissions from adjacent modules in the rack.

On the backplane interface, the IC200MDL640H presents its 16-bit input word to the VersaMax Micro CPU via the local I/O bus during each CPU scan cycle. The bus transfer is synchronous with the CPU’s I/O update phase, ensuring that the input image table reflects a consistent snapshot of all 16 channels captured at the same point in the scan. This synchronous capture mechanism eliminates the race conditions that can occur in asynchronous I/O architectures where individual channels may be sampled at different points in the scan cycle.

System Integration Benefits

• Deterministic I/O Update Timing: All 16 input channels are latched simultaneously at the start of each CPU scan cycle, providing a coherent input snapshot that eliminates inter-channel timing skew in logic evaluation.
• Configurable Input Filtering: GE Proficy Machine Edition allows per-module filter delay adjustment from 1 ms to 18 ms, enabling the same hardware to serve both high-speed sensor inputs and slow-switching mechanical contacts without hardware changes.
• Galvanic Field Isolation: The 1500VAC optocoupler isolation barrier protects the CPU and backplane from field-side fault voltages, reducing the risk of cascade failures in the event of field wiring insulation breakdown.
• Backplane-Powered Logic Side: Logic-side power drawn from the VersaMax Micro backplane eliminates the need for a separate 5VDC supply, simplifying panel wiring and reducing the number of power supply failure points in the system.
• Transparent Diagnostics via Proficy ME: The module’s input states are directly visible in the Proficy Machine Edition online monitor, allowing maintenance personnel to verify field signal status without additional test equipment during commissioning and fault-finding.
• Compact Form Factor for High-Density Panels: The module’s physical footprint is optimized for the VersaMax Micro carrier, allowing 16 discrete inputs to be added to a control panel with minimal DIN rail space consumption.
• Positive Logic Compatibility: The sourcing input configuration is compatible with the majority of industrial proximity sensors, photoelectric sensors, and PNP-output field devices without requiring additional signal conditioning hardware.
• Revision H Component Stability: The H revision incorporates component selections with extended production lifecycle commitments, reducing the risk of component obsolescence-driven redesigns in long-running production systems.

Quality Assurance & Global Logistics

Every IC200MDL640H unit shipped from siemensplc.com is sourced through verified supply channels and subjected to incoming inspection before dispatch. Inspection procedures include visual examination of the module label, hardware revision marking, and connector condition, followed by a functional power-on test to confirm that the module’s backplane interface and LED indicators respond correctly.

Units are packaged in anti-static bags with moisture-barrier outer packaging, consistent with IPC/JEDEC J-STD-033 handling requirements for moisture-sensitive electronic assemblies. Each shipment includes a packing list with the part number, hardware revision, and serial number recorded for traceability.

Logistics operations are based in Xiamen, China, with established freight partnerships covering express courier services (DHL, FedEx, UPS) for time-critical orders and consolidated sea freight for volume shipments. Typical express transit times are 3–7 business days to major industrial hubs in Southeast Asia, the Middle East, Europe, and the Americas. Export documentation, including commercial invoices, packing lists, and certificates of origin, is prepared in compliance with destination country import requirements.

A 12-month warranty covers all new units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 2 business days from receipt of the defective unit.
