GE IC693CPU313 PLC CPU Module – Series 90-30

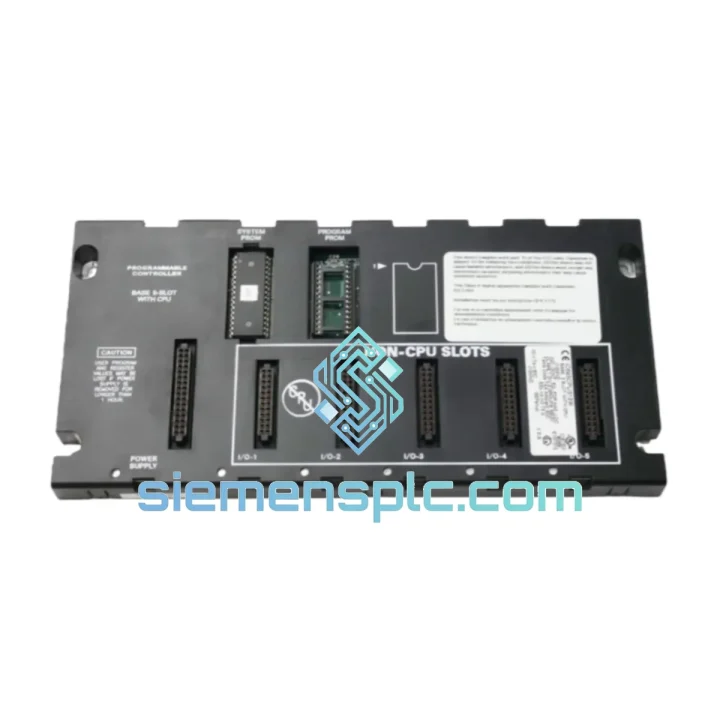

GE IC693CPU313 — 5-Slot Integrated Baseplate CPU in Series 90-30 Control Architecture

The GE IC693CPU313 is a compact, integrated controller unit that combines a 5-slot backplane and an embedded CPU into a single mechanical assembly within the GE Series 90-30 programmable logic controller platform. Unlike modular CPU configurations that require a separate baseplate, the IC693CPU313 consolidates the backplane bus interface and processor logic onto one board, reducing the total component count in the control cabinet and eliminating one potential failure point in the inter-module communication path.

In a Series 90-30 control loop, the IC693CPU313 occupies the leftmost slot of its own integrated 5-slot rack. The remaining four slots accept any standard Series 90-30 I/O or specialty modules — discrete input, discrete output, analog I/O, and communication modules — all communicating with the embedded CPU via the internal backplane bus at a fixed scan cycle. The CPU executes the user ladder logic program stored in its onboard RAM, resolves I/O table updates, and manages the serial communication port for programming and HMI connectivity. This architecture is well-suited for standalone machine control, auxiliary process loops, and distributed I/O nodes where a full-size rack would be over-specified.

The IC693CPU313 supports up to 512 discrete I/O points across its local and expanded I/O configuration, with 6 KB of user program memory and 2 KB of data memory. Program execution is deterministic: the CPU completes one full scan — input read, logic solve, output write — before beginning the next, with no preemptive interruption of the logic solve phase under normal operating conditions. This determinism is a fundamental requirement in machine safety interlocks and sequencing applications where output state must be a direct and predictable function of input state at each scan boundary.

The onboard RS-232 serial port supports programming via GE Proficy Machine Edition software and can be configured for SNP (Series 90 Protocol) or SNP-X communication, enabling HMI panels and SCADA systems to read and write CPU data registers without additional communication modules. For applications requiring Ethernet or fieldbus connectivity, the IC693CPU313 can be paired with Series 90-30 communication modules such as the IC693CMM301 (Ethernet) or IC693CMM302 (Genius Bus Controller) installed in the remaining backplane slots.

Mechanically, the IC693CPU313 is designed for DIN rail or panel mounting. Its operating temperature range of 0°C to 60°C and humidity tolerance of 5% to 95% non-condensing align with standard industrial enclosure environments. The unit weighs approximately 320 g and draws power from a compatible Series 90-30 power supply module (IC693PWR321 or equivalent) installed in the dedicated power slot of the integrated rack.

At siemensplc.com, every IC693CPU313 unit is sourced from verified industrial supply channels, inspected for physical and firmware integrity, and dispatched from our Xiamen, China warehouse with full commercial documentation. We maintain stock for immediate dispatch and support both single-unit procurement and volume orders for MRO and project requirements.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC693CPU313’s defining hardware characteristic is the physical integration of the backplane bus controller and the CPU processor on a single PCB assembly. In conventional Series 90-30 configurations, the CPU module plugs into a separate baseplate, and the backplane bus arbitration logic resides on the baseplate itself. In the IC693CPU313, this arbitration logic is co-located with the CPU, which eliminates the edge connector interface between CPU and baseplate as a potential source of intermittent communication faults — a relevant consideration in high-vibration environments such as press lines or conveyor drives.

The backplane bus in the Series 90-30 platform operates as a parallel, synchronous bus with a fixed arbitration cycle. The embedded CPU in the IC693CPU313 acts as the sole bus master; all I/O modules installed in the remaining four slots are bus slaves that respond to CPU-initiated read and write cycles. There is no multi-master arbitration overhead, which contributes to the deterministic scan behavior described above. The bus cycle time is bounded by the number of installed modules and the data width of each module’s I/O table entry, not by dynamic arbitration delays.

From an EMC perspective, the IC693CPU313 benefits from the Series 90-30 platform’s shielded backplane bus design. The backplane traces are routed on internal PCB layers with ground plane separation, reducing radiated emissions from high-frequency bus transitions. The module’s metal housing provides additional shielding against conducted and radiated interference from adjacent power electronics — a practical requirement in control panels where variable frequency drives or contactors share enclosure space with the PLC rack.

The onboard CPU does not incorporate a hardware watchdog timer as a user-configurable parameter; instead, the Series 90-30 platform implements a fixed-interval watchdog at the firmware level. If the CPU fails to complete a scan within the configured maximum scan time (adjustable in Proficy Machine Edition), the watchdog triggers a CPU fault and transitions all outputs to their configured fault state — either hold-last-state or de-energize — depending on the output module configuration. This behavior is consistent across all Series 90-30 CPU variants and is a documented safety mechanism for process fault containment.

System Integration Benefits

• Reduced BOM complexity: The integrated baseplate-CPU design eliminates one line item from the bill of materials compared to separate CPU + baseplate configurations, simplifying procurement and spare parts inventory management.
• Deterministic scan execution: Fixed-cycle scan architecture ensures that output response to input changes is bounded and predictable, supporting time-sensitive interlock and sequencing logic without requiring interrupt-driven programming.
• Native SNP/SNP-X protocol support: The onboard RS-232 port communicates directly with GE-compatible HMI panels and SCADA systems using the Series 90 Protocol, eliminating the need for a dedicated communication module in single-port applications.
• Full Series 90-30 I/O ecosystem compatibility: All four available backplane slots accept the complete range of Series 90-30 discrete, analog, and specialty modules, providing configuration flexibility without hardware modification.
• Compact panel footprint: The 5-slot integrated form factor occupies less DIN rail space than a separate CPU-plus-baseplate assembly, relevant in retrofit applications where panel real estate is constrained.
• Proficy Machine Edition programming environment: Full compatibility with GE’s current programming software ensures that existing ladder logic programs developed for other Series 90-30 CPUs can be transferred to the IC693CPU313 with minimal modification.
• Fault state output control: Configurable output fault behavior (hold-last-state or de-energize) at the module level allows system designers to define safe failure modes independently for each output module in the rack.
• Expandable I/O capacity: While the integrated rack provides four local I/O slots, the IC693CPU313 supports expansion to up to 512 discrete I/O points via Series 90-30 expansion racks connected through the bus expansion interface, scaling the system without replacing the CPU.

Quality Assurance & Global Logistics

Every IC693CPU313 unit dispatched by siemensplc.com is sourced from verified industrial supply channels with documented traceability. Prior to dispatch, each unit undergoes a structured inspection protocol: physical examination of the PCB, connectors, and housing for signs of damage or non-genuine manufacture; firmware and hardware revision verification against GE’s published documentation; and a functional power-on test confirming CPU initialization and communication port response. Units that do not pass all inspection stages are quarantined and not offered for sale.

Our warehouse is located in Xiamen, China — a major export hub with direct access to international freight carriers including DHL Express, FedEx International Priority, UPS Worldwide, and sea freight consolidators for bulk orders. Standard order dispatch is within 1–3 business days of payment confirmation. Expedited same-day dispatch is available for in-stock units on confirmed orders received before 14:00 CST. All shipments include a commercial invoice, packing list, and certificate of origin. Export compliance documentation is prepared in accordance with applicable regulations for the destination country.

A 12-month warranty is provided on all IC693CPU313 units from the date of dispatch. Units confirmed as defective on arrival (DOA) within 14 days of receipt are eligible for full replacement or refund. Warranty claims are processed via email with supporting documentation; no return merchandise authorization (RMA) number is required for initial claim submission.
