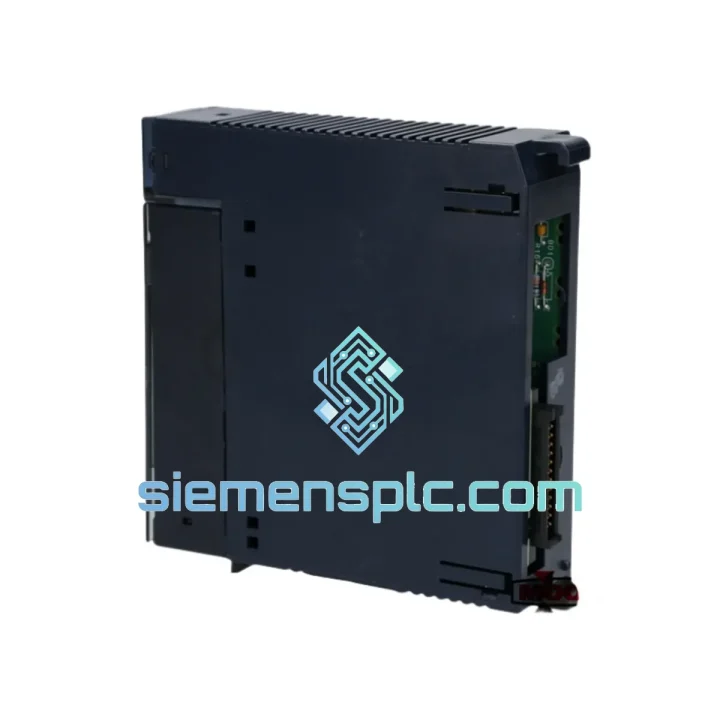

GE IC694ALG221B Analog Input Module

GE IC694ALG221B — 16-Channel Analog Input Module: Stop the Bleed, Restore the Line

A tripped IC694ALG221B doesn’t just take out one signal — it kills all 16 analog channels on that slot simultaneously. Pressure loops, flow transmitters, temperature inputs: every one of them goes dark. Your DCS screen turns into a wall of red. The shift supervisor is already on the phone. You have maybe two hours before this becomes a management incident.

This is exactly the scenario we built our inventory model around. The GE IC694ALG221B sits on our shelf in Xiamen — not allocated, not inbound, not “available in 3–5 weeks.” It is physically here, inspected, and staged for same-day dispatch. Orders confirmed before 16:00 CST ship tonight via DHL Express or FedEx International Priority. Your line can be back up before the end of the next shift.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience across petrochemical, food processing, and heavy manufacturing sites reveals a consistent set of failure patterns for the IC694ALG221B. Here’s what to check before you pull the module — and what to do when you do pull it.

Fault: “Loss of Module” or “Module Not Responding” in CPU Fault Table
This is the most common presentation of a failed IC694ALG221B. Before condemning the module, reseat it. The 96-pin DIN edge connector on the IC694 backplane is susceptible to fretting corrosion in environments with thermal cycling or vibration. Extract the module, inspect the gold-plated connector fingers for oxidation or mechanical damage, clean with 99% isopropyl alcohol and a lint-free swab, and reseat firmly until the ejector latches click. If the fault clears, you bought yourself time — but plan the replacement. Fretting corrosion is progressive.

Fault: Per-Channel Over-Range or Under-Range Alarms
The IC694ALG221B reports individual channel diagnostics to the CPU fault table. Isolated channel faults almost always point to field wiring or transmitter failure, not the module. An open 4–20 mA loop reads 0 mA — the module correctly flags this as under-range. Verify loop continuity and loop supply voltage before swapping hardware. A clamp meter and a loop calibrator will resolve 80% of these calls without touching the module.

Fault: Noisy or Drifting Analog Readings — No Hard Fault
Slow drift in analog values without a fault code is a thermal degradation signature. The internal voltage reference IC degrades under sustained operation above 55 °C. If your panel lacks forced-air cooling and ambient temperatures run high in summer, this is the failure mode to expect after 8–12 years of service. A calibration check with a precision source will confirm it: if the module reads 3.8 mA when you inject 4.0 mA, the reference has drifted. Replace the module.

Replacement Procedure

1. De-energize the rack. The IC694 platform does not support hot-swap on analog I/O. Cut power at the power supply module (IC694PWR321 or IC694PWR330). Attempting live extraction risks backplane bus damage and can corrupt the CPU’s I/O configuration table — a fault that survives power cycling and requires a full hardware configuration download to clear.
2. Photograph the rack and wiring before removal. Document the slot number. The Proficy Machine Edition hardware configuration assigns the IC694ALG221B to a specific slot. Installing the replacement in an adjacent empty slot will generate a configuration mismatch fault on power-up and the module will not initialize.
3. Verify the revision letter. Rev B (IC694ALG221B) supports per-channel signal type configuration via software — no hardware jumpers. Rev A units require physical jumper changes on the PCB to switch between voltage and current input modes. If you are replacing a Rev A with a Rev B, update your Proficy ME hardware configuration to remove any jumper-based signal type settings.
4. Install and power up. No firmware download is required. The IC694ALG221B has no user-programmable firmware. The CPU’s hardware configuration initializes the module automatically on power-up. Clear the I/O fault table after the module initializes.
5. Validate with a loop calibrator. Inject known values on each channel — 4 mA, 12 mA, 20 mA for current loops; 0 V, 5 V, 10 V for voltage inputs. Confirm raw counts and scaled engineering unit values match your process configuration. Do not return the line to production until at least the critical measurement channels are verified.
6. Check for ground loops post-installation. If readings are noisy after replacement, suspect a ground loop introduced during rewiring. Use shielded twisted-pair cable and ground the shield at the panel end only. The module’s 500 V DC channel-to-backplane isolation handles most common-mode noise, but a direct ground path through the shield at both ends defeats it.

Ordering Caution — IC694ALG221B vs. IC694ALG220
The IC694ALG220 is an 8-channel module. The part numbers differ by one digit and are frequently confused in parts lists and CMMS databases. The IC694ALG221B is the 16-channel variant. They occupy the same physical slot but are not interchangeable in the hardware configuration. Confirm your channel count before placing the order.

RX3i Mixed-Rack Note
The IC694ALG221B is compatible with IC694 backplanes used in some RX3i mixed-rack configurations. For a pure IC695 (RX3i) rack, the correct native replacement is the IC695ALG608 (8-channel) or IC695ALG616 (16-channel). Verify your backplane part number — IC694 vs. IC695 — before ordering.

Reliability in Harsh Conditions

GE Fanuc designed the IC694 series for industrial environments where electronics are expected to survive, not just operate. The IC694ALG221B reflects that design philosophy in several concrete ways that matter when you’re specifying a replacement for a demanding application.

The PCB carries a conformal coating applied over all active components and solder joints. In coastal facilities, near cooling towers, or in any environment where humidity swings between 30% and 90% within a single day, this coating is the difference between a module that lasts a decade and one that develops dendritic corrosion failures within two years. Every unit we ship is inspected for coating integrity — we reject modules with visible coating damage, pin corrosion, or evidence of prior moisture ingress.

The 96-pin DIN edge connector and the ejector latch mechanism provide positive mechanical retention against vibration. In applications mounted near large reciprocating compressors, hydraulic presses, or heavy conveyor drives, the constant low-frequency vibration that propagates through the panel structure is a primary cause of intermittent backplane contact faults. The IC694 latch system keeps the module seated under these conditions. If you are seeing random analog faults that correlate with machine cycles rather than process events, check module seating before any other diagnostic step.

Thermal performance is rated to 60 °C continuous. In practice, the limiting components are the electrolytic capacitors on the power conditioning section and the precision voltage reference IC. Both degrade faster above 55 °C. In panels without forced-air cooling in tropical or desert climates, internal temperatures can exceed the rating during peak summer operation. If your facility runs hot and your IC694ALG221B is approaching 10 years of service, proactive replacement during a planned shutdown is significantly cheaper than an emergency replacement during peak production.

Global Express Logistics

Our warehouse operates out of Xiamen, Fujian Province — a primary export hub with direct freight access to Xiamen Gaoqi International Airport (XMN) and daily consolidation to Shanghai Pudong (PVG) for intercontinental connections. DHL Express and FedEx International Priority are our primary carriers for industrial electronics shipments.

Dispatch Sequence:

1. Order confirmed and payment cleared → module pulled from shelf, inspected, and photographed.
2. Packed in anti-static bag, foam-lined rigid carton rated for courier handling.
3. Commercial invoice and packing list prepared with HS code 8537.10 for smooth customs clearance.
4. Shipment booked with DHL Express or FedEx International Priority. Tracking number issued within 2 hours of handover to carrier.
5. Tracking number and shipping documents sent to your email immediately upon dispatch.

Estimated Transit Times from Xiamen:

• Southeast Asia (Singapore, Vietnam, Thailand, Malaysia): 1–2 business days
• Northeast Asia (Japan, South Korea, Taiwan): 1–2 business days
• Middle East (UAE, Saudi Arabia, Kuwait, Qatar): 2–3 business days
• Europe (Germany, Netherlands, UK, Poland, Italy): 3–4 business days
• North America (USA, Canada): 3–5 business days
• Latin America (Mexico, Chile, Colombia): 5–7 business days
• Africa (South Africa, Egypt, Nigeria): 4–6 business days

For destinations with complex import requirements — Brazil, India, Indonesia, Russia — contact us before placing the order. We prepare customs documentation to the specific format required by your country’s import authority and have cleared industrial electronics through most major customs jurisdictions without delays. Getting the paperwork right the first time is what keeps a 3-day shipment from becoming a 3-week customs hold.

Critical shutdown? Next-flight-out and charter courier options are available. Contact us directly on WhatsApp for emergency freight arrangements: +86 18359268345.
