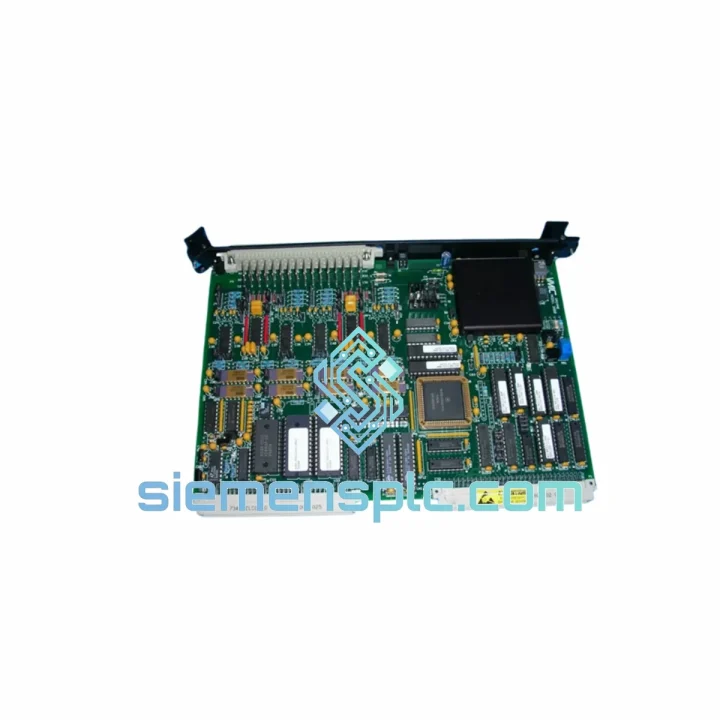

GE IC697VRD008 Analog Input Module – Series 90-70

GE IC697VRD008 – 8-Channel Strain Bridge Input Module for Series 90-70 Control Architecture

The IC697VRD008 occupies a single VME slot within the GE Series 90-70 rack and delivers eight fully differential strain bridge acquisition channels to the control loop. Each channel interfaces directly with resistive bridge transducers — full-bridge, half-bridge, or quarter-bridge configurations at 120 Ω or 350 Ω nominal impedance — without requiring external signal conditioning hardware. The module supplies a regulated 5 VDC ratiometric excitation voltage to each bridge, ensuring that any drift in the excitation reference cancels proportionally in the measurement ratio, a design choice that eliminates a primary source of low-level measurement error in industrial weighing and force-measurement loops.

Within the Series 90-70 backplane, the IC697VRD008 communicates over the VME-based I/O bus at a 16-bit data width. The CPU reads channel data through the standard IC697 I/O scan cycle; scan time contribution per module is deterministic and bounded by the backplane arbitration protocol, which supports up to 12 I/O modules per rack with no slot-position restriction for analog modules. The module’s on-board microprocessor handles per-channel analog-to-digital conversion, range selection, and linearization independently of the CPU scan, meaning conversion latency does not accumulate into the PLC cycle time — a critical property for closed-loop force or torque control where deterministic response is required.

Input range is software-configurable per channel via Logicmaster 90-70 or Proficy Machine Edition: selectable spans of ±15 mV, ±30 mV, ±60 mV, and ±120 mV accommodate the full output range of standard strain gauge bridges under rated load. The 16-bit successive-approximation ADC delivers a resolution of approximately 0.003% of full scale at the ±15 mV range — sufficient for legal-for-trade weighing applications at OIML Class III accuracy when combined with a calibrated load cell. Accuracy across the operating temperature range of 0 °C to 60 °C is specified at ±0.05% of full scale, with a temperature coefficient of offset below 1 µV/°C referred to input, a figure that reflects the use of precision thin-film resistors in the input attenuator network.

Channel-to-backplane isolation is implemented via optocoupler barriers on the analog signal path and DC-DC converter isolation on the excitation supply rail. This architecture prevents ground loop currents — common in large steel-frame machinery where chassis potential differences of several volts are routine — from corrupting the microvolt-level bridge differential signal. The isolation barrier is rated for continuous operation at 250 VAC working voltage, with a 1500 VAC dielectric test voltage, consistent with IEC 61010-1 requirements for measurement category II industrial environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC697VRD008 implements a distributed conversion architecture: each of the eight channels is served by a dedicated multiplexed input path feeding a single high-linearity 16-bit ADC, with per-channel sample-and-hold capacitors that freeze the bridge output voltage at the moment of conversion command. This eliminates inter-channel skew error that would otherwise appear in multi-channel force vector measurements where simultaneous sampling is assumed by the application algorithm.

The ratiometric excitation design deserves specific attention. Rather than referencing the ADC conversion to an independent voltage reference, the module uses the excitation supply voltage itself as the ADC reference. Mathematically, the digitized output represents the ratio V_bridge / V_excitation, which is dimensionless and independent of absolute excitation voltage magnitude. This means that a ±0.5% drift in the 5 VDC excitation rail — entirely plausible over a temperature cycle — produces zero measurement error, because numerator and denominator drift identically. This is the defining advantage of ratiometric measurement in resistive bridge applications.

EMC performance is addressed at the hardware level through a multi-stage input filter on each channel: a first-order RC low-pass at the connector (cutoff approximately 1.6 kHz) attenuates RF interference conducted along sensor cables, followed by a differential-mode active filter ahead of the sample-and-hold stage. The module’s PCB layout routes analog and digital ground planes separately, joining at a single star point adjacent to the DC-DC converter, a topology that prevents digital switching transients from coupling into the microvolt-level analog signal path. The VME backplane connector uses a dedicated analog ground pin separate from the digital ground return, maintaining this separation through the rack wiring.

The on-board microprocessor executes a background self-calibration routine during idle conversion cycles, periodically measuring an internal precision reference and adjusting the ADC offset and gain registers. This auto-zero mechanism maintains specified accuracy without requiring periodic manual field calibration, reducing maintenance burden in installations where the module is mounted in sealed enclosures or elevated locations.

System Integration Benefits

• Deterministic scan contribution: The module’s on-board ADC conversion runs asynchronously to the PLC scan; the CPU reads a latched register value, so IC697VRD008 adds a fixed, bounded latency to the I/O scan regardless of conversion time — preserving the real-time determinism of the Series 90-70 control loop.
• Zero external conditioning hardware: Integrated bridge excitation, input ranging, and linearization eliminate the signal conditioning enclosures, power supplies, and wiring that external transmitter-based approaches require, reducing panel footprint and potential failure points.
• Per-channel software range selection: Input spans are configured in Logicmaster 90-70 or Proficy ME without hardware jumper changes, allowing a single module to serve mixed sensor populations — for example, 350 Ω load cells at ±30 mV alongside 120 Ω torque sensors at ±120 mV — within one rack slot.
• Diagnostic transparency: The module reports channel-level fault status (open-circuit excitation, ADC overrange, power supply out-of-tolerance) to the CPU fault table, enabling the application program to implement sensor-level fault annunciation and safe-state logic without external monitoring hardware.
• Isolation architecture prevents ground loop corruption: The 250 VAC channel-to-backplane isolation barrier allows sensors mounted on electrically noisy steel structures to be wired directly to the module without isolation amplifiers, a common cost and complexity reduction in crane, press, and rolling mill applications.
• Rack-level redundancy compatibility: The IC697VRD008 is compatible with Series 90-70 hot-standby CPU redundancy configurations; the redundant CPU pair reads the same I/O bus, so analog data is available to the standby CPU without additional hardware.
• Logicmaster and Proficy ME software continuity: Configuration data is stored in the CPU project file, not in the module EEPROM, meaning a module swap requires only a power cycle and I/O force-clear — no re-parameterization at the module level.
• Scalable channel density: Multiple IC697VRD008 modules can be installed in the same rack (subject to backplane power budget), providing up to 96 strain bridge channels in a single 12-slot Series 90-70 rack without inter-module communication overhead.

Quality Assurance & Global Logistics

Every IC697VRD008 unit supplied by siemensplc.com is sourced as genuine GE Fanuc original hardware. Prior to dispatch, each module undergoes a functional verification procedure: bridge excitation voltage is measured at the connector pins under load, all eight ADC channels are exercised across their full input range, and the VME backplane interface is verified for correct register read/write response. Units that do not meet the original GE Fanuc factory specification are rejected and not offered for sale.

Shipment originates from our warehouse in Xiamen, China. Xiamen’s port infrastructure supports same-day handover to DHL Express, FedEx International Priority, and UPS Worldwide Express for time-critical orders. Standard transit times are 3–5 business days to Europe and North America, 2–3 business days to Southeast Asia and the Middle East. All shipments include commercial invoice, packing list, and country-of-origin documentation suitable for customs clearance. Export classification is confirmed prior to shipment for compliance with applicable trade regulations. A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions; warranty claims are processed with advance replacement to minimize customer downtime.
