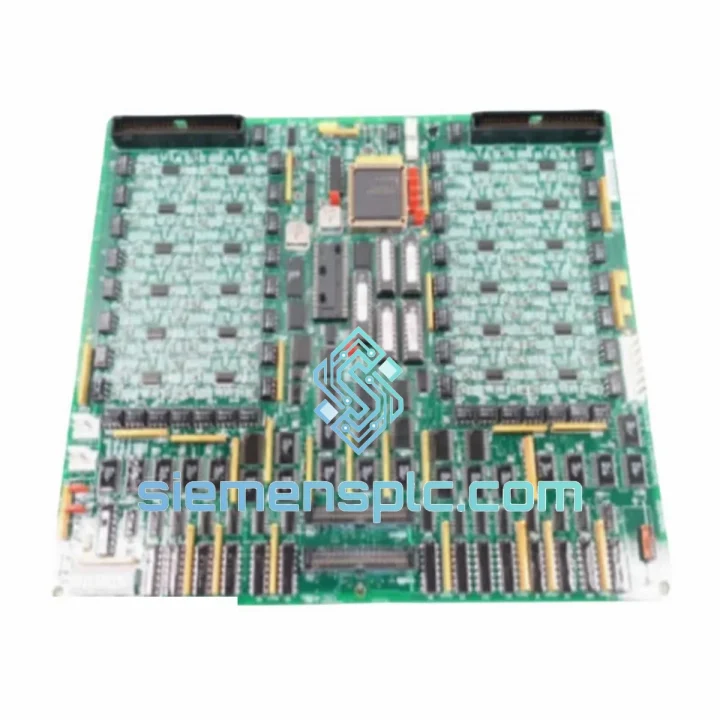

GE IS200VIB-HCAB Vibration Monitoring Board

IS200VIB-HCAB Down? Every Minute of Turbine Downtime Costs You — We Ship Today

A failed vibration monitoring board doesn’t just trigger an alarm — it shuts down your entire turbine protection loop. With the GE IS200VIB-HCAB out of service, your Mark VI system is flying blind on shaft dynamics. Bearing failure, rotor rub, unbalance events — none of it gets caught. The plant stops. The clock starts. We’ve been through this with engineers across power generation, petrochemical, and LNG facilities. The answer is always the same: get the right board, get it fast, get it installed correctly.

We stock the IS200VIB-HCAB in Xiamen and dispatch via DHL Express or FedEx International Priority within 24 hours of order confirmation. No waiting on OEM lead times. No sourcing delays. Just a verified, tested board at your door.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of IS200VIB-HCAB swap-outs in the field, here are the failure patterns and replacement pitfalls that catch engineers off guard:

Common Failure Signatures

• Fault Code L3VIBFLT / VIBHI: Vibration channel reading rail-high or stuck at zero. Before condemning the board, verify probe gap voltage at the terminal board (typically –10 VDC ±1 V for Bently Nevada-compatible probes). If gap voltage is correct and the fault persists after a controller reset, the IS200VIB-HCAB signal conditioning circuit has failed.
• Intermittent IONet Communication Loss: The board drops off the IONet scan list sporadically. This is almost always a failing FPGA or corrupted firmware flash — not a cable issue. Reseating the board may temporarily restore comms, but the board will fail again under thermal cycling.
• All Channels Reading Identical Values: A classic sign of a failed multiplexer on the analog front-end. The board is sampling one channel and broadcasting it across all inputs. Trip logic will not function correctly in this state.
• Board Powers Up but Fails Self-Test (LED Pattern: Red-Amber-Red): Internal RAM or EEPROM fault. The board cannot load its configuration from the Mark VI controller. Replacement is the only resolution — field repair of EEPROM is not supported.

Replacement Procedure — Key Steps

• Step 1 — Document Existing Configuration: Before pulling the board, use ToolboxST to export the I/O configuration for the VIB module. Record the IONet node address assigned to this slot. This is critical — the replacement board must be assigned the same node address during commissioning.
• Step 2 — Power Down the I/O Rack: The IS200VIB-HCAB is NOT hot-swappable in standard Mark VI configurations. Shut down the affected I/O rack section before extraction. Confirm with your site safety procedure — in TMR systems, one rack can be taken offline while the other two maintain protection.
• Step 3 — ESD Precautions: The VIB board’s analog front-end is sensitive to electrostatic discharge. Use a grounded wrist strap and ESD mat. Do not touch the probe input connector pins directly.
• Step 4 — Firmware Verification: After installing the replacement IS200VIB-HCAB, ToolboxST will attempt to download the firmware from the controller. Confirm the firmware version matches the existing boards in the rack. Mismatched firmware versions in a TMR rack will cause voting disagreements and nuisance trips.
• Step 5 — Channel Calibration Check: After the board comes online, verify each proximity probe channel reads the correct gap voltage and vibration amplitude against a known-good reference (portable vibration analyzer or adjacent rack channel). Do not return the turbine to service until all channels are validated.
• Step 6 — IONet Node Address: If the replacement board does not automatically inherit the node address from the slot, manually assign it via ToolboxST hardware configuration. A node address conflict will prevent the board from communicating and will generate a persistent IONet fault.

Suffix Variant Compatibility Note: The IS200VIB-HCAB suffix indicates a specific hardware revision. Suffix variants (H1C, H1D, HCAB) may carry different FPGA versions. Always cross-reference the full part number on the board label against your Mark VI BOM before installation. Contact us — we can confirm compatibility before shipment.

Reliability in Harsh Conditions

The IS200VIB-HCAB was designed for environments that would destroy consumer-grade electronics. GE’s Mark VI I/O boards are qualified to operate continuously in the following conditions — and our stock is verified to meet these specifications:

• Vibration Resistance: Qualified to IEC 60068-2-6 sinusoidal vibration profiles. The board’s VME form factor and card-edge connector system are mechanically robust against the continuous low-frequency vibration present in turbine enclosures and compressor buildings.
• Thermal Cycling: Designed for 0 °C to 60 °C operating range with tolerance for rapid thermal transitions during turbine start-stop cycles. The analog front-end components are selected for low thermal drift to maintain measurement accuracy across the full temperature range.
• Humidity and Condensation: Conformal coating on the PCB provides protection against humidity ingress in tropical and coastal installations. Units in our stock are inspected for coating integrity before dispatch.
• EMI/RFI Immunity: The IONet interface and analog input circuits are shielded against electromagnetic interference from high-voltage switchgear and variable frequency drives commonly co-located in turbine control buildings.
• Dust and Particulate: The enclosed VME rack provides IP-rated protection. The board itself is designed for operation in environments with airborne particulate typical of gas turbine inlet filtration areas.

Every unit we ship has been bench-tested under powered conditions with simulated probe inputs to verify that the analog signal chain, IONet communication, and self-test routines all pass before the board leaves our facility.

Global Express Logistics

We operate from our Xiamen warehouse with direct access to DHL Express and FedEx International Priority services. Here is exactly how your order moves from our shelf to your site:

• Order Confirmation → Same-Day Packing: Orders confirmed before 14:00 CST are packed and labeled the same day. The IS200VIB-HCAB is wrapped in anti-static shielding, cushioned with high-density foam, and double-boxed in a reinforced export carton.
• Export Documentation: We prepare the commercial invoice, packing list, and certificate of origin. HS Code 8537.10 is applied for customs clearance. For customers requiring an EUC (End User Certificate) or import permit support, our logistics team handles the paperwork.
• DHL Express / FedEx International Priority: Transit times from Xiamen: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, North America 3–5 days, South America / Africa 4–6 days. Tracking number provided within 2 hours of dispatch.
• Customs Clearance Support: We declare accurate commercial values and provide all documentation required for smooth customs clearance. For destinations with import duty complexity (India, Brazil, Indonesia), we advise on DAP vs. DDP shipping terms upfront.
• Emergency Courier Options: For genuine plant-down emergencies, we can arrange hand-carry courier service to select destinations. Contact us via WhatsApp for same-day assessment of emergency logistics options.

We have shipped Mark VI boards to power plants in Saudi Arabia, Malaysia, India, the Philippines, Germany, and the United States. The process is routine for us — and we know how to get a board through customs without delays.
