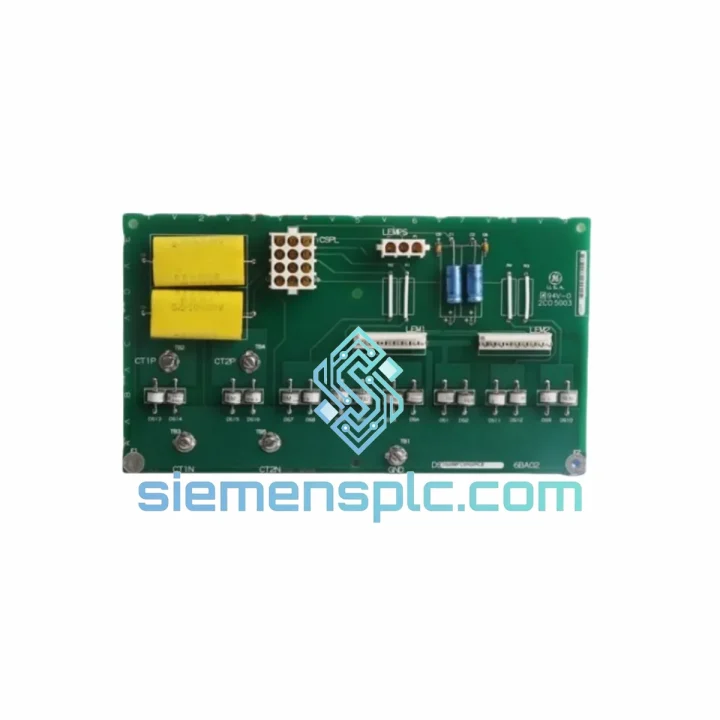

GE IS200VSV0H1BED Vibration Sensor Voting Board

IS200VSV0H1BED — Cut Your Turbine Downtime Before It Cuts Your Revenue

A tripped gas turbine doesn’t care about your procurement lead time. When the Mark VI throws a VSV board fault at 02:00 and your operations team is staring at a black HMI screen, the question isn’t which supplier — it’s who has it right now. We do. The IS200VSV0H1BED is physically on the shelf in our Xiamen warehouse, inspected and ready for same-day dispatch. Not a broker listing. Not a consignment promise. Stock we own, tested before it ships.

Lost generation on a 200 MW combined-cycle unit runs north of $10,000 per hour. A three-day wait for a board that’s sitting in a warehouse 8,000 km away is not a supply chain problem — it’s a decision problem. Make the call now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault signatures that point directly at the IS200VSV0H1BED:

• L3DIAG_VSV or IOPACK_FAULT alarms isolated to a single control path (R, S, or T) in ToolboxST while the other two paths remain healthy — textbook single-board failure in a TMR triplet.
• Vibration channel stuck at 0 mils or pegged at full-scale with no correlation to actual machine vibration. The signal conditioning stage on the board has failed; the field wiring and probe are fine.
• IONet communication loss alarm for one VSV slot while every adjacent I/O board on the same rack stays online. The fault is the board’s IONet transceiver, not the backplane or cable.
• Intermittent 2oo3 voting disagreements on vibration channels during steady-state load — particularly after a cold start or a hot shutdown. Thermal stress on aging solder joints is the usual culprit.

Before you pull the board — work through this list:

1. Isolate the fault layer. In ToolboxST I/O diagnostics, confirm the fault is board-level. Check terminal block continuity on the affected vibration channels first. A shorted or open proximity probe cable produces identical HMI symptoms to a dead VSV board. Don’t swap hardware until you’ve ruled out field wiring.
2. Verify hardware revision before ordering. The suffix H1BED is not cosmetic. Mixing H1A and H1B revisions within a TMR triplet is unsupported and will generate persistent voting disagreements after replacement. Read the label on the board you’re pulling before you confirm the order.
3. No address configuration needed. The IS200VSV0H1BED uses automatic slot addressing via the Mark VI backplane. Rack position determines I/O address. There are no DIP switches, jumpers, or rotary selectors to set on the replacement board — seat it and it self-identifies.
4. Firmware: same-revision swap requires no reflash. Firmware is embedded. A direct H1BED-to-H1BED replacement does not require a ToolboxST download. Cross-revision swaps (H1A to H1B) may require an I/O configuration download — check GE Mark VI release notes for your installed software version before proceeding.
5. TMR hot-swap procedure. In a healthy TMR system with two fault-free paths remaining, the VSV board can be replaced online without a turbine trip. Confirm path health before pulling the failed board. After reinsertion, allow 60–90 seconds for IONet synchronization before acknowledging alarms. Do not rush this step — premature alarm reset before sync completes can mask a seating issue.
6. Simplex systems: plan the outage. No redundancy exists to absorb the gap. Coordinate with operations and schedule a maintenance window before touching the board in a Simplex Mark VI configuration.
7. Post-swap verification. Force a vibration channel diagnostic from ToolboxST. Confirm all channels return valid mV/mil readings within the expected range for your probe type — typically -24 VDC bias, Bently Nevada 3300-series compatible. A channel that reads correctly in diagnostics but drifts under load indicates a marginal connection at the terminal block, not a board problem.

Reliability in Harsh Conditions

Turbine control rooms are not server rooms. The IS200VSV0H1BED was engineered for the actual environment it operates in — not a controlled lab. Here is what it handles without degradation:

Mechanical vibration: PCB layout and component mounting comply with IEC 60068-2-6 sinusoidal vibration requirements. In turbine enclosures where structural vibration from the machine propagates directly into the control cabinet, solder joint integrity and connector retention are design constraints, not afterthoughts. This board was built to that standard.

Thermal cycling: Gas turbines start cold and run at sustained high load. Control electronics cycle repeatedly across the full 0–60 °C operating range. Electrolytic capacitors — the most common age-related failure point in any control board — are rated for extended service life at elevated junction temperatures. Every unit we ship is inspected for capacitor bulge, electrolyte leakage, and thermal stress cracking on solder joints before it leaves the warehouse.

Humidity and salt contamination: Coastal installations in Southeast Asia, the Arabian Gulf, and offshore platforms expose control hardware to sustained high humidity and airborne salt aerosol. The IS200VSV0H1BED’s conformal coating — applied per GE manufacturing specification — provides a continuous barrier against moisture ingress and conductive surface contamination. Boards with coating damage, pinholes, or delamination are rejected from our inventory.

Electromagnetic interference: Turbine halls are electrically hostile. High-current bus bars, variable frequency drives, and excitation systems generate broadband EMI across the full frequency spectrum. The VSV board’s signal conditioning circuitry includes dedicated filtering stages to reject common-mode noise on proximity probe cables, which routinely run 20–40 meters through cable trays shared with medium-voltage power wiring. The board does not require additional shielding or filtering in a standard Mark VI installation.

Every unit shipped from our Xiamen facility has passed a functional power-on test and IONet communication verification. Boards that show any indication of thermal damage, component stress, or communication instability are removed from inventory and not offered for sale. What you receive is what we would install on our own equipment.

Global Express Logistics

Xiamen Gaoqi International Airport is a tier-1 DHL Express and FedEx International Priority gateway. Emergency industrial shipments move through this hub daily. Here is exactly how your order flows:

• Order confirmed before 14:00 CST: Same-day dispatch. The board leaves Xiamen that afternoon on the first available express flight.
• Transit benchmarks: Southeast Asia 1–2 business days; Middle East 2–3 days; Europe 3–4 days; North America 3–5 days. Carrier selected at booking based on confirmed transit time to your specific destination, not published averages.
• Export documentation included: Commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10) prepared and packed with every shipment. No customs clearance delays caused by missing paperwork.
• ESD-safe packaging: Anti-static bag, foam-lined outer carton, humidity indicator card. The board arrives in the same electrical and physical condition it left our warehouse.
• Tracking within 2 hours of dispatch: AWB number sent to your email immediately after carrier pickup confirmation. Real-time tracking link included.
• Hard-deadline support: If you have a maintenance window, a regulatory inspection deadline, or a contractual uptime commitment, state it when you contact us. We will coordinate directly with the carrier to prioritize your shipment and provide proactive status updates until delivery is confirmed.

We have executed emergency shipments to power generation facilities in Indonesia, Malaysia, Saudi Arabia, the UAE, Germany, the United Kingdom, Australia, and the United States. The logistics infrastructure is operational. The board is in stock. Contact us now and we will have it moving before the end of the business day.
