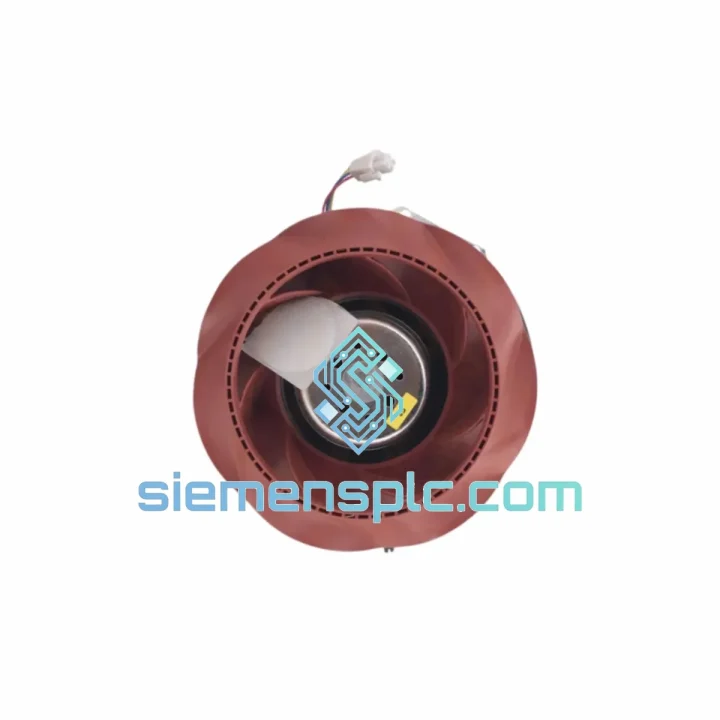

KUKA 00-176-743 Industrial Cooling Fan – KRC Control Cabinet

KUKA 00-176-743: Forced-Air Thermal Management Fan for KRC Robot Control Cabinets

The KUKA 00-176-743 is the OEM-designated main cooling fan assembly for the KRC series robot control cabinet platform. Within a KRC cabinet, servo drives, power supply modules, and the KPC (controller PC) generate continuous thermal loads that must be actively dissipated to maintain component junction temperatures within rated limits. The 00-176-743 provides the primary forced-air convection path — drawing ambient air through filtered intake panels, directing it across heat-generating components, and exhausting it through the cabinet’s rear or top vent array. Without a correctly functioning fan at this position, thermal resistance across the drive bay rises rapidly, triggering KSS overtemperature fault sequences and initiating controlled shutdowns that interrupt production cycles.

This unit is a direct OEM part-number match, requiring no mechanical adaptation, connector re-pinning, or firmware parameter adjustment upon installation. It integrates natively into the KRC thermal monitoring circuit, which continuously samples fan tachometer feedback and compares it against a programmed RPM threshold. A speed drop below that threshold — caused by bearing wear, winding degradation, or blade fouling — generates a cabinet temperature warning and, if unresolved, escalates to a hard fault. Replacing the fan with the 00-176-743 restores the tachometer signal integrity and eliminates the fault condition at the hardware level.

Stocking this part as a critical spare reduces mean time to repair (MTTR) from multi-day procurement lead times to a sub-hour swap, a measurable impact on overall equipment effectiveness (OEE) in high-utilization robot cells.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The thermal architecture of the KRC control cabinet is built around a single primary airflow channel managed by the 00-176-743 fan. Understanding the hardware logic clarifies why this specific component is non-substitutable without engineering validation.

Airflow Path & Pressure Drop: The fan is positioned to create a defined static pressure differential across the cabinet interior. This pressure differential forces air through the servo drive heatsink fins and across the power supply module. Any fan with a lower static pressure rating — even if physically similar — will produce insufficient airflow velocity through the restricted heatsink channels, resulting in localized hot spots that do not register as a cabinet-level fault until thermal damage has already occurred at the component level.

Tachometer Feedback Loop: The KRC controller’s thermal management module reads the fan’s tachometer pulse output at a defined polling interval. The firmware compares the measured RPM against a stored minimum threshold. This is a closed-loop monitoring architecture: the fan is not simply powered on and assumed to be running — its actual rotational speed is verified continuously. The 00-176-743’s tachometer output is calibrated to this threshold, ensuring the monitoring loop operates within its designed detection window.

EMC Design Considerations: In a KRC cabinet, the fan motor operates in close proximity to servo drive PWM switching stages, which generate broadband conducted and radiated EMI. The OEM fan assembly incorporates motor winding suppression and shielded cabling to prevent tachometer signal corruption from drive-induced noise. A non-OEM fan without equivalent EMC suppression can introduce tachometer signal jitter, causing spurious RPM fault events even when the fan is mechanically functional — a diagnostic failure mode that is difficult to isolate without oscilloscope-level signal analysis.

Bearing Specification & MTBF: The fan uses a sealed bearing assembly rated for the thermal and vibration environment of an industrial robot controller. Robot cells in automotive and heavy manufacturing operate at high duty cycles with significant floor vibration transmitted through the cabinet base. Bearing fatigue is the primary failure mode; the OEM bearing specification accounts for this load profile. Replacement with the 00-176-743 resets the bearing wear state and restores the designed MTBF for the cooling subsystem.

System Integration Benefits

• Zero-Modification Installation: OEM part number, connector pinout, mounting footprint, and airflow direction are identical to the original — no mechanical or electrical adaptation is required, eliminating installation error risk.
• Deterministic Fault Clearance: Because the 00-176-743 restores the tachometer signal to within the KRC monitoring circuit’s expected range, thermal fault codes clear immediately upon installation without requiring parameter adjustments or controller reboots beyond standard restart procedure.
• Thermal Headroom Restoration: Replacing a degraded fan restores the designed airflow volume (CFM) across servo drive heatsinks, recovering the original thermal margin between operating temperature and component derating thresholds — directly reducing the probability of drive IGBT thermal derating events.
• Diagnostic Transparency: The tachometer feedback integration means the KRC controller can detect fan degradation before complete failure occurs. A new 00-176-743 ensures this early-warning capability functions as designed, supporting predictive maintenance programs rather than reactive repair.
• MTTR Reduction: With a stocked 00-176-743, a thermal shutdown fault caused by fan failure can be resolved in under one hour. Without a stocked spare, procurement lead times of 3–10 business days are typical, translating directly to lost production time.
• OEE Impact: In a robot cell running two shifts at 85% utilization, a single unplanned thermal shutdown event lasting 8 hours represents a measurable OEE loss. Proactive spare stocking of the 00-176-743 converts this from an unplanned event to a planned maintenance task.
• Compatibility Across KRC Variants: The 00-176-743 is applicable across KRC2 and KRC4 cabinet generations, allowing maintenance teams to standardize on a single spare part number across mixed-generation robot fleets — simplifying MRO inventory management.
• Warranty-Backed Reliability: Each unit ships with a 12-month warranty, providing a defined reliability guarantee period that aligns with annual preventive maintenance cycles common in ISO-certified manufacturing facilities.

Quality Assurance & Global Logistics

Every KUKA 00-176-743 unit supplied by siemensplc.com is sourced through verified OEM and authorized distributor supply channels. Prior to shipment, each unit undergoes visual inspection for physical integrity, dimensional verification of the mounting interface, and electrical continuity check of the motor winding and tachometer circuit. Batch documentation and part number traceability records are available upon request to support MRO audit requirements in ISO 9001 and IATF 16949 certified facilities.

Packaging uses anti-static, shock-absorbing materials with OEM part number labeling to ensure correct identification at goods receipt. Commercial invoice, packing list, and inspection report are included with every shipment as standard documentation.

Logistics operations are based in Xiamen, China, with access to major international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard international transit times are 3–7 business days to most destinations in Europe, North America, Southeast Asia, and the Middle East. Expedited same-day dispatch is available for orders confirmed before the daily cutoff. Export documentation, including HS code classification and commercial invoice preparation, is handled in-house to minimize customs clearance delays.
