KUKA 00-196-482 Robot Cable – KR Series

KUKA 00-196-482 Robot Cable Assembly: Structural Role in High-Cycle Robotic Motion Control

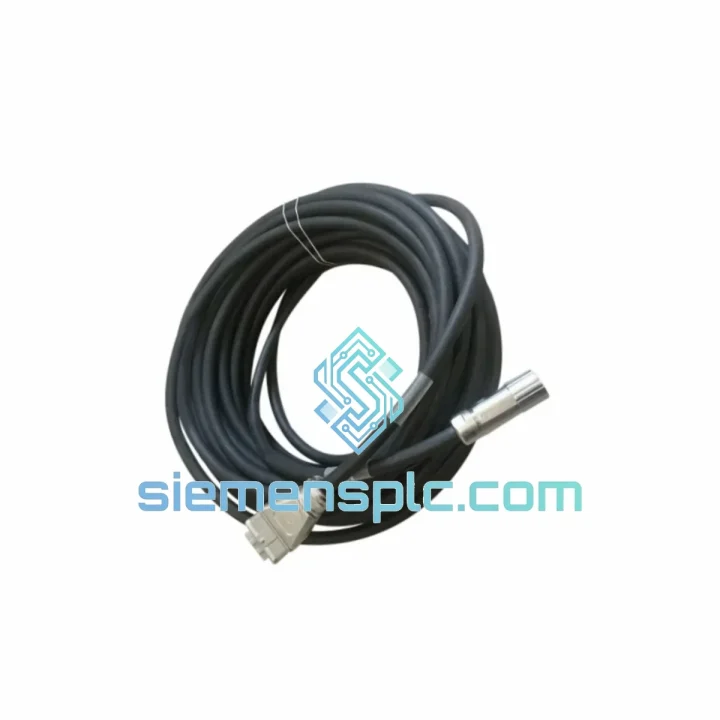

The KUKA 00-196-482 is an OEM-grade robot cable assembly engineered for deployment within KUKA KR-series industrial manipulators. Its primary function is to maintain uninterrupted electrical continuity across dynamic joint axes during high-frequency, multi-axis motion sequences. Unlike static industrial wiring, this cable must sustain mechanical integrity through millions of flex cycles while simultaneously preserving signal fidelity across both power and data conductors. The assembly is routed through the robot’s internal cable management channel — a conduit system designed to constrain bending radius and prevent torsional overload at each axis transition point.

In a closed-loop servo control architecture, the cable’s role extends beyond simple power delivery. It carries encoder feedback signals from the axis motor back to the KRC controller, forming the real-time position feedback path that the motion planner depends on for trajectory interpolation. Any degradation in conductor resistance, shielding continuity, or connector contact integrity directly impacts the servo loop’s ability to maintain positional accuracy within the ±0.05 mm repeatability specification typical of KR-series robots. This makes the 00-196-482 a safety-critical component in any production cell where dimensional tolerance is a process requirement.

The cable assembly is pre-terminated with KUKA-specified connectors on both ends, eliminating field crimping and the associated risk of impedance mismatch or mechanical weakness at the termination point. Each conductor is color-coded and sequenced to match the robot’s internal wiring diagram, enabling maintenance technicians to execute replacement procedures without reference to external documentation in time-critical downtime scenarios.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 00-196-482 cable assembly addresses three distinct failure modes that are endemic to robot cable installations in high-duty-cycle environments: conductor fatigue fracture, shield discontinuity, and connector fretting corrosion.

Conductor Fatigue Architecture: The cable uses a fine-stranded, bunched conductor construction with individual strand diameters in the 0.05–0.10 mm range. This geometry distributes bending stress across a larger cross-sectional area compared to solid or coarse-stranded conductors, extending fatigue life by reducing peak strain per strand at the neutral axis. The lay length of each conductor bundle is optimized to prevent differential elongation between inner and outer strands during torsional loading — a failure mode that manifests as intermittent open circuits in cables not designed for combined flex-torsion duty.

EMC Shielding Design: The braided copper shield provides a transfer impedance of <50 mΩ/m at 10 MHz, sufficient to attenuate the common-mode noise generated by the robot’s servo drives — typically switching at 4–16 kHz with harmonic content extending into the MHz range. The shield is terminated at both ends through low-impedance pigtail connections to the connector backshell, creating a Faraday enclosure that prevents capacitive coupling of drive noise into the encoder signal conductors. This is particularly relevant in multi-axis cells where adjacent drive cables run in parallel over distances exceeding 500 mm.

Connector Contact Integrity: The pre-terminated connectors use gold-plated contacts with a minimum plating thickness of 0.5 μm on signal pins, preventing the formation of insulating oxide layers that cause fretting corrosion under micro-vibration. The connector housing incorporates a positive locking mechanism that maintains a minimum contact normal force of 0.5 N across the full operating temperature range, preventing intermittent contact loss during thermal cycling between cold-start and steady-state operating temperatures.

Cable Management Compliance: The PUR outer jacket is formulated to resist hydraulic oil, cutting fluid, and cleaning agent exposure — the three most common chemical contaminants in machining and welding cell environments. The jacket’s Shore A hardness of approximately 85 provides sufficient abrasion resistance for contact with cable management chain links without requiring additional protective sleeving in standard installations.

System Integration Benefits

• Deterministic Feedback Path: Maintains encoder signal integrity at the KRC controller’s 12 kHz interpolation cycle rate, ensuring the motion planner receives position data without latency introduced by signal degradation or retransmission.
• Zero-Rework Installation: Pre-terminated OEM connectors eliminate field crimping, reducing mean time to repair (MTTR) in cable replacement scenarios from 4–6 hours to under 60 minutes for a trained technician.
• Diagnostic Transparency: The KRC controller’s cable monitoring function can detect incremental increases in conductor resistance caused by early-stage fatigue damage, enabling predictive replacement before a hard failure occurs during production.
• Axis-Specific Routing Compliance: Cable geometry and stiffness are matched to the specific axis routing path within the robot arm, preventing excess slack accumulation or tension buildup that would otherwise accelerate wear at the cable entry point.
• Thermal Stability: The PUR jacket maintains dimensional stability across the full operating temperature range, preventing jacket shrinkage that could induce mechanical stress on internal conductors during cold-start cycles in unheated facilities.
• Chemical Resistance: Validated resistance to ISO 6945-classified industrial fluids, including mineral-based hydraulic oils and water-miscible cutting fluids at concentrations up to 10%, without jacket swelling or plasticizer migration that would reduce flex life.
• Warranty Compliance: Use of OEM part number 00-196-482 preserves the robot’s KUKA service warranty and maintains compliance with insurance and safety certification requirements that specify OEM replacement parts for safety-critical wiring.
• Inventory Standardization: A single part number covers multiple KR-series models within the compatible range, reducing the number of unique SKUs required in a spare parts inventory for multi-robot installations.

Quality Assurance & Global Logistics

Every unit of KUKA 00-196-482 supplied through siemensplc.com is sourced from KUKA’s authorized distribution network or verified surplus channels with full traceability documentation. Prior to dispatch, each cable assembly undergoes a physical inspection protocol covering connector seating, jacket integrity, and label verification against the KUKA part number database. Units exhibiting any evidence of prior installation, connector damage, or jacket abrasion are rejected at intake and not offered for sale.

Logistics operations are managed from Xiamen, China — a port city with direct access to major international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard dispatch lead time is 1–3 business days from order confirmation. Express shipment to destinations in Europe, North America, Southeast Asia, and the Middle East typically achieves door-to-door delivery within 3–7 business days. Full customs documentation, including commercial invoice, packing list, and certificate of origin, is prepared for every international shipment to minimize clearance delays. For customers in regions with specific import requirements, HS code 8544.42 is applied to robot cable assemblies to ensure correct tariff classification.

Volume orders for MRO programs and OEM integrators are accommodated with dedicated account management, consolidated shipment scheduling, and optional consignment stock arrangements for high-volume customers. All transactions are backed by a 12-month warranty against manufacturing defects, with replacement or credit issued upon return of the defective unit and completion of a brief failure analysis report.
