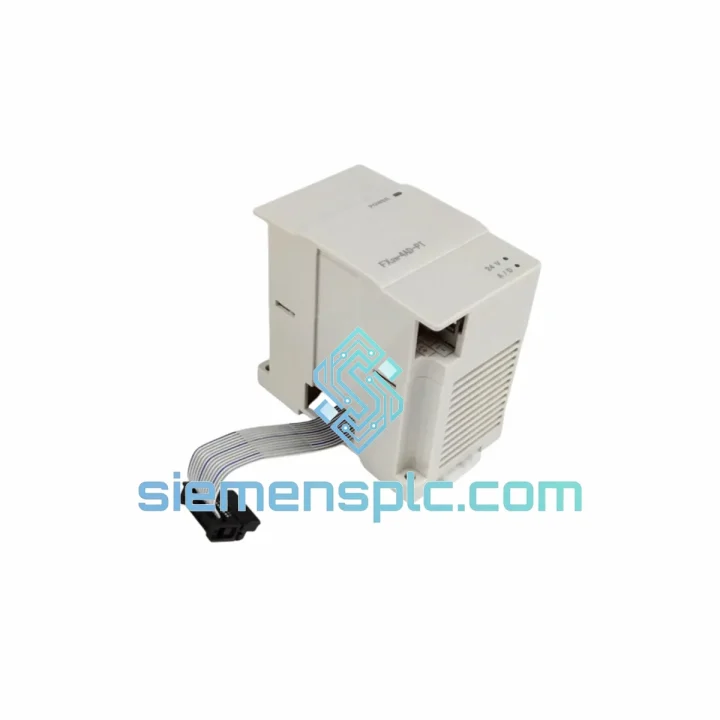

Mitsubishi FX2N-4AD-PT PLC Analog Input Module

FX2N-4AD-PT Down? Every Minute of Downtime Costs You Money — We Ship Today

A failed FX2N-4AD-PT doesn’t just kill one temperature loop — it can cascade into a full process shutdown. Pasteurization lines trip. Injection mold barrels go uncontrolled. Reactor vessels lose supervision. We’ve seen it all. That’s why we keep verified original Mitsubishi FX2N-4AD-PT modules on the shelf in Xiamen, ready to leave the warehouse the same day you call. No waiting on distributor lead times. No grey-market gambles. Just a confirmed-original module in your hands within 24–72 hours, anywhere on the planet.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on FX2N systems taught me that the FX2N-4AD-PT fails in predictable ways. Here’s what to check before you condemn the module — and what to configure the moment the new one arrives.

Common Fault Codes & Root Causes

• BFM #29 Error Flag Bit 0 set (CH1 hardware error) — Almost always a broken RTD lead or reversed wiring on channel 1. Verify 3-wire continuity before swapping the module. Resistance between V+ and I+ should read the sensor’s nominal Ω at ambient temperature.
• All channels reading −32768 (underflow) — The module is not receiving 24 VDC from the extension bus. Check the FX2N base unit’s 24 V service output current budget; each special function module draws 55 mA. Overloaded bases drop the extension rail voltage silently.
• Erratic readings on one channel, others stable — Ground loop. The FX2N-4AD-PT uses a common COM terminal per channel pair. Run a dedicated shield drain to the panel earth at one end only. Do not ground both ends of the RTD cable shield.
• FROM instruction returns stale data — Scan time mismatch. The module’s conversion cycle is 60 ms for all 4 channels. If your PLC scan is faster than 60 ms, you’re reading the same buffer twice. Add a 100 ms timer before the FROM read in your ladder, or use interrupt-driven reads.
• Module LED solid red after power cycle — Hardware fault latch. Power down the entire FX2N base, wait 30 seconds, and restore. If the red LED persists after a cold boot with no RTD sensors connected, the module’s internal ADC has failed — replacement is the only fix.

Replacement Configuration Checklist

• No DIP switches on this module — Unlike the FX2N-4AD (voltage/current), the FX2N-4AD-PT has no hardware address switches. The module number (0–7) is determined automatically by its physical slot position on the FX2N bus, counted left to right from the CPU. Confirm the slot number matches your FROM/TO instruction’s unit number argument.
• BFM #0 — Mode Register — Write H0000 for PT100 on all 4 channels (default). Write H1111 for PT1000 on all 4 channels. Mixed sensor types require a nibble-by-nibble write (e.g., H0011 = CH1/CH2 PT1000, CH3/CH4 PT100). Confirm this matches your original program before going live.
• BFM #1–#4 — Average Count — Default is 8 samples. If your process has high electrical noise (VFD-heavy environment), increase to 16 or 32 via a TO instruction. This adds latency but dramatically reduces noise-induced spikes.
• Firmware — The FX2N-4AD-PT has no user-flashable firmware. No firmware matching is required. Any genuine FX2N-4AD-PT is a drop-in replacement regardless of manufacture date.
• Re-zero after installation — After wiring, let the module warm up for 15 minutes before comparing readings against a calibrated reference. The internal reference circuit stabilizes within this window.

Reliability in Harsh Conditions

The FX2N-4AD-PT was engineered for the factory floor, not a lab bench. Mitsubishi Electric subjects every FX2N special function module to a qualification regime that mirrors real-world abuse:

• Vibration — Tested to IEC 60068-2-6: 10–57 Hz at 0.075 mm amplitude, 57–150 Hz at 9.8 m/s². This covers the resonance bands generated by most industrial compressors, pumps, and conveyor drives mounted on the same steel frame as the control panel.
• Thermal Cycling — Qualified across the full 0°C to +55°C operating envelope with repeated cold-start cycles. The internal voltage reference and ADC maintain ±0.5°C accuracy across this range without recalibration.
• Humidity & Condensation — Rated to 95% RH non-condensing. The conformal coating on the PCB provides a barrier against moisture ingress in high-humidity environments such as food processing washdown areas and coastal installations.
• EMC Immunity — CE-marked under EMC Directive 2014/30/EU. Conducted and radiated immunity tested to EN 61000-4 series. In VFD-dense panels, we recommend routing RTD cables in a separate conduit from power wiring and maintaining at least 100 mm separation — not because the module is weak, but because physics demands it.
• MTBF — Mitsubishi Electric publishes MTBF data exceeding 100,000 hours for the FX2N special function module family under rated conditions. In practice, field units from the early 2000s are still running in production today — the failure mode is almost always external (sensor, wiring, power supply) rather than the module itself.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here’s exactly how your order moves:

• Order Confirmation → Same-Day Pick & Pack — Orders confirmed before 15:00 CST are picked, inspected, and packed the same business day. Each module is wrapped in anti-static foam, sealed in a moisture-barrier bag with a silica gel desiccant, and placed in a double-wall carton.
• Export Documentation — Commercial invoice, packing list, and HS code declaration (HS 8537.10) are prepared in parallel with packing. For customers requiring a Certificate of Origin or specific customs valuation documentation, notify us at order time — no delays.
• Carrier Selection — DHL Express Worldwide is our default for most destinations (transit: 1–3 business days to Europe, North America, Southeast Asia). FedEx International Priority is available on request. For Middle East and South Asian destinations, we route via FedEx where DHL transit times are longer.
• Tracking — A waybill number is emailed within 2 hours of handover to the carrier. You can track in real time via the carrier’s portal. We monitor all shipments and proactively contact you if a customs hold or delay is flagged.
• Customs Clearance — We declare accurate values and provide full documentation. For destinations with import duty exemptions on industrial automation components, we can provide supporting technical datasheets to assist your customs broker.
• Typical Door-to-Door Transit Times — Europe: 2–4 business days | North America: 2–3 business days | Southeast Asia: 1–2 business days | Middle East: 3–5 business days | South America: 4–7 business days.

If your line is down right now, call or WhatsApp us directly. We will confirm stock, generate a proforma invoice, and have a tracking number in your inbox before your next shift starts.
