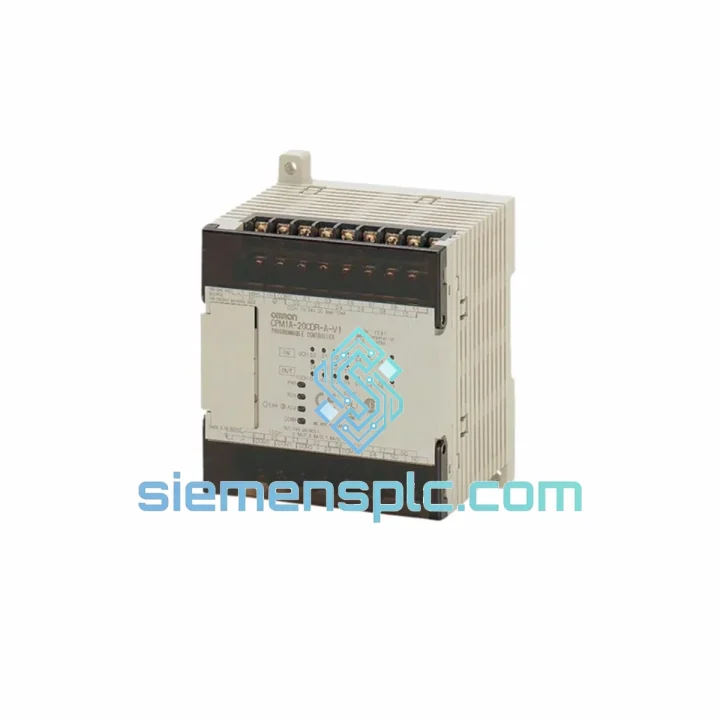

OMRON CPM1A-20CDR-A-V1 PLC Module – CPM1A Series

OMRON CPM1A-20CDR-A-V1 — 20-Point Relay Output Compact PLC for Deterministic Discrete Control

The CPM1A-20CDR-A-V1 is a fixed-configuration programmable logic controller from OMRON’s CPM1A series, engineered for discrete automation tasks that demand relay-grade output switching, wide-range AC power acceptance, and a compact DIN-rail footprint. With 12 DC sink/source inputs and 8 mechanical relay outputs driven by a 100–240 VAC supply, this unit occupies a well-defined position in the control hierarchy: it handles deterministic sequence logic at the field level without the overhead of a modular rack system. The V1 hardware suffix identifies a board-level revision that addresses contact bounce characteristics on the relay output stage — a detail relevant to procurement teams managing spare-part interchangeability across installed base equipment.

At its core, the CPM1A-20CDR-A-V1 executes ladder diagram instructions from a 2,048-step program memory using a fixed scan cycle. The CPU processes all I/O in a single synchronous sweep: input refresh → program execution → output refresh. This architecture guarantees that output state changes are committed within one scan period, making response latency predictable and bounded — a property that relay-output PLCs in this class typically achieve at 0.72 ms per 1,000 instructions for basic boolean operations. The 1,024-word data memory area supports timer, counter, and holding relay allocations sufficient for the majority of standalone machine control applications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CPM1A-20CDR-A-V1 implements a single-chip CPU architecture where the processor, program memory (EEPROM-backed), and I/O interface logic are integrated on a unified substrate. This design eliminates the inter-board communication latency inherent in modular rack architectures, resulting in a deterministic scan cycle that does not vary with backplane arbitration delays.

Input Isolation Architecture: Each of the 12 digital inputs is galvanically isolated via photocoupler (optocoupler) devices rated at a minimum 1,500 VAC isolation voltage between the field wiring and the CPU logic domain. The photocoupler response time is specified at ≤ 1.5 ms (ON) and ≤ 1.5 ms (OFF) under standard conditions, which defines the minimum detectable pulse width for input signals. This isolation barrier prevents ground loop currents from field devices — particularly inductive sensors and proximity switches — from corrupting the CPU’s 5V logic rail.

Relay Output Stage: The 8 relay outputs use independent SPST-NO contacts with separate COM terminals grouped in two banks (outputs 00–03 and 04–07). This grouping allows mixed-voltage loads — for example, 24 VDC solenoids on one bank and 120 VAC pilot lights on another — without cross-contamination between voltage domains. Each relay coil is driven by a dedicated transistor driver on the output PCB, ensuring that coil energization is controlled by the CPU’s output latch register with no shared-driver contention.

EMC Design: The unit’s PCB layout incorporates ground plane segmentation between the AC power input section and the DC logic section, with ferrite bead filtering on the internal DC-DC converter output. The relay contacts include RC snubber networks on the output PCB to suppress contact arc energy, reducing radiated EMI during inductive load switching. The enclosure uses a conductive plastic housing with internal shielding planes referenced to protective earth, providing attenuation of externally coupled electromagnetic fields in the 150 kHz–30 MHz range consistent with EN 61000-4-3 Class A industrial immunity requirements.

Memory Retention: Program memory is stored in EEPROM, which retains data without battery backup for a minimum of 10 years under standard storage conditions. The DM (Data Memory) area and HR (Holding Relay) area are backed by a supercapacitor that maintains retention for approximately 20 days at 25°C after power loss — a design choice that eliminates battery replacement as a maintenance task while providing adequate retention for most machine restart scenarios.

System Integration Benefits

• Synchronous I/O Refresh: The fixed scan architecture ensures all input states are sampled at the start of each scan and all output states are committed at the end, eliminating mid-scan I/O inconsistencies that can occur in interrupt-driven systems. This makes timing analysis of control logic straightforward and auditable.
• Sink/Source Input Flexibility: The dual sink/source input configuration allows direct connection to both NPN (current-sinking) and PNP (current-sourcing) field sensors without rewiring or adding external interface relays, reducing panel wiring complexity in mixed-sensor environments.
• Wide AC Supply Range: The 100–240 VAC power supply accepts global mains voltages without manual tap selection, enabling the same hardware configuration to be deployed in facilities operating on 110V (Americas) or 220–240V (Europe, Asia) infrastructure.
• Expansion Scalability: Up to three CPM1A-series expansion I/O units can be connected via the right-side expansion connector, extending the system to a maximum of 60 I/O points. Expansion units are recognized automatically during power-up; no DIP switch or address configuration is required.
• Peripheral Port Diagnostics: The peripheral port provides real-time access to CPU status, program memory, and I/O force-set/reset functions via CX-Programmer. This enables online monitoring and fault diagnosis without interrupting the running program — a critical capability for maintenance personnel troubleshooting live production equipment.
• Instruction Set Diagnostic Transparency: The CPM1A instruction set includes dedicated error flag bits (ER, CY, EQ, N, OF, UF) that are updated each scan cycle. Control programs can read these flags to implement self-diagnostic routines that detect arithmetic overflow, illegal BCD data, or out-of-range timer values, surfacing faults to HMI displays without requiring external diagnostic hardware.
• Relay Output Load Versatility: Mechanical relay contacts switch both AC and DC loads across a wide voltage range (up to 250 VAC or 30 VDC), making the CPM1A-20CDR-A-V1 compatible with legacy panel components — contactors, solenoid valves, pilot lights, and alarm horns — that may not be compatible with transistor output PLCs requiring matched voltage levels.
• Battery-Free Program Retention: EEPROM-based program storage eliminates the risk of program loss due to battery failure — a common failure mode in older PLC installations. Maintenance teams do not need to track battery replacement intervals or carry spare batteries as part of the service kit.
• CX-One Software Ecosystem: Full compatibility with OMRON’s CX-One suite (CX-Programmer, CX-Designer, Network Configurator) provides a unified engineering environment for ladder programming, HMI screen design, and network configuration, reducing the number of software tools required in a mixed OMRON installation.
• Compact DIN-Rail Footprint: At 150 × 90 × 80 mm, the unit occupies minimal panel space, allowing installation in compact enclosures where larger modular PLCs cannot be accommodated. The DIN-rail clip mechanism supports both 35 mm standard and 35 mm deep-profile rails.

Quality Assurance & Global Logistics

Every CPM1A-20CDR-A-V1 unit supplied through siemensplc.com is sourced as genuine OMRON hardware, traceable to authorized distribution channels. Prior to dispatch, each unit undergoes a structured pre-shipment inspection protocol: visual examination of housing integrity and label authenticity, verification of firmware version via peripheral port query, and a functional power-on test confirming CPU RUN status, input response across all 12 channels, and relay coil energization across all 8 output channels. Units that do not pass all inspection criteria are quarantined and not shipped.

Logistics operations are managed from Xiamen, China — a major export hub with direct access to international express carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export packaging uses anti-static foam inserts within double-wall corrugated cartons, with desiccant packs included for shipments to high-humidity destinations. Typical transit times are 3–5 business days to Southeast Asia, 5–7 business days to Europe, and 5–8 business days to North America via express freight. Bulk orders qualify for sea freight consolidation with lead times coordinated to customer production schedules. All shipments include a commercial invoice, packing list, and certificate of conformance. A 12-month warranty against manufacturing defects is provided on all units, with advance replacement support available for qualified accounts.
