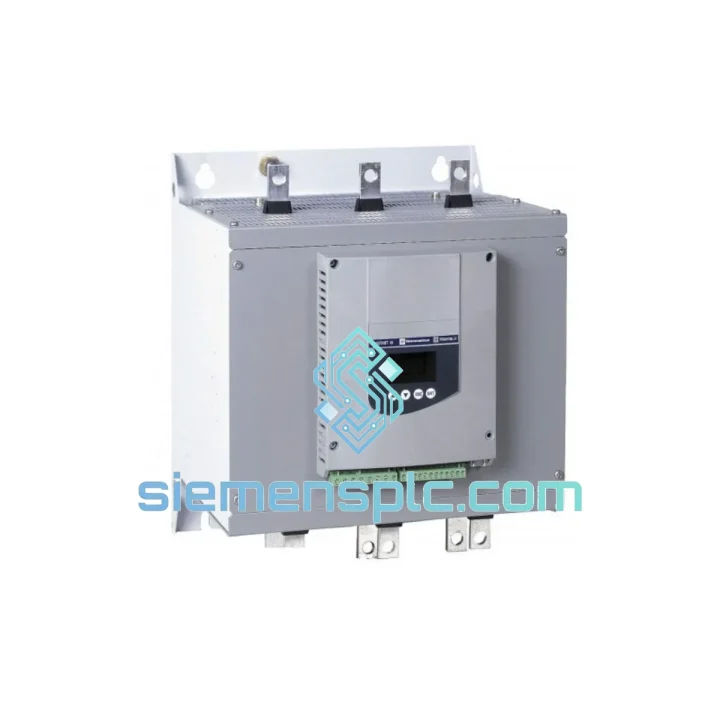

Schneider Electric ATS48C32Y Soft Starter – Altistart 48

Schneider Electric ATS48C32Y — Torque-Controlled Soft Starter for High-Power Industrial Motor Circuits

The ATS48C32Y is a 320 A rated AC soft starter from Schneider Electric’s Altistart 48 series, designed for three-phase squirrel-cage induction motors up to 160 kW at 400 VAC or 250 HP at 460 VAC. Unlike conventional voltage-ramp starters, the ATS48 platform employs a closed-loop torque control algorithm that continuously monitors and adjusts SCR firing angles to maintain a consistent acceleration torque profile — independent of supply voltage fluctuations or load inertia variation. This architecture makes the ATS48C32Y the preferred specification for pump, compressor, fan, and conveyor applications where mechanical shock during starting causes premature wear on couplings, gearboxes, and pipe fittings.

The unit integrates an internal bypass contactor that engages automatically once the motor reaches synchronous speed. At that point, the SCR stack is completely bypassed: line current flows directly through the contactor, eliminating thyristor conduction losses and the associated heat generation during steady-state operation. This design removes the need for an external bypass contactor in the motor control center (MCC), reducing panel footprint and wiring labor.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

At the core of the ATS48C32Y are six anti-parallel SCR pairs — one pair per phase half-cycle — arranged in a three-phase fully controlled bridge topology. The firing angle α of each SCR is modulated by the internal DSP-based control board at a resolution sufficient to produce smooth torque steps of less than 2% of nominal torque per control cycle. This granularity is what separates the ATS48 from simpler open-loop voltage ramp starters, which apply a fixed dV/dt ramp regardless of actual motor torque response.

EMC Design: The ATS48C32Y’s SCR gate drive circuits are optically isolated from the power stage, providing a minimum 4 kV isolation barrier between the control logic and the high-voltage switching elements. The control PCB is housed in a shielded sub-enclosure within the chassis, with filtered signal cables routed away from the SCR snubber network. This layout meets EN 61000-4-4 (electrical fast transient) and EN 61000-4-5 (surge immunity) requirements without external line filters in most standard industrial environments.

Thermal Management: The SCR stack is mounted on an extruded aluminum heatsink with forced-air cooling via an internal fan. A thermistor embedded in the heatsink feeds the thermal model continuously. If junction temperature approaches the derating threshold, the control board reduces the maximum allowable starting current automatically — a hardware-level protection that prevents SCR thermal runaway without tripping the unit unnecessarily.

Bypass Contactor Logic: The internal bypass contactor is driven by a dedicated relay output from the control board, not by a simple speed threshold. The control algorithm confirms that motor slip has fallen below a programmable threshold (default: 98% of synchronous speed) before issuing the bypass command. This prevents premature bypass engagement on high-inertia loads where the motor may appear to be at speed but has not yet reached thermal steady state.

Motor Protection Architecture: The ATS48C32Y implements a full thermal memory model that accumulates I²t across start/stop cycles. If the motor is restarted before the thermal image has decayed to a safe level, the starter inhibits the start command and displays a thermal fault code. Phase loss detection operates on a cycle-by-cycle basis using zero-crossing detection on all three phases — response time is under 100 ms, well within the protection requirements of IEC 60947-4-2.

System Integration Benefits

• Deterministic Torque Delivery: Closed-loop torque control ensures repeatable acceleration profiles across supply voltage variations of ±10%, eliminating the need to retune parameters when grid conditions change seasonally.
• Reduced Mechanical Stress: Controlled torque ramp reduces peak shaft torque during starting to a programmable limit, extending coupling, gearbox, and belt service intervals by eliminating the 6–8× nominal torque spike characteristic of direct-on-line starting.
• Water Hammer Elimination: The programmable soft stop deceleration ramp allows pump systems to decelerate over 1–60 seconds, preventing pressure transients in long pipeline runs without the capital cost of a variable frequency drive.
• Modbus RTU Integration: Native Modbus RTU on the RJ45 port allows the ATS48C32Y to be addressed directly from Schneider M340, M580, Modicon Quantum, or any third-party PLC/SCADA system using standard function codes FC03/FC06/FC16, enabling remote parameter read/write and real-time current monitoring.
• Diagnostic Transparency: The unit stores the last 8 fault events with timestamp, motor current at fault, and thermal state — accessible via the front keypad or Modbus register map. This data reduces mean time to repair (MTTR) by providing root-cause evidence without requiring an oscilloscope or external data logger.
• Global Voltage Compatibility: The 208–690 VAC supply range covers North American 480 V, European 400 V, and Asian 660 V grid standards from a single hardware SKU, simplifying spare parts inventory for multinational plant operators.
• MCC Space Reduction: Elimination of the external bypass contactor and separate overload relay (both functions are internal) reduces the required MCC cubicle depth by approximately 150 mm and eliminates 12–16 control wiring terminations per starter.
• Undercurrent (Dry-Run) Protection: A programmable undercurrent threshold detects pump cavitation or dry-run conditions — when motor current drops below the set point for a configurable time delay, the starter trips and logs the event, protecting pump mechanical seals from dry-run damage.

Quality Assurance & Global Logistics

Every ATS48C32Y unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full traceability to Schneider Electric’s authorized supply chain. Prior to dispatch from our Xiamen, China facility, each unit undergoes a structured pre-shipment inspection protocol:

• Visual inspection of housing integrity, terminal block condition, and nameplate label authenticity
• Serial number cross-reference against Schneider Electric’s product authentication database
• Power-on functional test confirming control board initialization and self-diagnostic pass
• Anti-static packaging with desiccant and humidity indicator card for moisture-sensitive long-haul shipments
• Original Schneider Electric documentation, including installation guide and declaration of conformity, included in every shipment

Shipments depart from Xiamen, China via DHL Express, FedEx International Priority, or sea freight (LCL/FCL) depending on order volume and destination. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10) — is prepared for all international orders. Typical air freight transit times: Southeast Asia 2–4 days; Europe 3–5 days; North America 4–6 days. All units carry a 12-month warranty from the date of dispatch covering manufacturing defects under normal operating conditions.
