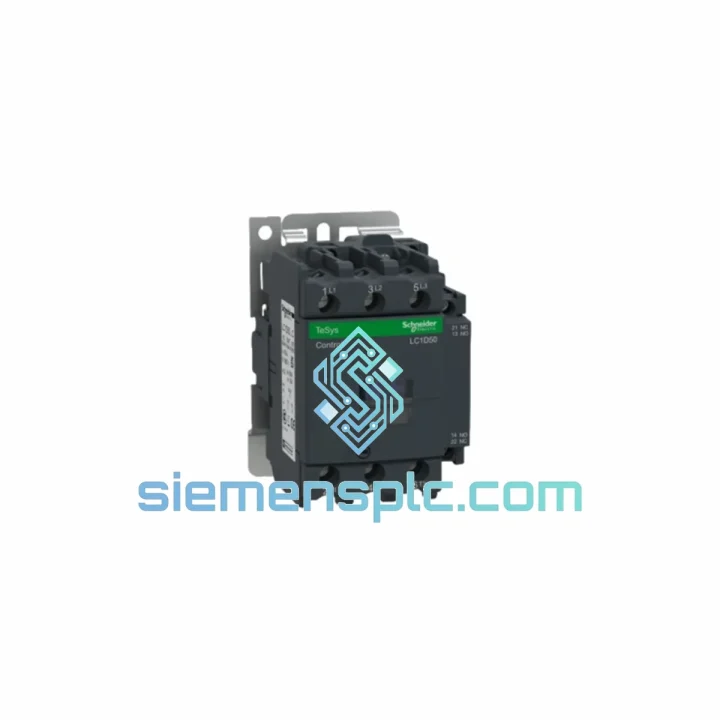

Schneider Electric LC1D50M7C — 50A Three-Pole AC Contactor in Motor Control Architecture

The LC1D50M7C occupies a well-defined position in low-voltage motor control circuits: it is the primary switching element between the power distribution bus and the motor terminal block. Rated at 50A (AC-3 duty, 400V) with a 220V AC / 50–60Hz coil, this three-pole contactor from Schneider Electric’s TeSys D platform handles the repetitive make-and-break demands of induction motor loads without thermal accumulation in the contact assembly. Its role is not passive — the contactor enforces the control logic boundary between the PLC output relay (or solid-state output) and the high-current motor circuit, providing galvanic isolation, arc suppression, and mechanical status feedback in a single compact device.

In a standard direct-on-line (DOL) starter topology, the LC1D50M7C sits downstream of the circuit breaker and upstream of the thermal overload relay (typically an LRD-series unit). The coil circuit is driven by the control voltage rail — in this case 220V AC — and the main contacts carry the full motor phase current. The integrated 1NO + 1NC auxiliary contact block provides hardwired feedback to the control panel or PLC input card, enabling run-state confirmation without additional auxiliary modules for basic configurations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The LC1D50M7C is built on the TeSys D platform’s double-break contact geometry. Each main pole contains two contact gaps in series, which halves the arc voltage per gap during interruption. At 50A AC-3 duty, the arc energy per operation is substantial; the double-break design distributes this energy across two arc chambers, reducing contact erosion per gap by approximately 40–50% compared to a single-break equivalent. The arc chambers use deion plates (arc splitter grids) to stretch and cool the arc column rapidly, achieving arc extinction within the first current zero crossing in most operating conditions.

The coil circuit incorporates a shading ring on the magnetic core pole faces. This is a short-circuited copper ring that creates a phase-shifted flux component, preventing the 100Hz flux pulsation (at 50Hz supply) from causing audible chatter or mechanical vibration in the armature. Without the shading ring, the magnetic attraction force would drop to zero twice per cycle, allowing the armature to bounce and generating both acoustic noise and accelerated wear on the contact faces. The M7C coil is wound for 220V AC nominal with a ±15% voltage tolerance band, maintaining reliable pull-in down to 187V AC and reliable drop-out above 66V AC (approximately 30% of Uc).

EMC performance is addressed at the coil terminal level. The rapid collapse of the coil’s magnetic field at de-energisation generates a voltage spike that can reach several kilovolts in an unsuppressed circuit. Schneider Electric offers LAD4RCU (RC snubber) and LAD4RCE (varistor) suppressor modules that mount directly onto the coil terminals, clamping the transient to safe levels for adjacent PLC I/O cards. For 220V AC coil circuits, the RC suppressor is generally preferred because it provides both voltage clamping and energy absorption without the degradation characteristic of varistors under repeated transient stress.

The auxiliary contact block (1NO + 1NC) uses a bridge-type contact mechanism mechanically linked to the main armature. The contact gap is maintained at a minimum of 1.5mm in the open state, satisfying IEC 60947-5-1 requirements for reliable isolation in control circuits up to 240V AC / 24V DC. The NC contact opens before the NO contact closes (break-before-make sequence), which is critical in interlocking circuits where simultaneous closure of both states would create a control logic fault.

System Integration Benefits

• Deterministic switching latency: The LC1D50M7C exhibits a consistent operate time of 20–30ms (coil energisation to main contact closure) across its rated voltage and temperature range, allowing PLC ladder logic timers to be set with confidence rather than empirical tuning.
• Modular auxiliary expansion: Up to four additional auxiliary contact blocks (LADN-series) can be side-mounted or front-mounted without tools, extending the feedback signal count to support multi-zone interlocking, remote status indication, and SCADA input cards simultaneously.
• Coordinated protection with GV2/GV3 breakers: The LC1D50M7C is type-2 coordination-tested with Schneider Electric GV2ME and GV3ME motor circuit breakers, meaning that under short-circuit conditions, neither the contactor nor the breaker sustains damage requiring replacement — only the breaker trips and resets.
• Star-delta transition compatibility: Three LC1D50M7C units (main, star, delta) form a complete star-delta starter for motors up to 22kW. The mechanical interlock kit LAD9R1 prevents simultaneous closure of the star and delta contactors, eliminating the risk of phase-to-phase short circuit during transition.
• Diagnostic transparency via auxiliary contacts: The integrated 1NC auxiliary contact wired to a PLC input provides a de-energised confirmation signal. If the coil is commanded ON but the NC contact does not open within the expected operate time window, the PLC can flag a contactor weld or coil failure without additional current sensing hardware.
• Low control circuit burden: The sealed coil consumption of approximately 7.5 VA at 220V AC draws less than 35mA from the control transformer secondary. This allows a single 100VA control transformer to drive multiple LC1D50M7C coils simultaneously without approaching thermal limits.
• Thermal derating transparency: Schneider Electric publishes derating curves for the LC1D50M7C above 55°C ambient. At 60°C, the rated current reduces to approximately 44A (AC-3). This documented derating allows panel designers to calculate actual thermal margins rather than applying arbitrary safety factors.
• IEC and UL dual certification: A single part number satisfies both IEC 60947-4-1 (international) and UL 508 (North American) project requirements, eliminating the need to stock separate part numbers for export projects or multi-standard installations.

Quality Assurance & Global Logistics

Every LC1D50M7C unit dispatched from our Xiamen facility is a factory-original Schneider Electric component. Schneider Electric manufactures TeSys D contactors under ISO 9001-certified production processes, with each unit subject to 100% coil resistance measurement, contact continuity verification, and dielectric withstand testing at the production line before packaging. The M7C coil suffix is laser-marked on the coil body and printed on the rating label — both are verified against the purchase order before dispatch to prevent coil voltage mismatch, which is the most common field installation error with this product family.

Outbound logistics from Xiamen, China cover the full spectrum of international trade requirements. Standard shipments to Southeast Asia, the Middle East, and Europe move via DHL Express or FedEx International Priority, with typical transit times of 3–5 business days to major commercial hubs. For project orders requiring consolidated freight, FOB Xiamen Yuanhai Port terms are available with full export documentation: commercial invoice, packing list, certificate of origin (Form E for ASEAN, EUR.1 for EU), and a material safety data sheet where required by the destination customs authority. All cartons are marked with the part number, quantity, and batch code to support incoming inspection at the customer’s goods-receiving dock.

A 12-month warranty covers manufacturing defects in materials and workmanship from the date of dispatch. Warranty claims are processed with photographic evidence of the defect and the original dispatch documentation. Units that fail within the warranty period due to manufacturing defects are replaced at no charge, including return freight for orders above 5 units.
