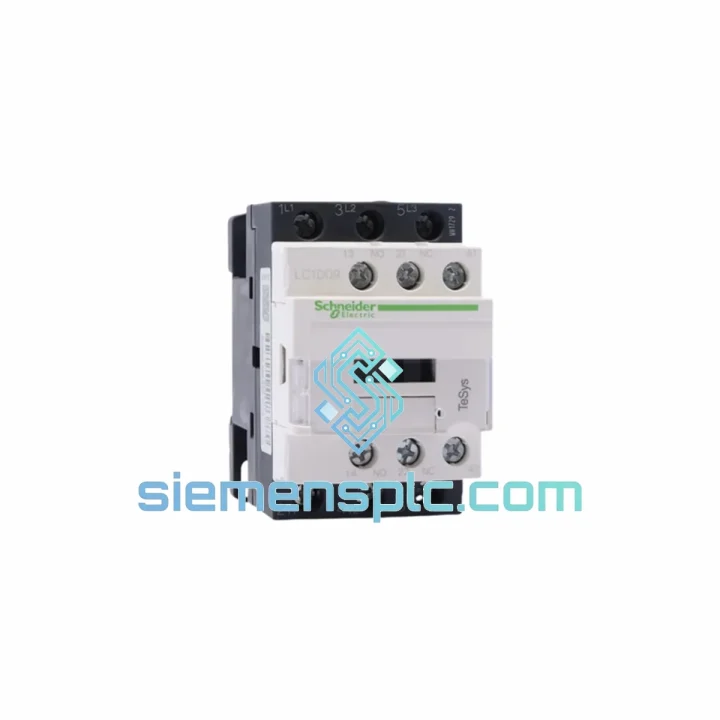

Schneider Electric LC1D95M7C AC Contactor – TeSys D Series

Schneider Electric LC1D95M7C — 95A Three-Pole AC Contactor in Industrial Motor Control Architecture

The LC1D95M7C occupies a well-defined position in the TeSys D contactor family: it is the 95 A frame-size device rated for AC-3 duty, fitted with a 220 V AC / 50–60 Hz control coil (M7 coil designation) and a factory-integrated 1 NO + 1 NC auxiliary contact block. Within a motor control center (MCC) or standalone starter panel, this contactor functions as the primary power-switching element between the upstream protective device and the motor terminals. Its role is not passive switching — the LC1D95M7C must reliably interrupt inductive motor currents at up to six times rated load during starting transients, sustain continuous thermal current of 125 A at 40 °C ambient, and survive the mechanical shock of up to 10 million no-load operations across its service life.

The device is designed around IEC/EN 60947-4-1 utilization category AC-3, which defines the most demanding switching duty for squirrel-cage induction motors: closing onto a locked-rotor current of 6× Ie and breaking at rated voltage with a lagging power factor of 0.35. At 400 V, the LC1D95M7C is rated for motors up to 45 kW; at 460 V it covers 50 HP. These figures are not derated estimates — they reflect the verified breaking capacity of the silver-alloy main contacts under full AC-3 cycling conditions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Main Contact Architecture: The LC1D95M7C uses a double-break contact geometry on each pole. Each main pole contains two contact gaps in series, so the arc voltage developed during interruption is distributed across two gaps rather than one. This halves the arc energy per gap, extends silver-alloy contact life, and allows the device to achieve its 1,000,000 AC-3 electrical endurance rating without requiring contact replacement at mid-life. The moving contact bridge is guided by a precision-molded thermoplastic carrier that maintains contact alignment under the lateral forces generated by high-current arcs.

Electromagnetic Actuator and Coil Economy Circuit: The M7 coil assembly incorporates a shading ring on the E-I laminated core to eliminate 100 Hz vibration at 50 Hz supply frequency. The inrush-to-sealed VA ratio (approximately 200 VA inrush vs. 11 VA sealed) is managed by the inherent impedance increase of the closed magnetic circuit — no external economy resistor is required. This passive economy mechanism reduces panel heat dissipation and eliminates a potential failure point present in older contactor designs that relied on external resistor networks.

EMC Design and Arc Suppression: The arc chute chambers on each main pole use deion plates to split and cool the arc column rapidly. The geometry forces the arc into a high-resistance path within 8–12 ms of contact separation under AC-3 conditions, limiting the arc energy transferred to the contact surfaces. The molded housing provides inherent shielding of the arc plasma, reducing radiated EMI that could couple into adjacent control wiring — a relevant consideration in panels where the contactor operates within 200 mm of PLC I/O modules or fieldbus cables.

Auxiliary Contact Block Integration: The 1 NO + 1 NC auxiliary contacts are mechanically linked to the main contact bridge through a positive-drive mechanism. This means the auxiliary contacts cannot remain closed if the main contacts have welded — a critical safety feature for interlock circuits. The auxiliary contact terminals accept 0.75–4 mm² conductors, compatible with standard 24 V DC PLC I/O wiring without ferrule adapters.

Type 2 Short-Circuit Coordination: When paired with Schneider GV2ME or GV3ME motor circuit breakers, the LC1D95M7C achieves Type 2 coordination per IEC 60947-4-1 Annex B. Under a prospective short-circuit current up to the breaker’s rated Ics, the contactor contacts may show minor welding but must be separable by hand after the fault — no replacement is required. This coordination is verified by Schneider Electric’s own type-test data and eliminates the need for separate fuse protection in many panel designs.

System Integration Benefits

• Direct DIN Rail Mounting: The 35 mm DIN rail clip engages without tools, allowing panel builders to install and remove the contactor during commissioning without disturbing adjacent devices. The screw-mount option provides additional vibration resistance for mobile plant applications.
• TeSys D Accessory Ecosystem: The LC1D95M7C accepts the full range of TeSys D add-on modules — LA1D auxiliary contact blocks (up to 4 additional contacts), LAD4 surge suppressors (RC, varistor, or diode types), LAD9 mechanical interlocks for reversing starters, and LRD-series thermal overload relays (LRD3359 for 80–104 A, LRD3361 for 95–120 A) — all without adapters or spacers.
• PLC Output Compatibility: The 11 VA sealed coil power draw is within the sourcing capacity of most 24 V DC relay output modules when used with a 220 V AC interposing relay, and directly compatible with 220 V AC triac output modules rated ≥ 0.1 A. No external coil suppressor is required when the LAD4 varistor suppressor is fitted.
• Star-Delta Starter Assembly: Three LC1D95M7C units combined with a LAD9 mechanical interlock kit and a TeSys D timer relay form a complete IEC-compliant star-delta starter for motors up to 45 kW, with no additional frame-size mismatches or current derating.
• Diagnostic Transparency via Auxiliary Contacts: The integrated 1 NO auxiliary contact provides a hard-wired run-status feedback to the PLC digital input, enabling the control program to detect contactor dropout within one PLC scan cycle (typically 1–10 ms). This deterministic feedback path supports phase-loss detection logic and motor protection interlocks without relying on soft-starter or VFD communication protocols.
• Reversing Starter Interlock: The 1 NC auxiliary contact is used in the cross-interlock circuit of reversing starters to prevent simultaneous energization of forward and reverse contactors. The positive-drive mechanism ensures the NC contact opens before the main contacts close, eliminating the race condition that can cause phase-to-phase short circuits in poorly designed reversing panels.
• Thermal Derating Transparency: Schneider Electric publishes full thermal derating curves for the LC1D95M7C as a function of ambient temperature and enclosure type. At 60 °C ambient in an IP54 enclosure, the device derate to approximately 80 A continuous — a figure that must be accounted for in tropical or outdoor panel installations. This published data allows engineers to size the contactor correctly without applying arbitrary safety margins.
• Global Certification Acceptance: IEC/EN 60947-4-1, UL 508, and CSA C22.2 No. 14 certifications are carried on a single device, eliminating the need for market-specific variants in export projects. A single LC1D95M7C part number satisfies panel certification requirements in the EU, North America, and most Asian markets.

Quality Assurance & Global Logistics

Every LC1D95M7C unit dispatched from our Xiamen, China facility is sourced through verified supply channels and subjected to incoming inspection covering coil continuity (measured resistance vs. Schneider Electric published nominal), main contact resistance (micro-ohm measurement at rated current), mechanical operation (manual actuation cycle count), and label authenticity (holographic label verification and QR traceability scan against Schneider Electric’s product authentication database).

Units are stored in climate-controlled warehousing at 15–25 °C and 30–60% RH to prevent contact oxidation and coil insulation degradation during storage. Original Schneider Electric packaging — including the molded foam insert and sealed polybag — is preserved intact until dispatch. A Certificate of Conformity (CoC) and, where required, a third-party inspection report are available upon request for critical infrastructure, oil and gas, or government procurement projects.

Logistics from Xiamen port to major global destinations: DHL Express to Europe (3–5 business days), DHL/FedEx to North America (4–6 business days), and air freight to Southeast Asia and the Middle East (2–4 business days). Sea freight consolidation is available for orders exceeding 50 units. HS Code: 8536.49 (AC contactors, >1000 V rated insulation). All shipments include a commercial invoice, packing list, and CoC. Export compliance documentation for dual-use screening is available on request. A 12-month warranty covers manufacturing defects under normal operating conditions, with advance replacement available for critical plant applications.
