Siemens 3RW4422-1BC44 Soft Starter – SIRIUS 3RW44

Siemens 3RW4422-1BC44 — 45 A Integrated-Bypass Soft Starter for Three-Phase Asynchronous Motor Control

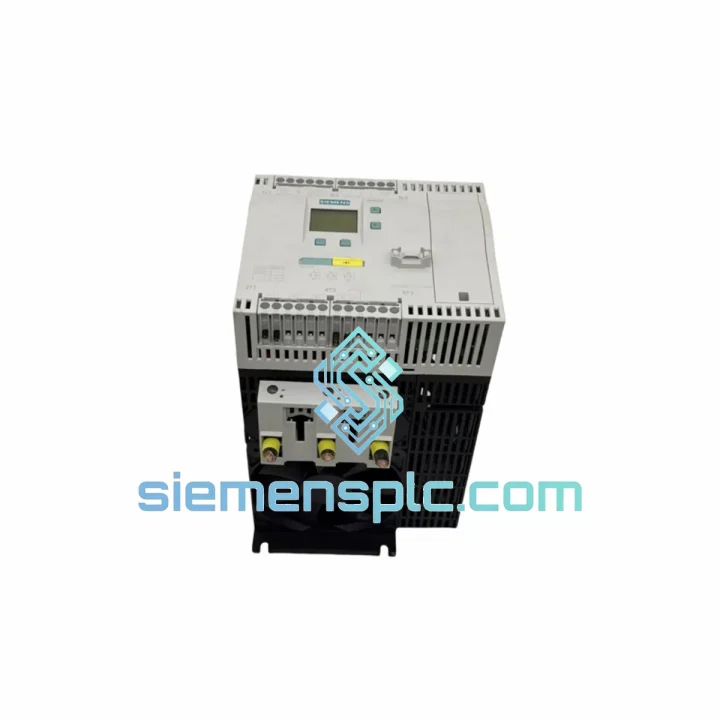

In continuous-duty industrial installations, the quality of a motor’s start-stop transition directly determines the service life of mechanical drivetrain components and the stability of upstream power distribution. The Siemens 3RW4422-1BC44 addresses this at the hardware level: it is a 45 A, three-phase soft starter from the SIRIUS 3RW44 series, incorporating an integrated bypass contactor, independent ramp-time adjustment, and a full suite of onboard motor protection functions. The device is rated for 22 kW at 400 V AC and operates across a main circuit voltage range of 200–480 V AC, making it suitable for deployment in both 50 Hz and 60 Hz grid environments without hardware modification.

The 3RW44 series occupies the upper tier of Siemens’ SIRIUS motor-control portfolio. Unlike entry-level 3RW30/3RW40 devices, the 3RW44 integrates the bypass contactor internally, eliminating the external bypass wiring that adds panel complexity and potential failure points. The result is a self-contained motor-starting unit that reduces cabinet footprint, simplifies commissioning, and lowers the total installed component count per motor circuit.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3RW4422-1BC44 controls motor terminal voltage through a three-phase anti-parallel thyristor (SCR) bridge. During the start ramp, the firing angle of each SCR pair is progressively advanced, increasing the RMS voltage applied to the motor stator from the configured initial voltage up to full line voltage over the programmed ramp time (1–20 s). This phase-angle control method avoids the discrete voltage steps of autotransformer starters and the mechanical wear of star-delta contactors, producing a continuous, smooth torque profile.

Integrated Bypass Architecture: Once the motor reaches full-voltage operation, the internal bypass contactor closes, short-circuiting the SCR bridge. This eliminates continuous thyristor conduction losses during steady-state running — a critical thermal management advantage in high-duty-cycle applications. The SCR bridge is only active during the start and stop ramps, extending semiconductor service life significantly compared to designs without bypass.

EMC Design: The 3RW44 series is designed to IEC 60947-4-2 and complies with EN 61800-3 Category C2 for conducted and radiated emissions. The SCR firing logic incorporates zero-crossing synchronization referenced to the line frequency, which minimizes harmonic injection into the supply network during ramp transitions. For installations in sensitive environments, an external line-side EMC filter (e.g., Siemens 3RF2910-0HA13) can be added without modifying the starter’s internal configuration.

Motor Protection Logic: The onboard electronic overload relay uses an I²t thermal model that tracks motor heating across both start and run phases. The thermistor input (PTC type, per DIN 44081/44082) provides a direct winding-temperature feedback path independent of the current-based model — a dual-layer protection architecture that prevents thermal damage even when motor loading is non-uniform or ambient temperature is elevated. Phase-failure detection operates on all three phases simultaneously; an asymmetry exceeding the threshold triggers a fault output within one line cycle.

Current Limiting Function: The adjustable current limit (2–5 × Ie) allows the installer to cap inrush current to a value compatible with the upstream transformer capacity or generator rating. In weak-grid or generator-backed installations, this prevents voltage sag during motor starting — a common cause of nuisance trips on other sensitive loads sharing the same bus.

System Integration Benefits

• Reduced panel wiring complexity: The integrated bypass contactor eliminates three external power cables and the associated auxiliary control wiring required by external-bypass designs, reducing panel assembly time and potential wiring error points.
• Deterministic start-time control: The adjustable ramp timer (1–20 s) allows the commissioning engineer to match the acceleration profile to the driven load’s inertia — critical for high-inertia loads such as centrifuges and large fans where excessive acceleration torque causes mechanical stress.
• Upstream protection coordination: The current-limiting function enables precise coordination with upstream fuses and circuit breakers (e.g., Siemens 3RV2 motor starter protectors), ensuring that the soft starter’s inrush envelope stays within the breaker’s instantaneous trip threshold.
• Compatibility with SIMATIC PLC supervisory control: The 3RW4422-1BC44 provides digital fault output contacts that can be wired directly to SIMATIC S7-1200 or S7-1500 digital input modules, enabling the PLC to log fault events, trigger alarms, and initiate restart sequences without additional relay logic.
• Optional PROFIBUS DP / AS-Interface communication: With the addition of a 3RW4900-0AC00 communication module, the starter integrates into a PROFIBUS DP network, exposing real-time current, voltage, thermal load, and fault status to the SCADA or DCS layer — eliminating the need for separate current transducers on the motor circuit.
• Soft stop for pump applications: The programmable stop ramp (0–20 s) decelerates the motor gradually, preventing water hammer in pipeline systems. This is particularly relevant in water treatment and district heating pump stations where abrupt valve closure causes pressure transients that damage pipework.
• Wide supply voltage tolerance: The 200–480 V AC main circuit range and 110–230 V AC control supply range allow a single hardware variant to be deployed across North American (480 V / 60 Hz), European (400 V / 50 Hz), and Asian (380 V / 50 Hz) grid standards, simplifying global spare-parts inventory management.
• Diagnostic transparency via fault memory: The device stores the last fault event in non-volatile memory, accessible via the front-panel LED indicators and, with the communication module, via the fieldbus. This allows maintenance personnel to identify the root cause of a trip without requiring an oscilloscope or external data logger.
• Thermal derating curve compliance: The 3RW4422-1BC44 provides a published derating curve for ambient temperatures above 40 °C, allowing the design engineer to calculate the exact permissible current at elevated cabinet temperatures — a requirement for installations in tropical climates or poorly ventilated enclosures.
