Siemens 6AV2123-2GA03-0AX0 HMI Panel – SIMATIC KTP700 Basic PN

Siemens 6AV2123-2GA03-0AX0 SIMATIC HMI KTP700 Basic PN — Operator Interface Architecture for PROFINET-Based Control Systems

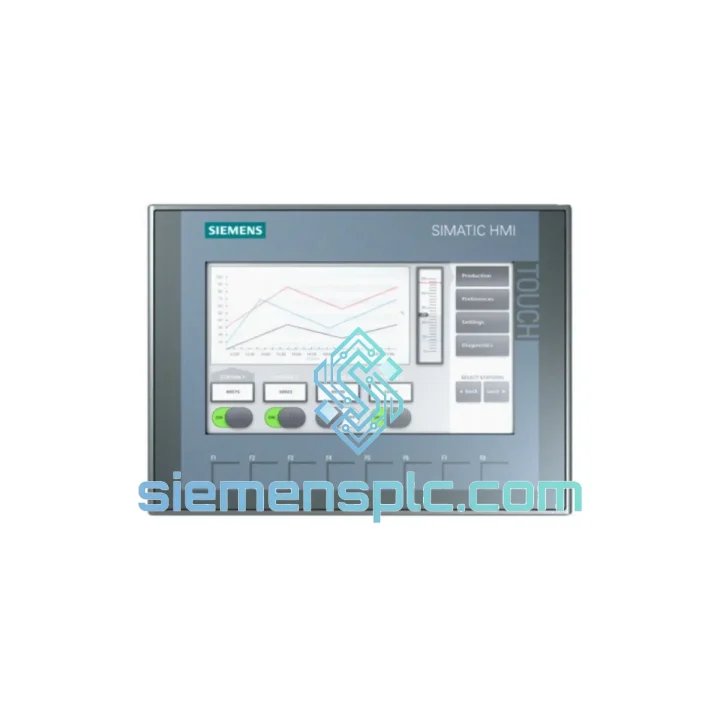

The 6AV2123-2GA03-0AX0 is a 7-inch widescreen operator panel within Siemens’ SIMATIC HMI KTP700 Basic PN series. It occupies the entry-level tier of the SIMATIC HMI Basic Panel family, designed to serve as the primary human-machine interface node in distributed PROFINET control architectures. Unlike general-purpose touchscreen displays, this unit is purpose-built for deterministic process visualization: its firmware runtime, tag management engine, and communication stack are all optimized for cyclic PROFINET data exchange with SIMATIC S7-1200 and S7-1500 controllers.

The panel integrates a resistive single-touch TFT display with 800 × 480 pixel resolution at 64,000-color depth, paired with eight configurable physical function keys. This hybrid input topology is a deliberate hardware decision: resistive touch technology maintains reliable input registration under contaminated surface conditions (oil film, condensation, light particulate), while the physical function keys provide tactile, glove-compatible operation for operators in PPE-intensive environments. The combination addresses a failure mode common to capacitive-only panels deployed in metalworking, food processing, and chemical handling applications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KTP700 Basic PN’s internal architecture separates the display rendering pipeline from the PROFINET communication stack at the firmware level. The panel runs a proprietary Siemens runtime environment — not a general-purpose embedded OS — which eliminates scheduling jitter introduced by non-deterministic operating system layers. Tag updates from the PLC are received via cyclic PROFINET I/O frames and written directly to the display buffer without intermediate queuing, achieving a typical screen refresh latency of under 100 ms under normal network load conditions.

The resistive touch controller uses a four-wire analog matrix sampled at approximately 100 Hz. Input events are debounced in hardware before being passed to the runtime event queue, preventing false triggers from vibration or surface contamination — a relevant consideration in press-room or conveyor-adjacent installations. The eight function keys are connected via a dedicated scan matrix independent of the touch controller, ensuring key input remains available even if the touch surface is damaged or obscured.

EMC hardening is implemented at the PCB level through ground-plane partitioning between the power supply section, the display driver circuitry, and the communication interface. The RJ45 PROFINET port incorporates integrated magnetics with common-mode choke filtering, providing isolation against conducted interference on the Ethernet cable — a critical design element in environments with variable-frequency drives (VFDs) or large inductive loads operating in proximity. The 24 V DC input stage includes transient voltage suppression (TVS) diodes rated to absorb surge events consistent with IEC 61000-4-5 Level 3 criteria.

The panel’s non-volatile memory architecture stores the project configuration in flash memory with wear-leveling logic. Recipe data and alarm history are written to a separate memory partition, preventing project corruption from power interruptions during data logging operations. There is no rotating storage medium; the absence of mechanical components contributes directly to the 50,000-hour LED backlight MTBF being the primary life-limiting factor under normal operating conditions.

System Integration Benefits

• Single-project engineering in TIA Portal: The 6AV2123-2GA03-0AX0 is configured within the same TIA Portal project as the connected S7-1200 or S7-1500 PLC. Tag linking is performed by direct reference to PLC data blocks — no manual address mapping, no separate HMI software license required beyond WinCC Basic.
• Deterministic PROFINET I/O cycle: The panel participates as a PROFINET IO device with configurable update cycles down to 4 ms, enabling synchronized process visualization with the PLC scan cycle. This eliminates the display lag characteristic of panels using Modbus TCP or OPC UA polling architectures.
• Integrated alarm management with PLC diagnostics: Alarm events generated by the PLC’s diagnostic buffer are forwarded to the panel’s alarm system via PROFINET without additional configuration. Operators receive timestamped, plain-text alarm messages derived directly from the PLC program’s symbolic names.
• Recipe management with PLC data block synchronization: Recipe records stored on the panel can be uploaded to and downloaded from PLC data blocks in a single operator action, supporting rapid product changeover on multi-SKU production lines without manual parameter entry.
• Multilingual runtime support: Up to 32 project languages can be stored in the panel’s 10 MB user memory. Language switching at runtime requires no panel restart and no PLC interaction, supporting multinational OEM deployments from a single hardware SKU.
• IP65 front seal for washdown-rated enclosures: The front bezel gasket meets IP65 per IEC 60529, allowing panel-mount installation in enclosures subject to directed water jets. No additional protective cover or secondary enclosure is required for food-grade or pharmaceutical washdown zones.
• Standardized spare-parts footprint: The KTP700 Basic PN uses the same 192 × 138 mm panel cutout as other KTP-series panels. Replacement of a failed unit requires no enclosure modification, reducing mean time to repair (MTTR) in production environments where downtime cost is significant.
• Transparent diagnostic channel via PROFINET: The panel exposes its own device status — communication health, backlight hours, memory utilization — to the PLC via the PROFINET device diagnostic interface. This allows the PLC program or a SCADA system to monitor panel health proactively, without requiring physical inspection of the operator station.

Quality Assurance & Global Logistics

Every unit of the 6AV2123-2GA03-0AX0 supplied through siemensplc.com is sourced from verified distribution channels with full traceability documentation. Pre-shipment inspection covers physical integrity of the housing and bezel, label authenticity and serial number consistency, and firmware version verification against Siemens’ published release records. Units are dispatched in original or equivalent protective packaging with anti-static inner lining and foam-cushioned outer cartons rated for international air freight handling.

Shipments originate from Xiamen, China, with access to major international air freight hubs including Xiamen Gaoqi International Airport and Fuzhou Changle International Airport. Standard delivery timelines are 3–7 business days to Southeast Asia, 5–10 business days to Europe and the Middle East, and 7–14 business days to the Americas, subject to customs clearance. Full export documentation is provided with every international shipment: commercial invoice, packing list, certificate of origin, and — upon request — a material safety data sheet and PROFINET conformance certificate copy.

A 12-month replacement warranty applies to all units against manufacturing defects under normal operating conditions as defined by Siemens’ published environmental and electrical specifications. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit and supporting documentation.
