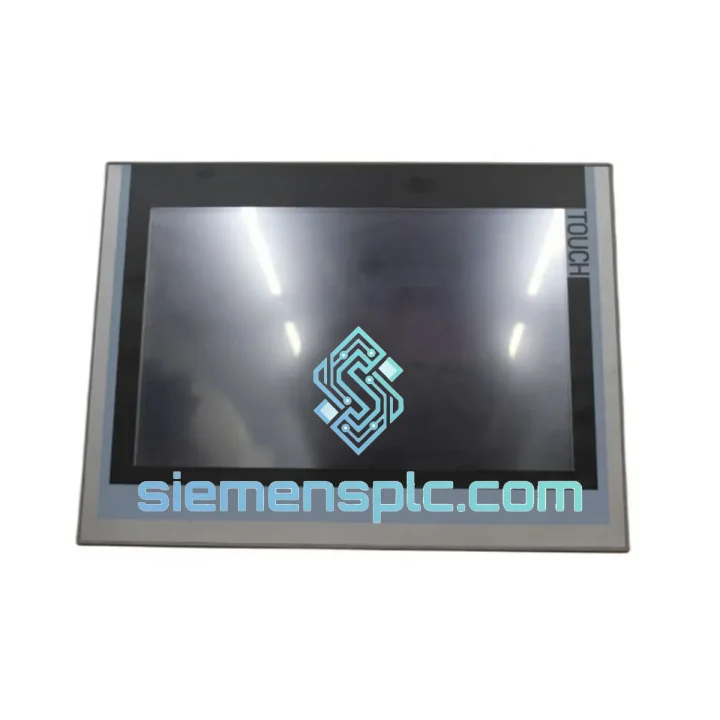

Siemens 6AV2124-0QC02-0AX0 HMI Touch Panel – SIMATIC TP1200 Comfort

Siemens 6AV2124-0QC02-0AX0 — SIMATIC TP1200 Comfort: Operator Interface Architecture for High-Demand Process Environments

The Siemens 6AV2124-0QC02-0AX0 is a 12-inch widescreen resistive touch panel belonging to the SIMATIC TP1200 Comfort generation — a product line engineered specifically for process-intensive industrial applications where display fidelity, communication determinism, and long-term serviceability are non-negotiable. This unit operates on a 1 GHz ARM Cortex-A8 processor paired with 128 MB SDRAM and 24 MB of user-accessible flash memory, running Windows CE 6.0 as its embedded operating system. The hardware architecture is purpose-built for HMI workloads: the processor handles concurrent tasks including screen rendering, tag polling, alarm management, and protocol stack execution without shared-resource contention typical of general-purpose embedded platforms.

The 12-inch TFT display delivers a native resolution of 1280 × 800 pixels at a 16:9 aspect ratio, with a 64,000-color depth sufficient for process mimics, trend curves, and alarm faceplates at full engineering detail. The resistive single-touch overlay provides reliable input response across the full operating temperature range of 0 °C to +50 °C, including gloved-hand operation — a practical requirement in chemical, pharmaceutical, and heavy manufacturing environments. The front panel carries an IP65 ingress protection rating, making it suitable for wash-down zones and dusty enclosure interiors, while the rear housing is rated IP20, requiring standard cabinet sealing practices.

Communication architecture is a defining strength of this model. Two independent PROFINET/Industrial Ethernet ports (RJ45, 10/100 Mbit/s) allow simultaneous connection to a SIMATIC controller and a plant-level network without requiring an external switch — a topology that eliminates a single point of failure in the HMI communication path. The integrated RS-422/RS-485 serial port supports legacy Modbus RTU and PPI/MPI protocols, enabling backward compatibility with older field devices. Two USB 2.0 host ports and one SD card slot provide local data logging, project transfer, and firmware update pathways without network dependency.

Power supply input is 24 V DC with an operating range of 20.4 V to 28.8 V, consistent with standard PLC cabinet power distribution. Typical power consumption is approximately 25 W, allowing accurate UPS sizing for panel continuity during mains interruptions. The unit is certified to CE, UL, cULus, and ATEX Zone 2 standards, covering regulated industries including oil and gas, food and beverage, and pharmaceutical manufacturing.

Engineering configuration is performed exclusively through Siemens TIA Portal (V13 and above) using WinCC Comfort runtime, which provides a unified engineering environment shared with SIMATIC S7-1200, S7-1500, S7-300, and S7-400 controller families. This eliminates the need for separate HMI configuration software and allows tag import directly from the PLC project, reducing configuration errors and commissioning time. The panel supports up to 2,048 process tags, 1,024 alarms, 50 trend curves, and 5 recipe data records simultaneously — parameters that cover the majority of machine-level and cell-level visualization requirements without requiring an upgrade to a higher-tier panel.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6AV2124-0QC02-0AX0 implements a layered hardware architecture that separates display rendering, communication processing, and user application execution into distinct functional domains managed by the ARM Cortex-A8 core’s hardware task scheduler. This prevents a high-frequency tag update cycle from starving the display refresh pipeline — a failure mode observed in lower-cost HMI platforms that use a single-threaded execution model.

The dual PROFINET port implementation uses an integrated switch fabric rather than two independent MAC controllers. This allows the panel to participate in a PROFINET ring topology (MRP — Media Redundancy Protocol) without external hardware, providing sub-200 ms network reconfiguration time in the event of a cable fault. For installations where network uptime is a process safety requirement, this architecture eliminates the HMI as a single point of failure in the communication path.

EMC performance is addressed at the PCB level through controlled impedance routing on high-speed signal traces, ground plane segmentation between analog display circuitry and digital communication sections, and transient voltage suppression (TVS) diodes on all external interface connectors. The unit complies with EN 61000-6-2 (industrial immunity) and EN 61000-6-4 (industrial emissions), covering conducted and radiated interference in environments with variable-frequency drives, contactors, and high-current switching loads operating in proximity.

The resistive touch overlay uses a four-wire analog matrix with a dedicated touch controller ASIC that performs coordinate linearization and debounce filtering in hardware before passing input events to the OS input stack. This approach maintains consistent touch response accuracy across the full operating temperature range without requiring software recalibration — a practical advantage in environments where ambient temperature varies significantly between shifts.

Flash memory wear leveling is managed by the embedded OS file system, distributing write cycles across the 24 MB user partition to extend media service life under continuous data logging workloads. The SD card slot provides an overflow path for high-volume recipe or audit trail data, with hot-swap capability supported by the OS storage manager.

System Integration Benefits

• Zero-driver SIMATIC connectivity: Native PROFINET communication with S7-1200 and S7-1500 controllers requires no additional communication modules or third-party drivers — the TIA Portal project handles all tag binding at compile time.
• Unified engineering environment: HMI screens, PLC logic, and network configuration share a single TIA Portal project file, enabling cross-reference validation between controller tags and HMI display objects before download.
• Deterministic alarm delivery: The PROFINET stack on this panel supports cyclic data exchange with configurable update rates as low as 4 ms, ensuring alarm state changes are reflected on the operator display within one communication cycle.
• Integrated OPC UA server: The panel exposes its tag database as an OPC UA server endpoint, allowing SCADA systems, MES platforms, and data historians to subscribe to process values without routing traffic through the PLC.
• Multi-protocol serial bridge: The RS-422/RS-485 port can simultaneously serve as a Modbus RTU master to legacy field instruments while the PROFINET ports maintain controller communication — eliminating the need for a separate protocol converter in mixed-generation installations.
• Structured diagnostics output: The WinCC Comfort runtime generates structured alarm records with timestamp, tag name, alarm class, and acknowledgment state, exportable to CSV via the SD card or USB port for maintenance log compliance.
• Recipe management with version control: Up to 5 simultaneous recipe data sets with 100 records each can be stored in panel flash, with transfer to/from the PLC data block via a single function call — supporting product changeover workflows without operator access to the engineering station.
• Remote access via VNC: The panel’s built-in VNC server allows read-only or interactive remote monitoring from a standard VNC client over the plant Ethernet network, supporting remote commissioning and shift supervisor oversight without physical panel access.

Quality Assurance & Global Logistics

Every unit of the Siemens 6AV2124-0QC02-0AX0 supplied through siemensplc.com is sourced as genuine Siemens original equipment. Each item is individually inspected upon receipt: visual examination of housing, connector integrity, label authenticity, and firmware version verification against Siemens published release records. Units are powered on and subjected to a functional display and communication check before packaging.

Packaging uses ESD-safe anti-static foam inserts and moisture barrier bags, consistent with Siemens factory packaging standards. For long-haul air freight, units are double-boxed with shock-absorbing fill material rated to ISTA 2A transit testing requirements.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, supporting both air express and sea freight consolidation. Standard international air express delivery via DHL, FedEx, or UPS reaches most destinations in Europe, North America, Southeast Asia, and the Middle East within 3–5 business days from order confirmation. Sea freight LCL consolidation is available for bulk orders requiring cost-optimized transit. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for each shipment. HS code classification and customs value declaration are handled by our logistics team to minimize clearance delays at destination ports.

A 12-month warranty covers manufacturing defects from the date of shipment. Dead-on-arrival (DOA) units are replaced within 7 business days upon return confirmation. Technical support for installation, TIA Portal configuration, and communication troubleshooting is available via email and WhatsApp during business hours (UTC+8).
