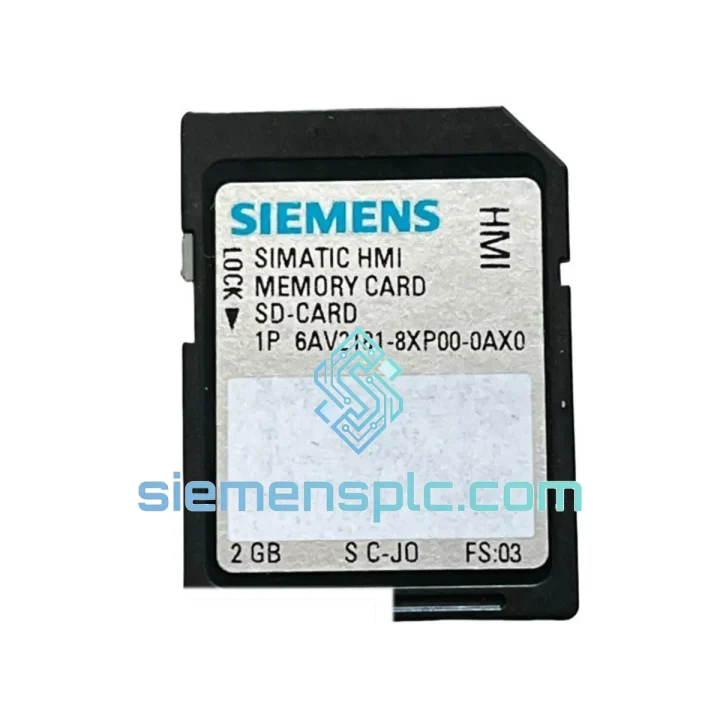

Siemens 6AV2181-8XP00-0AX0 HMI Memory Card

6AV2181-8XP00-0AX0 — Stop the Clock on Your HMI Downtime. Ship Today from Xiamen.

Your SIMATIC HMI panel is dead. The SD card failed mid-shift. Production is stopped. Every hour costs you — in labor, in penalties, in pressure from the floor. The Siemens 6AV2181-8XP00-0AX0 is the exact OEM-certified 2 GB SD memory card your panel demands, and we have it on the shelf right now. No lead time games. No substitutes. The real part, shipped the same day you order.

We’ve handled enough emergency calls to know that when a KTP700 or TP1500 Comfort goes dark because of a corrupted or failed SD card, the last thing you need is a distributor quoting you 4–6 weeks. That’s why siemensplc.com stocks this card specifically for urgent MRO replacement — so your panel is back online before the next shift starts.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Compatible panels: SIMATIC KTP400 / KTP700 / KTP900 / KTP1200 Basic; TP700 / TP900 / TP1200 / TP1500 / TP1900 / TP2200 Comfort; MP377 / MP377 Pro; Mobile Panels 177, 277, 277 IWLAN.

Troubleshooting & Replacement Tips

After ten years of field calls, here’s what actually goes wrong with this card — and how to fix it fast.

Symptom 1: Panel boots to black screen or “No project found” error.
The SD card has lost its partition table or the project file is corrupted. Do not attempt to reformat with a PC. Pull the card, insert the new 6AV2181-8XP00-0AX0, and restore from your last TIA Portal project backup via USB or Ethernet transfer. If no backup exists, you’ll need to re-download from the engineering station — another reason to keep a backup SD card on the shelf.

Symptom 2: Firmware update hangs at 0% or panel reboots in a loop.
This is almost always a card compatibility issue. Consumer SD cards — even name-brand ones — fail the Siemens boot loader’s sector verification. The 6AV2181-8XP00-0AX0 is pre-formatted with the correct FAT32 cluster size and sector alignment that the SIMATIC boot loader expects. Swap to the OEM card and the firmware flash completes cleanly.

Symptom 3: Alarm logs or recipe files stop writing mid-production.
Write endurance exhaustion on a worn card. Industrial SD cards have a finite write cycle rating; consumer cards hit this wall much faster under continuous logging duty. Replace with a fresh 6AV2181-8XP00-0AX0 and verify the HMI data log path is pointing to the SD card (not internal flash) in your WinCC RT Advanced or TIA Portal project settings.

Replacement procedure — field-tested steps:

1. Put the HMI panel into maintenance mode or power it down cleanly (avoid hot-swap unless the panel explicitly supports it).
2. Locate the SD card slot — typically on the rear or left side of the panel housing. Use a fingernail or flat tool; do not use metal tools near the slot contacts.
3. Insert the new 6AV2181-8XP00-0AX0 until it clicks. Verify the card is fully seated — a partially inserted card causes intermittent read errors that are extremely difficult to diagnose.
4. Power the panel on. If restoring a project, initiate transfer from TIA Portal immediately. The panel will prompt for project download on first boot with a blank card.
5. After project transfer, verify alarm logging and recipe paths are active. Check the SD card status in the HMI system diagnostics menu.
6. Label the old card with the failure date and retain it for failure analysis if required by your maintenance protocol.

No DIP switches, no addressing, no firmware matching required. This is a passive storage device — plug in, transfer project, done. The only configuration item is ensuring your TIA Portal project’s data log and recipe storage paths are set to the SD card rather than internal panel memory.

Reliability in Harsh Conditions

Industrial floors are not kind to electronics. Stamping presses generate 10–50 Hz vibration that propagates through panel enclosures. Foundry environments push ambient temperatures past 50 °C. Coastal and chemical plants drive humidity to the edge of condensation. The 6AV2181-8XP00-0AX0 is validated against all of it.

Siemens qualifies this card to IEC 60068-2-6 for sinusoidal vibration — 5 to 150 Hz sweep, 1 g acceleration — and IEC 60068-2-27 for mechanical shock, 15 g half-sine pulse. The card’s operating temperature floor of -20 °C covers cold-start scenarios in unheated outdoor enclosures, while the +60 °C ceiling handles the thermal load inside a fully populated control cabinet running at full duty cycle.

The card’s flash memory cells are industrial-grade MLC or SLC (depending on production batch), selected for extended write endurance under the continuous logging patterns typical of SIMATIC HMI runtime environments. Unlike consumer cards that throttle write speed under thermal stress, this card maintains consistent I/O performance across its full temperature range — critical when your alarm logger cannot afford to drop events during a process upset.

When installed in a SIMATIC panel rated IP65 or IP66, the card is fully protected from wash-down, dust ingress, and incidental liquid contact. The card itself is rated IP20 — it relies on the panel enclosure for environmental protection, exactly as designed.

Global Express Logistics

Our warehouse is in Xiamen, China — a major international cargo hub with direct DHL and FedEx express lanes to Europe, North America, Southeast Asia, and the Middle East. Here’s how your order moves:

Day 0 — Order confirmed before 15:00 CST: Same-day pick, pack, and handover to DHL Express or FedEx International Priority. Export documentation (commercial invoice, packing list, HS code 8523.51) prepared and attached to the shipment.

Day 1–2 — In transit: Tracking number sent to your email within 2 hours of dispatch. DHL Express typically clears Xiamen customs overnight. FedEx IP follows a similar timeline. Both services offer door-to-door tracking with proactive exception alerts.

Day 2–4 — Delivery to most destinations: Western Europe (Germany, France, Netherlands, UK): 2–3 business days. North America (USA, Canada, Mexico): 3–4 business days. Southeast Asia (Singapore, Thailand, Vietnam): 1–2 business days. Middle East (UAE, Saudi Arabia): 2–3 business days. Australia / New Zealand: 3–4 business days.

For shipments to countries with complex import procedures, we can provide a proforma invoice, CE declaration, and country-of-origin certificate (Germany) to pre-clear customs. If your plant’s procurement team requires a formal purchase order process, we accommodate net-30 terms for verified industrial accounts — contact us to discuss.

Emergency same-day courier arrangements (for critical plant shutdowns) are available on request. Call or WhatsApp us directly and we will coordinate the fastest available routing to your site.
