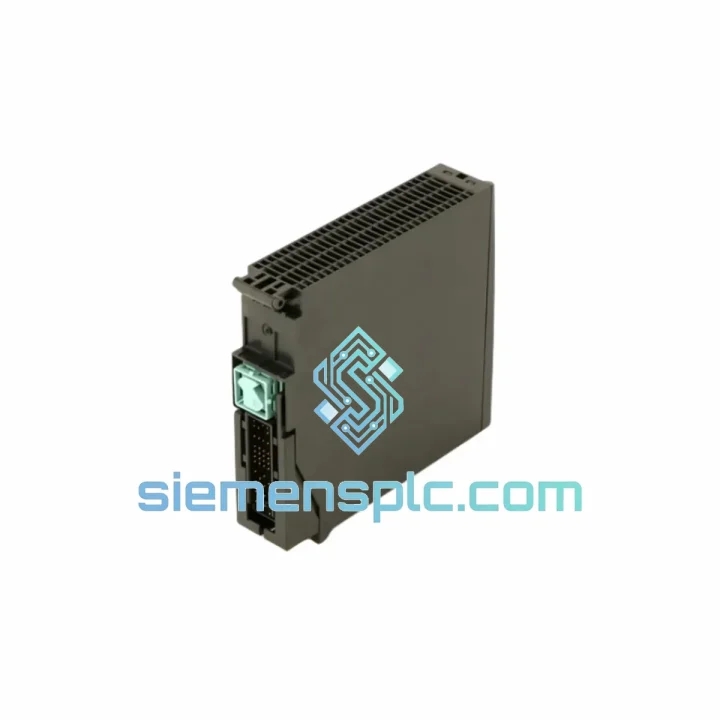

Siemens 6ES7134-7SD00-0AB0 Analog Input Module – ET 200SP

Siemens 6ES7134-7SD00-0AB0 — 4-Channel TC/RTD Analog Input Module for SIMATIC ET 200SP Distributed I/O

The 6ES7134-7SD00-0AB0 is a dedicated temperature-measurement analog input module within the SIMATIC ET 200SP distributed I/O platform. It provides four galvanically isolated input channels capable of accepting thermocouple (TC) and resistance temperature detector (RTD) signals directly from field sensors, converting them to 16-bit digital values for transmission to the host CPU via PROFINET. Unlike general-purpose analog input modules that require external signal conditioners or transmitters, this module integrates cold-junction compensation circuitry and linearization algorithms internally, reducing wiring complexity and eliminating a class of measurement error that commonly affects temperature-critical control loops.

In distributed control architectures where the ET 200SP station may be mounted in close proximity to process equipment — inside motor control centers, on machine frames, or in field junction boxes — the module’s compact 15 mm width and IP20 enclosure allow high-density I/O configurations without sacrificing channel count. The module draws its operating power from the ET 200SP backplane bus (24 V DC), requiring no separate field-side power supply for the measurement circuitry itself. This design choice simplifies cabinet layout and reduces the number of power distribution terminals required per station.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7134-7SD00-0AB0 implements a sigma-delta (ΣΔ) analog-to-digital conversion architecture, which is the appropriate topology for low-frequency, high-accuracy temperature measurement. Unlike successive-approximation register (SAR) ADCs that prioritize conversion speed, the sigma-delta approach oversamples the input signal at a high clock rate and applies digital decimation filtering, achieving 16-bit effective resolution while simultaneously attenuating high-frequency noise — a characteristic particularly valuable in environments with variable-frequency drives (VFDs) and switching power supplies generating conducted interference in the 2–150 kHz range.

Each of the four input channels is galvanically isolated from the backplane bus and from adjacent channels via optocoupler barriers. This channel-to-channel isolation prevents ground loop currents — a common failure mode when thermocouples are installed on grounded metallic process equipment at different electrical potentials — from introducing offset errors or damaging the measurement circuitry. The isolation barrier is rated to withstand transient overvoltages consistent with IEC 61000-4-5 surge immunity requirements.

Cold-junction compensation (CJC) for thermocouple measurements is performed internally by a precision temperature sensor mounted on the module’s terminal block. The CJC sensor reading is applied in real time to the Seebeck voltage measured at each TC channel, correcting for the reference junction temperature without requiring an external ice-point reference or isothermal terminal block. The linearization of TC and RTD transfer functions is executed in the module’s onboard digital signal processor using IEC 60584 (TC) and IEC 60751 (RTD) standard polynomial coefficients, offloading this computation from the host CPU.

The module’s EMC design incorporates multi-stage filtering on both the signal input paths and the backplane power supply lines. Ferrite bead inductors and ceramic capacitors form LC low-pass filters at the input terminals, attenuating common-mode and differential-mode interference before the signal reaches the ADC input stage. The PCB layout follows Siemens’ internal EMC design rules for industrial electronics, with separate ground planes for analog and digital circuitry connected at a single star point to prevent digital switching noise from coupling into the analog measurement path.

Wire-break detection is implemented by injecting a small bias current into the input circuit and monitoring the resulting voltage. An open-circuit condition causes the measured value to saturate to the overflow limit (32767 in 16-bit representation), triggering a diagnostic interrupt that is transmitted to the CPU via the PROFINET acyclic data channel. Short-circuit detection operates on a similar principle, monitoring for abnormally low impedance at the input terminals. Both fault conditions are reported with channel-specific granularity, allowing maintenance personnel to isolate the defective sensor without interrupting measurement on the remaining channels.

System Integration Benefits

• Direct Sensor Wiring Without Transmitters: TC and RTD sensors connect directly to the module terminals, eliminating 4–20 mA transmitters, loop power supplies, and the associated wiring infrastructure. This reduces per-channel installed cost and removes a potential failure point from the signal chain.
• Deterministic PROFINET IRT Data Exchange: Operating within the ET 200SP station, the module’s measured values are transferred to the host CPU within the isochronous real-time (IRT) cycle, with jitter below 1 µs. This timing precision is essential for temperature-cascade control loops where the derivative term is sensitive to measurement latency variation.
• TIA Portal Parameterization Without Custom Code: All channel parameters — sensor type, measurement range, filter time constant, wire configuration, and diagnostic enable/disable — are configured through the TIA Portal hardware configuration editor. No user program code is required to change measurement parameters, reducing commissioning time and the risk of programming errors.
• Channel-Level Diagnostic Transparency: Wire-break, short-circuit, overflow, underflow, and supply voltage fault conditions are each reported as individual diagnostic events with timestamp and channel address. The CPU’s diagnostic buffer logs these events for post-mortem analysis, supporting root-cause investigation without requiring additional diagnostic hardware.
• Hot-Swap Module Replacement: When mounted on a compatible A0-type BaseUnit, the 6ES7134-7SD00-0AB0 can be removed and replaced while the ET 200SP station remains powered and the remaining modules continue operating. The replacement module automatically receives its parameterization from the CPU upon insertion, returning to normal operation within one PROFINET cycle.
• Scalable Station Architecture: Up to 64 I/O modules can be combined in a single ET 200SP station on a single PROFINET node address. The 6ES7134-7SD00-0AB0 can be mixed freely with digital I/O, standard analog I/O, and technology modules within the same station, allowing the temperature measurement channels to be co-located with the actuator outputs they control.
• Reduced Panel Wiring Density: The 15 mm module width, combined with the BaseUnit’s integrated terminal block, achieves a wiring density of approximately 2.7 channels per centimeter of DIN rail — significantly higher than equivalent modular I/O systems using 35 mm or 25 mm module pitches. In large-scale installations with hundreds of temperature measurement points, this translates to measurable reductions in panel enclosure size and cable tray fill.
• Configurable Digital Filter Time Constants: The module offers selectable input filter time constants (typically 16.6 ms, 20 ms, 100 ms) to match the dynamic characteristics of the process being measured. Slower filter settings improve noise rejection for stable temperature processes; faster settings preserve the measurement bandwidth needed for rapid thermal transient detection in safety-critical applications.
