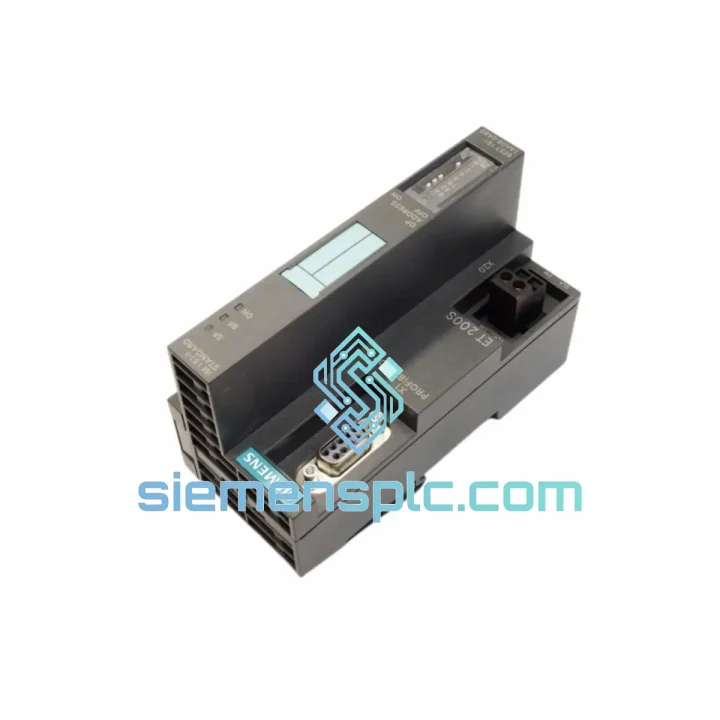

Siemens 6ES7151-1AA06-0AB0 Interface Module

6ES7151-1AA06-0AB0 IM151-1: Stop the Bleed — Every Minute of PROFIBUS Downtime Costs You Real Money

Your ET200S station just dropped off the PROFIBUS network. The master is throwing SF/BF faults. The line is cold. Maintenance is on the phone. You already know the IM151-1 interface module is the culprit — you’ve seen this failure mode before. What you need right now is not a datasheet lecture. You need a confirmed-in-stock, same-day-dispatch replacement that arrives before your next shift change.

We stock the Siemens 6ES7151-1AA06-0AB0 in Xiamen, China. DHL Express to most destinations in 2–4 business days. No broker delays, no customs surprises — we handle the paperwork.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Pattern Recognition

The IM151-1 fails in three predictable ways in the field. Knowing which one you’re dealing with cuts diagnosis time from 40 minutes to under 5.

• BF LED solid red, SF off: Pure PROFIBUS communication loss. Check the bus connector first — a cracked 6GK1500-0FC10 or a corroded pin on the DB9 is responsible for roughly 30% of apparent IM151-1 failures. Swap the connector before condemning the module.
• BF + SF both red: The module has lost both bus contact and detected an internal hardware fault. This is a confirmed IM151-1 failure. Proceed to replacement.
• SF red, BF off, station partially responding: One or more downstream I/O modules have failed or lost their terminal module seating. The IM151-1 itself may be intact. Pull each I/O module one at a time and watch the SF LED — it will clear when you remove the offending card.

PROFIBUS Address Configuration — Critical Before Power-Up

The IM151-1 Standard does not support software-assigned PROFIBUS addresses. The node address is set exclusively via the two rotary hex switches on the front face of the module (labeled ×10 and ×1). Before installing the replacement unit:

• Read the address from your STEP 7 / TIA Portal hardware configuration (HW Config → ET200S station properties → PROFIBUS address).
• Set the rotary switches to match. A mismatch means the master will never parameterise the slave — you’ll sit at BF indefinitely and waste hours chasing a ghost fault.
• Valid range: 1–125. Address 0 is reserved for the master. Address 126/127 are reserved.
• Changes to the rotary switches only take effect after a power cycle. Do not adjust switches with the module energised.

GSD File & Hardware Configuration

If you are replacing an AA05 revision with an AA06 unit (this listing), the GSD file is backward-compatible — SI029610.GSD covers both revisions. You do not need to modify your STEP 7 or TIA Portal project. However, if your project was built with an older GSD (e.g., SI029600.GSD for AA04 and earlier), update to SI029610.GSD and re-download the hardware configuration to avoid parameterisation errors.

Hot-Swap Procedure (Minimise Downtime Further)

The ET200S terminal modules remain wired to the field during an IM151-1 swap. The interface module clips onto the terminal module assembly from the left. Sequence:

• Isolate 24 V DC supply to the PM-E power module — do not remove field wiring.
• Disconnect the PROFIBUS DP bus connector from the IM151-1 (press the release tab, pull straight out).
• Slide the IM151-1 upward off the DIN rail clip and pull forward — the module separates from the backplane bus connector.
• Seat the replacement module, verify rotary switch address, reconnect bus connector, restore 24 V DC.
• Observe LED sequence: PWR green → BF red (searching) → BF off (parameterised) → normal run. Total expected recovery: under 3 minutes if the address is pre-set correctly.

Firmware Compatibility Note

The AA06 hardware ships with firmware V6.0. This firmware is compatible with all SIMATIC S7-300, S7-400, and S7-1500 PROFIBUS DP masters. No firmware update is required for standard I/O operation. If you are using isochronous mode (PROFIBUS DP-V2 sync/freeze), verify your master supports DP-V2 — the IM151-1 Standard does not support isochronous mode regardless of firmware version.

Reliability in Harsh Conditions

The ET200S platform was engineered for environments where consumer-grade electronics simply stop working. The 6ES7151-1AA06-0AB0 carries the following validated environmental ratings — not marketing claims, but IEC-tested figures:

• Vibration: Tested to IEC 60068-2-6 — 10–58 Hz at 0.075 mm amplitude, 58–150 Hz at 1 g. This covers the resonance bands of most industrial conveyor frames, compressor skids, and press foundations. The module will not develop intermittent backplane contact faults from structural vibration alone.
• Shock: IEC 60068-2-27 — 15 g, 11 ms half-sine. Survives the mechanical shock of cabinet doors slamming, forklift impacts on adjacent structures, and hydraulic press cycling.
• EMC Immunity: EN 61000-6-2 industrial immunity class. Tested against conducted and radiated RF, ESD (IEC 61000-4-2 Level 3), electrical fast transient (IEC 61000-4-4 Level 3), and surge (IEC 61000-4-5 Level 3). In practice, this means the module holds its PROFIBUS link in the presence of VFD switching noise, arc welding interference, and inductive load switching — the three most common EMC killers in factory environments.
• Thermal Cycling: Rated 0–60 °C operating. In real-world cabinet installations with poor ventilation, internal temperatures routinely reach 50–55 °C. The IM151-1 has a documented MTBF exceeding 500,000 hours at 40 °C ambient — field failure rates are low; when modules do fail, it is almost always due to external causes (overvoltage on the 24 V rail, contamination ingress, or physical connector damage).
• Humidity: 10–95 % RH non-condensing. For installations near cooling towers or in coastal environments, ensure the enclosure maintains positive pressure or use desiccant packs to prevent condensation on the backplane bus contacts.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary industrial export hubs with direct DHL Express and FedEx International Priority gateway access. Here is exactly what happens after you confirm your order:

• Order Confirmation (Day 0): Payment confirmed before 14:00 CST → same-day pick, pack, and ESD-safe packaging. Export commercial invoice, packing list, and certificate of origin prepared in parallel.
• Customs Clearance (Day 0–1): We pre-classify the 6ES7151-1AA06-0AB0 under HS code 8537.10 (boards, panels, consoles for electric control). Export licence not required for this product. Shipment handed to DHL/FedEx bonded courier by 18:00 CST.
• Transit Times (DHL Express from Xiamen):
  • Southeast Asia (SG, MY, TH, VN): 1–2 business days
  • Middle East (AE, SA, QA): 2–3 business days
  • Europe (DE, NL, PL, TR): 3–4 business days
  • North America (US, CA, MX): 3–5 business days
  • South America (BR, CL, CO): 5–7 business days
  • Australia / New Zealand: 3–4 business days
• Tracking: AWB number sent to your email within 2 hours of handover. Real-time DHL/FedEx tracking link included.
• Import Duties: Shipped DAP (Delivered At Place) as standard. DDP (Duties & Taxes Paid) available on request — ask at time of order. We have experience clearing industrial automation components into EU, US, and GCC customs without delays.
• Packaging: Anti-static bag → foam-lined inner box → double-wall export carton. Drop-tested to ISTA 2A. The module arrives in the same condition it left our shelf.

If your line cannot wait for standard express transit, contact us directly — we can arrange same-day courier handover and priority routing for critical plant shutdowns.
