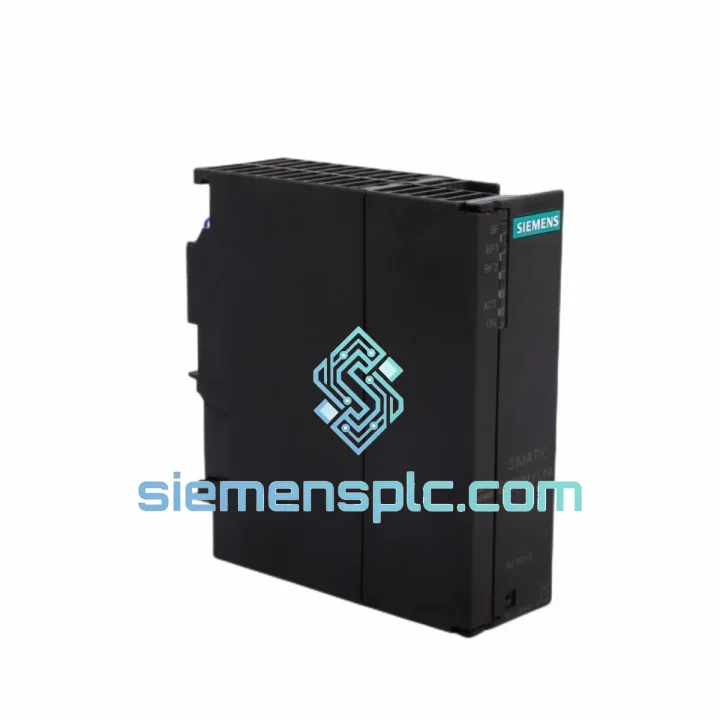

Siemens 6ES7153-2BA02-0XB0 PLC Interface Module – ET 200M IM153-2

Siemens 6ES7153-2BA02-0XB0 IM153-2 High Feature — PROFIBUS-DP Interface Module for ET 200M Distributed I/O

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

The 6ES7153-2BA02-0XB0 is the IM153-2 High Feature interface module for the Siemens ET 200M distributed I/O system. It functions as the PROFIBUS-DP slave head station, establishing the communication link between a remote signal module rack and the upstream DP master — typically a SIMATIC S7-300, S7-400, or S7-400H CPU. Unlike the standard IM153-1, this High Feature variant integrates active redundancy arbitration, isochronous mode support, and channel-level diagnostic interrupt generation, making it the specified choice for high-availability process control and motion-synchronized I/O applications.

In a distributed control architecture, the IM153-2 eliminates the need to route individual field signal cables back to the central PLC cabinet. Instead, up to eight signal modules (SMs) — digital input, digital output, analog input, analog output, or function modules — are mounted on a local ET 200M rack. The IM153-2 aggregates all I/O data into a single PROFIBUS-DP frame and exchanges it with the master at baud rates from 9.6 kbps up to 12 Mbps. This topology reduces wiring cost, lowers cabinet footprint, and concentrates field diagnostics at the rack level rather than distributing fault isolation across hundreds of individual cable runs.

The module’s active redundancy capability is its most operationally significant differentiator. When paired with a Y-Link coupler and a redundant S7-400H master, two IM153-2 modules share a single ET 200M rack. The active module handles all DP traffic; the standby module continuously monitors bus state and rack health. On detection of a communication fault or module failure, switchover completes in under 10 ms — within a single DP cycle at 12 Mbps — without interrupting the process image update in the CPU. This behavior is deterministic and does not depend on application-layer timeout logic.

Isochronous mode (equidistant DP cycle) allows the IM153-2 to synchronize I/O updates to a fixed, jitter-free cycle defined by the DP master. At 12 Mbps with a 1 ms equidistant cycle, input-to-output latency across the PROFIBUS segment is held below 1 µs of cycle-to-cycle jitter. This is a hardware-enforced timing guarantee, not a software scheduling approximation, and it is the prerequisite for deploying the ET 200M as a position feedback or torque command interface in servo drive applications.

Deployed across automotive transfer lines, chemical batch reactors, water treatment pump stations, pharmaceutical fill-and-finish suites, and power generation switchgear rooms, the 6ES7153-2BA02-0XB0 has accumulated a field history exceeding two decades. Its MTBF rating exceeds 500,000 hours under rated operating conditions, and its IP20 enclosure with conformal-coated PCB variants tolerates the condensation and particulate exposure common in food processing and outdoor-rated enclosures.

Technical Parameters

Hardware Logical Analysis

The IM153-2’s internal architecture is built around a dual-port RAM (DPRAM) arbitration scheme. The PROFIBUS-DP ASIC — a Siemens SPC3 or equivalent second-generation DP controller — manages the physical layer framing, token passing, and slave address decoding entirely in hardware, offloading the module’s embedded microcontroller from real-time bus timing obligations. The microcontroller handles only configuration management, diagnostic assembly, and redundancy state machine execution. This separation of concerns is what allows the module to maintain deterministic DP response times independent of diagnostic load.

The backplane interface uses a proprietary Siemens P-bus (peripheral bus) protocol operating at 12 Mbps over the ET 200M rack connector. Each signal module slot is individually addressable; the IM153-2 polls each SM’s process image area in a fixed scan sequence and assembles the complete station I/O image before the next DP cycle begins. The scan sequence is hardware-scheduled, not software-polled, which eliminates the variable latency introduced by interrupt-driven I/O architectures.

EMC hardening is implemented at three levels. First, the PROFIBUS connector interface includes integrated RS-485 transceiver protection with ±15 kV ESD clamping and 600 W surge suppression on the data lines. Second, the PCB layout enforces a split ground plane between the DP bus circuitry and the backplane logic, with a single-point ground tie at the chassis connection — a standard technique for breaking common-mode noise loops in mixed-signal industrial boards. Third, the module housing is a zinc die-cast frame with continuous EMC gasket contact to the rack chassis, providing >40 dB shielding effectiveness from 30 MHz to 1 GHz per IEC 61000-4-3 test conditions.

The redundancy arbitration logic in the High Feature variant implements a hardware watchdog cross-check between the active and standby IM153-2 modules via the Y-Link coupler’s arbitration bus. Each module independently monitors the DP bus for frame errors, CRC failures, and response timeout events. The switchover decision is made by the Y-Link hardware, not by the CPU application program, ensuring that the switchover latency is bounded by the DP cycle time rather than by PLC scan time or OB interrupt latency.

System Integration Benefits

• Deterministic I/O update latency: Isochronous mode pins the I/O update to the DP master’s equidistant cycle, delivering a hardware-guaranteed input-to-output latency that is independent of CPU scan time variation — essential for closed-loop position control over PROFIBUS.
• Sub-10 ms redundancy switchover: Active DP redundancy with Y-Link completes master-to-standby switchover within one DP cycle at 12 Mbps, maintaining process continuity without application-layer intervention or CPU restart.
• Channel-level diagnostic transparency: The module generates OB82 diagnostic interrupts with channel-granularity fault data — wire break, short circuit, overrange, underrange — allowing the PLC program to isolate faults to individual field terminals without manual rack inspection.
• Hot-swap signal module replacement: Signal modules can be extracted and reinserted under power without interrupting DP communication or corrupting the process image of adjacent slots, reducing planned maintenance windows to near zero.
• Seamless TIA Portal and STEP 7 integration: The module is natively catalogued in both engineering environments; hardware configuration, GSD import, and diagnostic monitoring require no third-party tools or custom scripting.
• Scalable I/O density: Up to eight SM slots per station, supporting mixed digital and analog I/O in a single rack — reducing the number of DP slave addresses consumed per field junction box and simplifying network topology planning.
• SIL 2 system-level compatibility: When hosting Siemens F-modules (e.g., SM 326 F-DI 24×DC 24V) in a standard ET 200M rack, the IM153-2 participates in PROFIsafe-compliant safety architectures without requiring a dedicated F-rated head station.
• Extended segment reach: At 93.75 kbps, a single PROFIBUS segment extends to 1,200 m; RS-485 repeaters (6ES7972-0AA02-0XA0) allow multi-segment topologies covering plant-wide distances, with the IM153-2 operating transparently across segment boundaries.

Quality Assurance & Global Logistics

Every 6ES7153-2BA02-0XB0 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and carries full Siemens factory traceability. Before dispatch from our Xiamen, China facility, each module undergoes a structured pre-shipment inspection protocol:

• Visual and mechanical inspection: Housing integrity, connector pin condition, label and firmware version verification against Siemens product documentation.
• Functional power-on test: PROFIBUS-DP communication link established on a live test rack; all diagnostic LEDs (SF, BF, ON, MAINT) confirmed against expected state for a healthy slave.
• Authenticity verification: Serial number and date code cross-referenced against Siemens product traceability records where accessible; counterfeit screening per IEC 62239 supply chain assurance guidelines.
• ESD-safe packaging: Anti-static shielding bag, closed-cell foam insert, and double-wall export carton rated for air and sea freight vibration profiles per ISTA 2A.

Shipments originate from Xiamen, China, with access to direct air freight lanes to Frankfurt, Amsterdam, Chicago O’Hare, Dubai, Singapore Changi, and Sydney. Standard export documentation — commercial invoice, packing list, certificate of origin, and HS 8537.10 customs declaration — is prepared for every international order. Expedited DHL Express and FedEx International Priority options are available for urgent project requirements. Typical transit times: 3–5 business days to Europe and North America, 2–3 business days to Southeast Asia and the Middle East.

All units are covered by a 12-month warranty from the date of shipment, covering defects in materials and workmanship under rated operating conditions. Warranty claims are processed with advance replacement for stocked items, minimizing production downtime for our customers.
