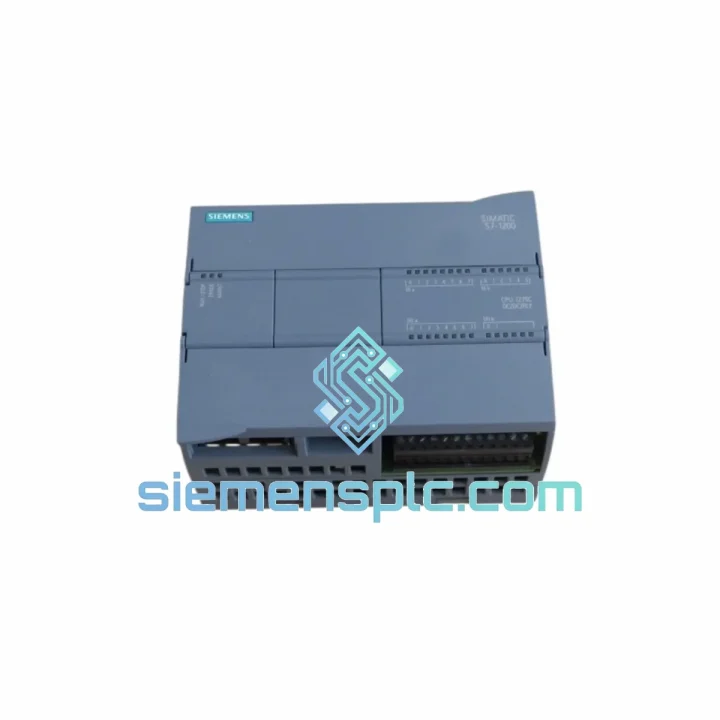

Siemens 6ES7215-1AG40-0XB0 CPU 1215C DC/DC/DC — Central Processing Unit in the S7-1200 Compact PLC Architecture

The 6ES7215-1AG40-0XB0 is the CPU 1215C variant within Siemens’ S7-1200 product family, positioned as the highest-density compact controller in the series. It integrates a 32-bit RISC-class processor with a deterministic scan cycle, 125 KB of work memory for program code, 1 MB of work memory for data objects, and 4 MB of load memory implemented in non-volatile flash. The onboard I/O configuration — 14 digital inputs (24 V DC, sink/source), 10 digital outputs (24 V DC, 0.5 A per point), 2 analog inputs (0–10 V, 10-bit resolution), and 2 analog outputs (0–20 mA, 11-bit resolution) — is directly accessible without any expansion carrier, reducing panel footprint and wiring complexity in space-constrained enclosures.

Two independent PROFINET ports with integrated 2-port switch functionality allow the CPU to participate in linear, star, or ring topologies without an external managed switch. The Media Redundancy Protocol (MRP) client capability enables sub-200 ms network recovery in ring configurations, a requirement in continuous-process applications where controller isolation is not acceptable. The CPU supports up to 16 simultaneous PROFINET IO device connections and 8 open user communication (OUC) connections via TCP/IP, UDP, and ISO-on-TCP transport layers.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Architecture: The CPU 1215C communicates with signal modules (SM) and communication modules (CM) via a proprietary high-speed backplane bus operating at 12 Mbit/s. This bus uses a time-division multiplexing scheme that guarantees deterministic data exchange between the CPU and up to 8 expansion modules per rack, with a worst-case latency contribution of under 1 ms per module slot under full I/O load. The bus arbitration logic is embedded in the CPU’s ASIC, eliminating the need for external bus controllers and reducing single-point failure exposure.

Galvanic Isolation and EMC Design: All 14 digital inputs are optically isolated from the CPU logic plane using high-speed optocouplers with a minimum isolation voltage of 500 V AC. The input filter time is software-configurable from 0.1 ms to 20 ms per channel group, allowing the engineer to trade off noise immunity against response speed depending on field device characteristics. The transistor outputs incorporate flyback suppression diodes on each channel to clamp inductive load transients, protecting the output driver stage from voltage spikes generated by solenoid valves and relay coils.

High-Speed Counter Logic: The six onboard HSC channels are implemented in dedicated hardware counter registers, decoupled from the main CPU scan cycle. Each HSC can operate in single-phase counting, two-phase (A/B quadrature) counting, or frequency measurement mode. The maximum input frequency of 1 MHz in single-phase mode is sustained without software intervention, making the CPU 1215C suitable for encoder feedback loops in servo-adjacent positioning applications where the motion controller is external but position data must be logged or compared in the PLC.

Pulse Train Output Timing Precision: The four PTO channels generate pulse trains with a hardware-timed period resolution of 1 µs, independent of the CPU scan cycle jitter. This is achieved through a dedicated timer peripheral that operates asynchronously to the main program execution engine. The PWM duty cycle is adjustable in 0.1% increments, enabling proportional control of variable-speed drives or proportional valves without an external signal conditioner.

Retentive Memory Management: The 10 KB retentive data block is backed by a supercapacitor with a hold-up time of approximately 10 days at 25 °C after power loss. This eliminates the need for a battery in most applications, reducing maintenance overhead. Critical process variables — setpoints, recipe parameters, production counters — stored in retentive DB areas survive both controlled shutdowns and unplanned power interruptions without data corruption.

System Integration Benefits

• Deterministic Scan Cycle: The CPU executes OB1 (main program) with a minimum cycle time of 1 ms, and the watchdog timer is configurable from 150 ms to 6,000 ms, allowing the engineer to define acceptable cycle overrun thresholds without forcing a CPU STOP state during transient load spikes.
• Dual PROFINET Port Topology Flexibility: The integrated 2-port switch allows daisy-chain wiring of PROFINET devices without external switches, reducing cabinet hardware count and simplifying cable routing in distributed I/O architectures.
• Integrated Motion Control: The CPU 1215C supports up to 4 PTO axes via the PLCopen Motion Control function blocks (MC_Power, MC_MoveAbsolute, MC_MoveRelative, MC_Home), enabling basic single-axis positioning without a dedicated motion controller for applications with moderate dynamic requirements.
• Diagnostic Transparency via STEP 7 TIA Portal: The CPU exposes a structured diagnostic buffer with up to 50 entries, each timestamped to the real-time clock. Diagnostic events — I/O module faults, communication timeouts, program errors — are accessible online without interrupting program execution, reducing mean time to diagnose (MTTD) during commissioning and production.
• Scalable Communication Stack: Open User Communication (OUC) allows the CPU to act as a TCP/IP client or server, enabling direct data exchange with SCADA systems, MES platforms, and third-party devices using standard socket-level programming within the TIA Portal environment, without requiring a dedicated communication processor.
• Signal Board Expansion Without Rack Extension: A single Signal Board (SB) can be inserted directly into the CPU front panel to add 1 analog output, 1 analog input, or 2 digital I/O points, extending onboard I/O capacity without consuming a signal module slot — preserving expansion capacity for larger I/O blocks.
• Web Server for Remote Monitoring: The integrated web server (HTTP/HTTPS) provides read access to CPU diagnostics, variable tables, and data block values from any standard browser on the PROFINET network, without requiring TIA Portal or a dedicated HMI panel for basic status monitoring tasks.
• TIA Portal V16+ Compatibility and Version Management: The CPU 1215C firmware V4.x is fully supported under TIA Portal V16 and later, with project version management allowing controlled firmware upgrades via SIMATIC Automation Tool without manual intervention at the panel, reducing downtime during fleet-wide firmware standardization campaigns.

Quality Assurance & Global Logistics

Every 6ES7215-1AG40-0XB0 unit supplied by siemensplc.com is sourced directly from Siemens AG authorized distribution channels. Each unit carries the original Siemens factory label, holographic authenticity seal, and traceable batch code. Prior to dispatch, units undergo a functional verification procedure: supply voltage tolerance check (20.4–28.8 V DC), digital I/O continuity test, PROFINET port link negotiation confirmation, and firmware version verification against the current Siemens release matrix.

Logistics operations are based in Xiamen, China — a major international freight hub with direct air cargo connections to Frankfurt, Amsterdam, Dubai, Los Angeles, Singapore, and Tokyo. Standard international shipments are dispatched within 1–3 business days of order confirmation. Express air freight options (DHL Express, FedEx International Priority, UPS Worldwide Express) are available for time-critical procurement requirements, with typical transit times of 3–5 business days to Europe and North America. All shipments include commercial invoice, packing list, and certificate of origin documentation to facilitate customs clearance. Export compliance is maintained in accordance with EU dual-use regulations and applicable destination-country import requirements.

A 12-month warranty covers manufacturing defects under normal operating conditions as defined by IEC 61131-2. Warranty claims are processed with a target response time of 2 business days, and replacement units are dispatched from Xiamen stock upon claim approval.
