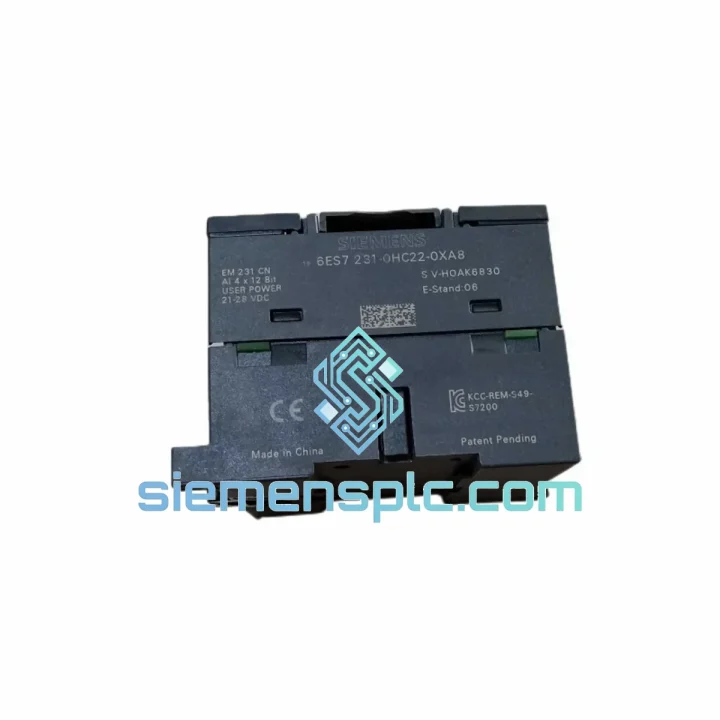

Siemens 6ES7231-0HC22-0XA8 PLC Analog Input Module – SIMATIC S7-200 SMART

Siemens 6ES7231-0HC22-0XA8 — Analog Signal Acquisition Architecture for SIMATIC S7-200 SMART Control Systems

In closed-loop process control, the integrity of analog signal acquisition is not a peripheral concern — it is the foundation upon which every control decision rests. The Siemens 6ES7231-0HC22-0XA8 is a four-channel analog input expansion module engineered for the SIMATIC S7-200 SMART compact PLC platform. Its role within the control architecture is unambiguous: convert real-world physical variables — temperature, pressure, flow, level — into digitized process values that the CPU can act upon with deterministic precision. This module is not a generic ADC board; it is a purpose-designed industrial acquisition front-end that conforms to IEC 61131-2 environmental and electrical standards, built to sustain continuous operation across the full lifecycle of a production system.

The S7-200 SMART platform occupies a well-established position in the compact PLC segment, deployed extensively across Asia-Pacific, Eastern Europe, and Latin America in applications ranging from water treatment and HVAC to packaging machinery and chemical batch processing. Within this ecosystem, the 6ES7231-0HC22-0XA8 addresses the most common expansion requirement: adding analog measurement capability to a CPU that ships with digital I/O as standard. Understanding the hardware logic behind this module — how it conditions signals, isolates channels, and transfers data to the CPU — is essential for engineers specifying it into a new system or replacing a failed unit under production pressure.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7231-0HC22-0XA8 implements a multiplexed successive-approximation register (SAR) ADC architecture. A single high-linearity ADC core services all four input channels sequentially via an analog multiplexer, which eliminates the cost and calibration complexity of four independent converters while maintaining a total scan cycle short enough for the majority of process control applications. At 625 µs per channel, the complete four-channel acquisition cycle completes in approximately 2.5 ms — well within the response bandwidth of temperature, pressure, and flow sensors operating on 4–20 mA or 0–10 V standards.

Signal Conditioning Front-End: Each channel input passes through a passive RC low-pass filter before reaching the multiplexer. This anti-aliasing stage attenuates high-frequency noise components — particularly switching noise from variable-frequency drives (VFDs) and power converters operating in the same cabinet — that would otherwise alias into the measurement band and corrupt process values. The filter cutoff is set conservatively to preserve signal fidelity for sensors with bandwidths up to several hundred Hz, which covers the full range of standard process instrumentation.

EMC Design and Common-Mode Rejection: The module’s input stage is designed to tolerate common-mode voltages up to ±12 V DC relative to the module’s signal ground. This is a practical necessity in industrial environments where sensor cable shields may be grounded at both ends, creating ground loops that impose common-mode offsets on the signal lines. The differential input architecture rejects these offsets, preserving measurement accuracy without requiring the field wiring to be redesigned. The module’s PCB layout follows Siemens’ internal EMC guidelines, with analog and digital ground planes separated and joined at a single star point to minimize digital switching noise coupling into the analog measurement path.

Bus Interface and Data Transfer: Communication with the S7-200 SMART CPU occurs over the proprietary expansion bus via the right-side ribbon cable connector. The bus operates at 5 V DC and transfers digitized channel data to the CPU’s I/O image table during each scan cycle. From the CPU’s perspective, the four analog input channels appear as four 16-bit words in the analog input area (AIW), accessible directly in the ladder logic program without any special function block or driver overhead. This transparent integration eliminates the latency and complexity associated with serial communication protocols (e.g., Modbus RTU) that would be required if using an external analog acquisition device.

Overcurrent and Overvoltage Protection: Current input channels include internal protection against wiring errors that apply voltage to a current input terminal. Voltage input channels are protected against transient overvoltage events consistent with IEC 61000-4-5 surge immunity requirements. These protections reduce the risk of module damage during commissioning — a period when wiring errors are statistically most likely — and during field maintenance when sensors are disconnected and reconnected under live conditions.

System Integration Benefits

• Zero-configuration bus recognition: The S7-200 SMART CPU automatically detects the 6ES7231-0HC22-0XA8 upon power-up and maps its channels to the analog input image table without manual address assignment, reducing commissioning time and eliminating address conflict errors.
• Deterministic scan-cycle integration: Analog values are refreshed within every CPU scan cycle, ensuring that PID control loops and alarm logic always operate on current process data rather than cached values from a previous cycle.
• Mixed I/O expansion without gateway hardware: The module can be combined with digital I/O expansion modules (EM DI/DO series) on the same expansion bus, allowing engineers to build mixed analog/digital I/O configurations without introducing communication gateways or protocol converters.
• STEP 7-Micro/WIN SMART diagnostics: The programming environment provides online monitoring of analog input values in engineering units, enabling real-time verification of sensor wiring and signal scaling during commissioning without external instrumentation.
• Scalable channel utilization: Unused channels do not consume CPU processing resources disproportionately; the module’s fixed scan cycle applies regardless of how many channels are actively used in the application program.
• Consistent signal scaling across firmware versions: The AIW data format (12-bit value mapped to a 16-bit word with defined scaling) has remained consistent across S7-200 SMART firmware generations, ensuring that application programs written for earlier CPU versions continue to function correctly when the CPU is upgraded.
• Low thermal dissipation in compact enclosures: With a bus current draw of ≤ 40 mA at 5 V (200 mW maximum), the module contributes negligible heat load to the control cabinet thermal budget — a relevant factor in sealed enclosures operating in high-ambient-temperature environments.
• Standardized wiring interface: The removable screw-terminal connector block uses the same pitch and terminal assignment convention as other S7-200 SMART EM modules, allowing maintenance technicians to replace a module without rewiring — the connector block transfers intact to the replacement unit.

Quality Assurance & Global Logistics

Every unit of the 6ES7231-0HC22-0XA8 supplied through siemensplc.com is sourced from verified supply chains with full traceability to authorized Siemens distribution channels. The industrial automation components market carries a documented risk of counterfeit and substandard parts, particularly for high-demand modules from established PLC families. Our procurement process addresses this risk through supplier qualification, documentation verification, and physical inspection of each incoming batch.

Inspection Protocol: Each module is examined for label authenticity (holographic security features, date code consistency, font and print quality), connector and housing condition, and packaging integrity. Units that do not pass visual inspection are quarantined and not offered for sale. For volume orders or critical applications, functional bench testing against known-good reference units can be arranged prior to shipment.

Customs Compliance — Xiamen Operations: All export shipments are processed through Xiamen Customs with accurate HS code classification (HS 8537.10 for programmable controllers and associated modules), complete commercial invoice documentation, and packing lists that satisfy the import requirements of major destination markets including the EU, USA, Southeast Asia, and the Middle East. Xiamen’s status as a designated Free Trade Zone port provides access to streamlined customs clearance procedures that reduce export processing time compared to inland logistics hubs.

Logistics Network: Xiamen Gaoqi International Airport and Xiamen Port provide direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and major ocean freight carriers. Standard express delivery to Western Europe and North America is 3–5 business days from shipment. Southeast Asian destinations typically receive within 2–3 business days. Full tracking information is provided at the time of dispatch. For large-volume orders, sea freight consolidation via Xiamen Port is available with competitive transit times to major global ports.

Payment Methods: We support T/T (telegraphic transfer), PayPal, Western Union, and major credit cards. Multi-currency invoicing is available in USD, EUR, CNY, and HKD. Proforma invoices are issued upon order confirmation for bank transfer processing.

Warranty Terms: A 12-month warranty from the date of shipment covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a target response time of 2 business days. Replacement units are dispatched upon confirmation of the defect; return shipping of the defective unit is coordinated by our logistics team.
