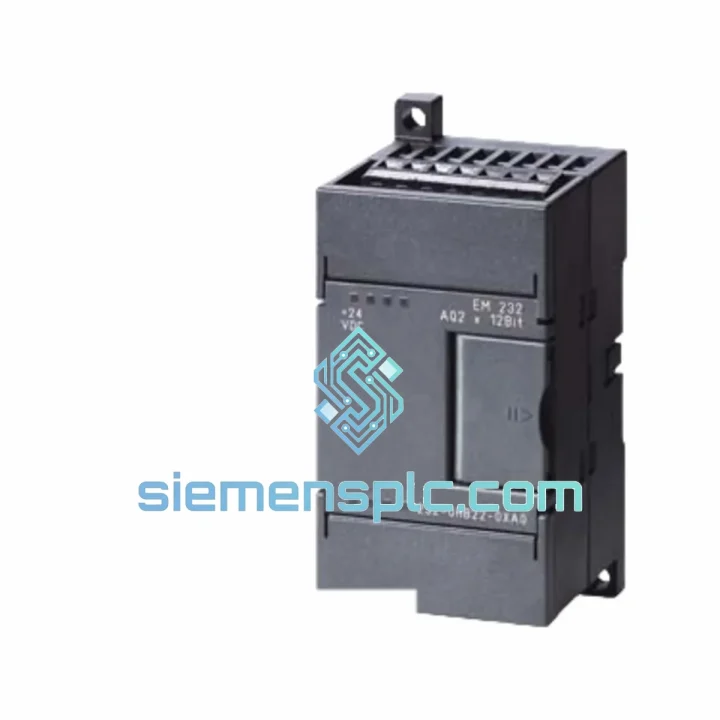

Siemens 6ES7232-0HB22-0XA0 PLC Analog Output Module – SIMATIC S7-200 EM232

Siemens 6ES7232-0HB22-0XA0 — Dual-Channel Analog Output Control for SIMATIC S7-200 Expansion Systems

The Siemens 6ES7232-0HB22-0XA0 is the EM232 two-channel analog output expansion module within the SIMATIC S7-200 compact PLC platform. Its primary function in a control loop is to translate the CPU’s digital process values into continuous electrical signals — either voltage or current — that drive field actuators with deterministic precision. In closed-loop architectures, this module occupies the output side of the PID chain: it receives the controller’s manipulated variable (MV) from the CPU’s AQW address space and converts it to a calibrated analog signal that commands proportional valves, variable-frequency drives, electro-pneumatic positioners, or current-to-pressure transducers. Without a stable, low-noise analog output stage, the entire feedback loop degrades — setpoint tracking deteriorates, process oscillation increases, and actuator wear accelerates. The 6ES7232-0HB22-0XA0 addresses this with a dedicated 12-bit DAC architecture per channel, galvanic isolation between the field side and the logic bus, and a compact 46 mm DIN-rail footprint that integrates directly into the S7-200 expansion chain.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7232-0HB22-0XA0 implements a two-stage signal chain per output channel. The CPU writes a 16-bit word to the AQW (Analog Output Word) register mapped to each channel. Internally, the module’s ASIC strips the sign bit and maps the remaining 12 significant bits (for voltage) or 11 bits (for current) to the DAC input register. The DAC itself is a successive-approximation type with an internal voltage reference, which eliminates the drift sensitivity associated with resistor-ladder architectures. The reference is temperature-compensated to maintain output accuracy across the full 0–55 °C operating range without user calibration intervention.

On the field side, the voltage output stage uses a rail-to-rail operational amplifier configured as a unity-gain buffer with a low-impedance output driver capable of sourcing into loads as low as 5 kΩ. The current output stage employs a Howland current pump topology, which maintains constant current delivery independent of load resistance variations up to 500 Ω — a critical characteristic in 4–20 mA loops where cable resistance and terminal block resistance can vary significantly across installations.

Electromagnetic compatibility is addressed at the hardware level. The module’s PCB layout separates the analog signal ground plane from the digital logic ground, with a single-point star connection at the module’s chassis reference. Ferrite beads are placed in series on the 24 V DC field supply input to suppress conducted high-frequency interference from the power rail. The expansion bus connector incorporates signal filtering on data lines to prevent backplane-coupled noise from reaching the DAC input. These measures allow the module to meet EN 61000-4-4 (electrical fast transient) and EN 61000-4-6 (conducted RF immunity) requirements without external filtering components in most industrial panel environments.

The module does not implement hardware output clamping beyond the DAC’s full-scale range. However, the S7-200 CPU’s AQW register accepts values from 0 to 32,000 (for unipolar ranges), and the firmware maps this linearly to the DAC’s full-scale output. Values written outside this range are clamped by the CPU firmware before reaching the module, preventing DAC saturation. On power-up or CPU STOP mode, the module holds its outputs at 0 V / 0 mA by default — a safe-state behavior that prevents unintended actuator movement during controller initialization or fault conditions.

System Integration Benefits

• Zero-configuration bus attachment: The module connects to the S7-200 CPU via the proprietary expansion bus connector on the right side of the CPU housing. No DIP switches, no address jumpers, and no manual I/O configuration are required — the CPU automatically detects the module type and assigns AQW addresses sequentially based on slot position.
• Independent per-channel signal type selection: Each of the two output channels can be independently configured for voltage or current output through the S7-200 STEP 7-Micro/WIN software. This allows a single module to simultaneously drive a VFD speed reference (0–10 V) on channel 0 and a control valve positioner (4–20 mA) on channel 1 without any hardware modification.
• Deterministic output update cycle: The module’s output registers are refreshed synchronously with the S7-200 CPU scan cycle. For a typical 10 ms scan time, the analog output is updated within one scan period of the AQW write instruction — providing predictable latency for time-sensitive control loops such as tension control or pressure regulation.
• Diagnostic transparency via CPU status: The S7-200 CPU’s special memory bits (SM flags) include module error indicators that reflect expansion bus communication faults. If the 6ES7232-0HB22-0XA0 loses bus contact or reports a hardware fault, the corresponding SM bit is set within one scan cycle, enabling the user program to execute a safe-state routine or trigger an alarm output without relying on external monitoring hardware.
• Compact cascade expansion: Up to seven expansion modules can be chained to a single S7-200 CPU (subject to bus current budget). The 6ES7232-0HB22-0XA0 draws only 40 mA from the 5 V bus, leaving substantial headroom for additional digital or analog I/O modules in the same expansion chain.
• Compatibility with standard PID function blocks: The STEP 7-Micro/WIN PID Wizard generates code that writes directly to AQW registers. The 6ES7232-0HB22-0XA0’s linear DAC transfer function ensures that the PID output scaling (0–32,000 integer range) maps cleanly to the physical output range without requiring custom scaling subroutines.
• Field wiring flexibility: The module’s removable screw-terminal connector accepts wire cross-sections from 0.5 mm² to 1.5 mm² (AWG 20–16), accommodating both shielded twisted-pair instrumentation cable and standard control cable. The terminal block can be removed for wiring without disturbing the module’s bus connection, reducing maintenance time during field replacement.
• Stable operation in mixed-signal panels: The module’s internal ground plane separation and bus filtering allow it to operate reliably in panels that also contain AC contactors, relay coils, and switching power supplies — common in retrofit and upgrade projects where the S7-200 is integrated into existing electrical infrastructure.

Quality Assurance & Global Logistics

Every Siemens 6ES7232-0HB22-0XA0 unit dispatched from our Xiamen, China facility is sourced through verified supply channels and subjected to a structured pre-shipment inspection protocol. Authenticity verification covers factory label integrity, holographic markings, and date code consistency against Siemens’ production records. Physical inspection checks connector pin geometry, housing seam alignment, and PCB condition through the module’s ventilation apertures. Where test equipment is available, output signal accuracy is verified across both voltage and current ranges using calibrated reference loads.

Units are packed in anti-static polyethylene bags, placed in foam-lined cardboard boxes rated for international air freight handling, and sealed with tamper-evident tape. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with Chinese customs regulations and the import requirements of the destination country. For customers in the EU, North America, Southeast Asia, and the Middle East, we have established freight routes with typical transit times of 3–7 business days via DHL Express, FedEx International Priority, or UPS Worldwide Express. For bulk orders, sea freight consolidation from Xiamen Port is available with competitive lead times. All shipments include full tracking from dispatch to delivery confirmation.

The 12-month warranty covers manufacturing defects and premature component failure under normal operating conditions. Warranty claims are processed with a replacement-first policy — a replacement unit is dispatched upon receipt of the defective module, minimizing downtime for the customer’s production environment.
