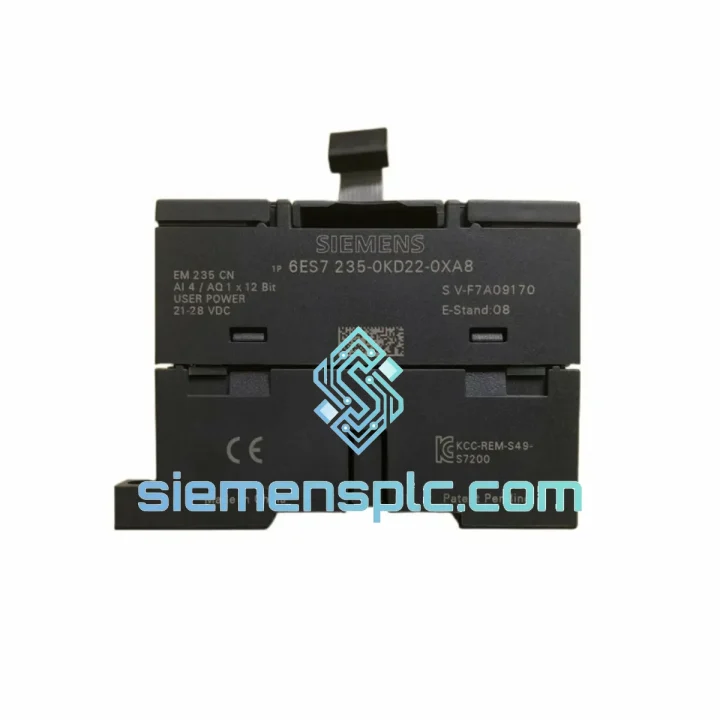

Siemens 6ES7235-0KD22-0XA8 Analog I/O Module – SIMATIC S7-200 EM 235

Siemens 6ES7235-0KD22-0XA8 — Four-Channel Analog Expansion Module for SIMATIC S7-200 Control Architectures

In closed-loop process control, the analog signal chain is the most latency-sensitive path between a physical variable and a corrective actuator output. The Siemens 6ES7235-0KD22-0XA8, designated EM 235 within the SIMATIC S7-200 expansion module family, occupies the analog front-end position in this chain. It acquires four independent analog input signals and simultaneously drives one analog output channel — all within a single 71.2 mm wide DIN-rail housing that draws power directly from the S7-200 CPU expansion bus at 24 V DC. This architecture eliminates the need for a dedicated field-side power supply for the module itself, reducing panel wiring complexity and potential ground-loop interference sources in noise-dense industrial environments.

The EM 235 is not a general-purpose data acquisition device. It is engineered specifically for deterministic scan-cycle integration with S7-200 CPUs — CPU 221, CPU 222, CPU 224, CPU 224XP, and CPU 226 — where analog process values are mapped directly into the CPU’s analog input image register (AIW) and output image register (AQW) without intermediate protocol overhead. Each CPU scan cycle, the analog values are refreshed automatically, giving the ladder or STL program immediate access to current field measurements without explicit read instructions. This tight hardware coupling is a fundamental architectural advantage over externally networked analog acquisition systems, where communication latency can introduce phase error in PID control loops.

Signal range configuration on the 6ES7235-0KD22-0XA8 is handled entirely in hardware via an eight-position DIP switch bank mounted on the module body. Supported input ranges include ±50 mV, ±100 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0–20 mA, and 4–20 mA. All four input channels share a single range setting — a deliberate design choice that simplifies field wiring verification and eliminates per-channel misconfiguration errors in multi-sensor installations. The 4–20 mA current loop mode is particularly significant for industrial deployments: current signals are inherently immune to resistive voltage drop across long cable runs, making the EM 235 suitable for sensor-to-panel distances exceeding 200 meters without signal degradation.

The analog-to-digital conversion core operates at 12-bit resolution across the full input span. In voltage mode at ±10 V, this yields a theoretical resolution of approximately 4.88 mV per LSB. In 4–20 mA current mode, the effective resolution across the 16 mA span is approximately 3.9 µA per LSB. The internal ADC employs successive approximation register (SAR) architecture, which provides a fixed conversion time independent of input amplitude — a property that ensures consistent scan-cycle timing behavior regardless of the measured process variable magnitude. The converted digital value is presented to the CPU as a 16-bit signed integer in the AIW register, with the 12 significant bits left-justified and the four LSBs set to zero, conforming to the standard S7-200 analog data format.

The single analog output channel on the 6ES7235-0KD22-0XA8 supports both ±10 V voltage output and 0–20 mA current output, selectable via the same DIP switch bank. The DAC resolution is also 12 bits, providing 4,096 discrete output steps. In voltage mode, this corresponds to a step size of approximately 4.88 mV — sufficient for driving proportional control valves, variable-frequency drive (VFD) speed references, or electropneumatic positioners where fine setpoint resolution is required. The output is sourced from an internal buffer amplifier capable of driving resistive loads down to 5 kΩ in voltage mode and up to 500 Ω in current mode, covering the majority of industrial actuator input impedance specifications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The optical isolation barrier in the 6ES7235-0KD22-0XA8 separates the field-side analog signal ground from the CPU logic ground at a rated isolation voltage of 500 V AC. This is not merely a safety feature — it is a functional EMC countermeasure. In industrial panels where variable-frequency drives, contactors, and solenoid valves share the same enclosure, ground potential differences of 5–50 V between sensor commons and PLC commons are common. Without galvanic isolation, these ground offsets appear as common-mode error voltages superimposed on the differential analog signal, directly corrupting the ADC input. The EM 235’s isolation stage eliminates this error source entirely, allowing the module to maintain specified accuracy even in electrically noisy environments.

The internal 250 Ω shunt resistor for current input mode is precision-matched and temperature-compensated. When a 4–20 mA transmitter is connected, the shunt converts the current signal to a 1–5 V differential voltage presented to the ADC input stage. The 4 mA live-zero convention provides an additional diagnostic function: a measured value below 3.6 mA (approximately 0 on the digital scale) indicates a broken wire or transmitter power failure, distinguishable from a genuine zero-process-value reading. This wire-break detection capability is inherent to the 4–20 mA architecture and requires no additional hardware or software configuration on the EM 235.

The DIP switch range selection mechanism enforces a hardware-level signal conditioning path. Selecting a narrower input range (e.g., ±50 mV) activates internal gain stages that amplify the input signal before ADC conversion, effectively increasing the measurement resolution for low-amplitude sensor outputs such as thermocouple signals (with external cold-junction compensation) or strain gauge bridge outputs. This gain-switching architecture means the 12-bit ADC core delivers different effective resolutions depending on the selected range — approximately 24 µV/LSB at ±50 mV versus 4.88 mV/LSB at ±10 V — without any change to the CPU-side data format or program logic.

The module’s expansion bus connector implements a proprietary Siemens parallel interface that transfers analog image data synchronously with the CPU scan cycle. The bus operates at 3.3 V logic levels with differential signaling on the data lines, providing inherent noise immunity against capacitively coupled interference from adjacent wiring. The physical connector is a keyed, latching design that prevents incorrect module orientation and ensures consistent contact resistance across the operating temperature range.

System Integration Benefits

• Zero-latency image register access: Analog values in AIW/AQW registers are updated every CPU scan cycle without explicit read/write instructions, eliminating communication overhead from the control loop timing budget.
• Hardware-enforced signal range consistency: DIP switch configuration prevents software-induced range mismatches; all four channels operate identically, simplifying multi-sensor commissioning and fault isolation.
• Wire-break diagnostics via 4–20 mA live-zero: Sub-3.6 mA readings are unambiguously distinguishable from valid process zero, enabling the CPU program to generate wire-fault alarms without additional discrete input wiring.
• Ground-loop immunity through optical isolation: 500 V AC isolation eliminates common-mode error from ground potential differences between sensor commons and PLC commons in shared-panel installations.
• Long-distance sensor compatibility: Current loop input mode supports cable runs exceeding 200 m without signal attenuation, extending the physical reach of the S7-200 control system to remote field instruments.
• Simultaneous input acquisition and output drive: The single-module form factor handles both analog feedback acquisition and analog setpoint output, reducing slot count and panel footprint compared to separate input and output modules.
• Deterministic conversion timing: SAR ADC architecture provides fixed ≤625 µs conversion time per channel, independent of input amplitude, ensuring predictable analog update rates for PID tuning calculations.
• Narrow-range high-resolution mode: ±50 mV range selection activates internal gain stages, delivering approximately 24 µV/LSB effective resolution for low-amplitude transducer signals without external signal conditioning amplifiers.
• Plug-in expansion without auxiliary power: Module draws all operating power from the S7-200 CPU bus (30 mA at 5 V, 60 mA at 24 V), eliminating the need for a dedicated field-side power supply and associated wiring.
• Standard S7-200 data format compatibility: 16-bit left-justified integer output in AIW registers is directly compatible with all S7-200 math, scaling (ENO/SCALE), and PID instruction blocks without data conversion routines.
