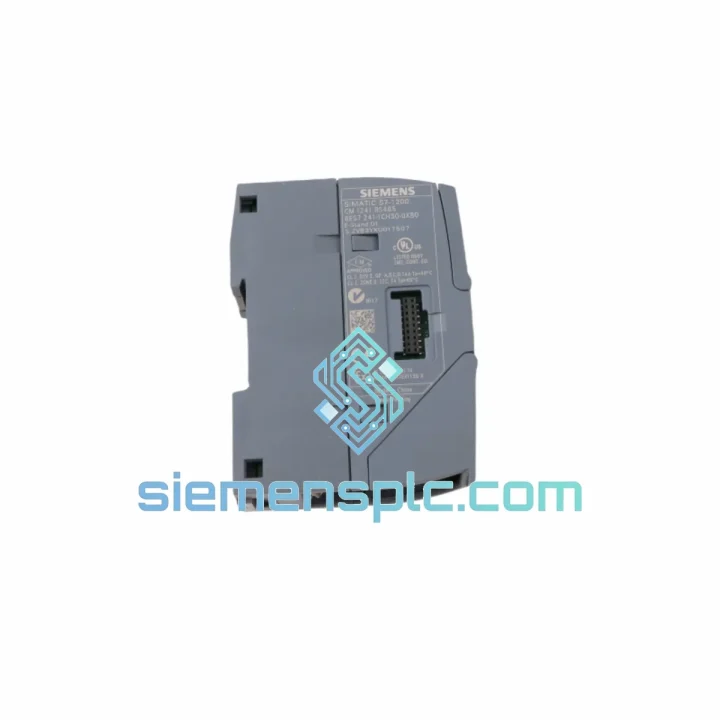

Siemens 6ES7241-1CH30-0XB0 Communication Board

6ES7241-1CH30-0XB0 CB 1241 RS485 — Ship Today, Restart Tomorrow

Your S7-1200 is down. The CB 1241 serial board has failed, and every hour offline is burning money — lost throughput, idle labor, delayed shipments. You don’t need a sales pitch. You need the part, verified, boxed, and moving toward your dock before end of business. The Siemens 6ES7241-1CH30-0XB0 is on our shelf in Xiamen right now. We’ve shipped this exact module to plants in Germany, Malaysia, Mexico, and Saudi Arabia on 24-hour turnarounds. This page exists to get you back online — fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years on the floor teaches you that most CB 1241 failures fall into three buckets. Here’s how to diagnose fast and replace clean.

Common Failure Signatures

The most frequent field failure is a silent RS-485 bus lockup — the CPU runs normally, the program executes, but Modbus RTU polling returns no response and the MB_COMM_LOAD instruction throws error code 16#8085 (port already in use) or 16#80A1 (timeout). Nine times out of ten this is the CB 1241 transceiver burned out by a bus short or incorrect termination. A secondary failure mode is the board physically unseating from the CPU front connector after vibration cycles — the CPU throws a hardware fault and the CB 1241 disappears from the device configuration in TIA Portal online view.

Pre-Replacement Checklist

Before you pull the old board: export the current TIA Portal project and note the exact port configuration — baud rate, parity, stop bits, and whether you’re running RS-485 or RS-232 mode. The replacement board has no onboard memory; all parameters live in the CPU program. If the CPU itself is intact, your configuration survives. If you’re replacing both CPU and CB 1241 simultaneously, you’ll need to reload from backup.

Physical Swap Procedure

Power down the S7-1200 rack completely — do not hot-swap the CB 1241. The board seats into the dedicated slot on the CPU front panel (left side, below the Ethernet port). Press firmly until you hear the retention clip engage. There are no DIP switches or address jumpers on this board — addressing is handled entirely in software via TIA Portal. After power-up, go online in TIA Portal and verify the CB 1241 appears under the CPU in the device view with a green status indicator. If it shows a yellow warning, check firmware compatibility: the CB 1241 requires CPU firmware V2.0 minimum, and TIA Portal must match the CPU firmware version for a clean download.

Post-Swap Configuration Verification

Run MB_COMM_LOAD once at startup (in OB100 or first scan logic) to reinitialize the port. Confirm the PORT parameter references the correct hardware identifier for the CB 1241 — in TIA Portal this is typically PORT = 269 for the communication board port, but verify against your hardware configuration. If you’re running USS protocol for drive control, reinitialize USS_PORT_SCAN as well. Monitor the MB_MASTER or MB_SLAVE done/error bits for the first 10 scan cycles to confirm clean communication before releasing the line.

Common Error Codes Quick Reference

16#8085 — Port already in use: MB_COMM_LOAD called more than once without proper interlock, or previous instance not completed. Add a done-bit interlock. 16#80A1 — Communication timeout: Check wiring polarity on RS-485 terminals (A+/B−), verify termination resistor (120 Ω) at both ends of the bus, confirm slave station address matches program. 16#80C0 — Hardware fault: Board not seated correctly or CPU firmware mismatch — reseat board and verify firmware version.

Reliability in Harsh Conditions

The CB 1241 is not a lab instrument. It was designed for the same environments where your process runs — and those environments are not kind to electronics. Siemens qualifies this board to IEC 61131-2 industrial standards, which means it has been subjected to sinusoidal vibration testing across 5–150 Hz frequency sweeps at 1g acceleration, simulating the continuous mechanical stress of pump stations, compressor rooms, and press lines. Shock resistance is validated to 15g / 11 ms half-sine pulses — the kind of impulse load you see when a nearby motor starter kicks in or a cabinet door slams.

Thermal cycling is where many third-party alternatives fail. The CB 1241 is rated for continuous operation at 60 °C ambient — not peak, continuous. The PCB substrate and component selection account for differential thermal expansion across thousands of heat cycles. In high-humidity environments (up to 95% RH non-condensing), the conformal coating on the board protects against moisture ingress and condensation-induced leakage currents that kill unprotected electronics. ATEX Zone 2 certification means it can be deployed in areas with occasional explosive atmosphere risk — a requirement in petrochemical and solvent-handling facilities that many communication boards cannot meet.

The 9-pin D-sub and terminal block connectors use gold-plated contacts rated for 500+ mating cycles, which matters in maintenance environments where boards are swapped during scheduled shutdowns. The retention clip mechanism on the CPU front connector is designed to maintain positive contact under vibration without requiring tools — critical when you’re doing a hot-zone swap in a confined panel.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us same-day handoff to DHL Express, FedEx International Priority, and UPS Worldwide Express for urgent shipments.

Standard process for urgent orders: inquiry received → stock confirmed → commercial invoice and packing list prepared → ESD-safe packaging with anti-static bag and foam insert → DHL/FedEx pickup same business day for orders confirmed before 15:00 CST. Transit times from Xiamen: Southeast Asia 1–2 days, Europe 3–5 days, North America 3–5 days, Middle East 3–4 days, Australia 3–4 days. All shipments include door-to-door tracking, commercial invoice with correct HS code (8537.10) for customs clearance, and a packing list with serial/batch number for your incoming inspection records.

For customers in regions with import duty sensitivity, we can provide a proforma invoice in advance for your finance team’s approval. We have shipped to 50+ countries and are familiar with customs documentation requirements for industrial automation components in the EU, GCC, ASEAN, and North American markets. If your plant requires a specific carrier account number for billing, we accommodate that on request.

For non-urgent orders, sea freight consolidation via Xiamen Port is available for bulk quantities — contact us for FCL/LCL pricing on larger procurement volumes.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
