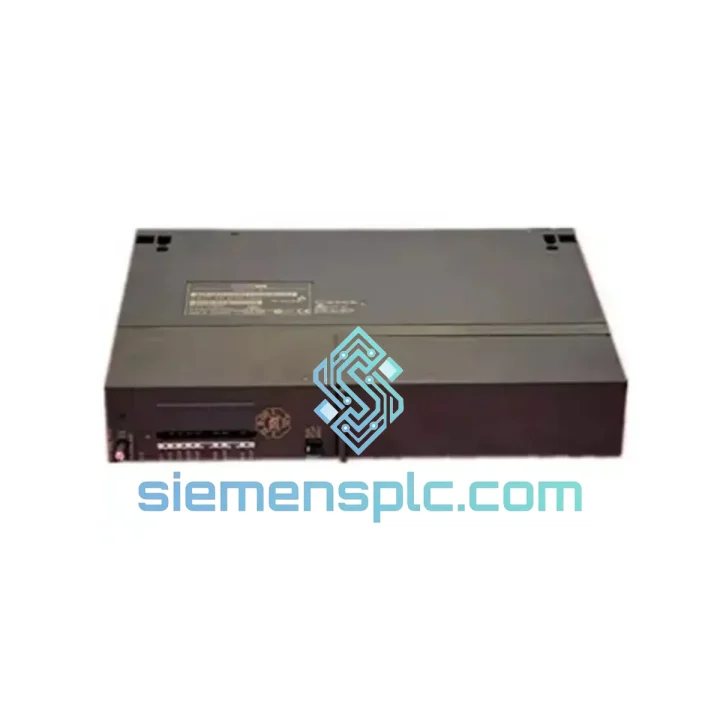

Siemens 6ES7416-3FR05-0AB0 PLC CPU Module

Siemens 6ES7416-3FR05-0AB0 CPU 416-3 PN/DP — Stop the Clock on Your Downtime

Every minute your S7-400 rack sits dark, the losses compound. A failed CPU 416-3 PN/DP doesn’t just halt one machine — it can freeze an entire production cell, a compressor train, or a substation protection loop. We stock the 6ES7416-3FR05-0AB0 precisely for this scenario: verified OEM units, pre-inspected, packed, and ready to leave Xiamen within 24 hours of your order confirmation. No lead-time negotiation. No factory allocation queue. Just a replacement module on its way to your site.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a CPU 416-3 PN/DP is not a plug-and-play operation. Miss one step and you will spend another two hours on-site. Here is what actually matters:

1. Back up the project before you touch anything. Use STEP 7 or TIA Portal to upload the current program from the running CPU if it is still partially responsive. If the CPU is completely dead, retrieve the project from the MMC — the card retains the program even without power. If no MMC is present and no offline backup exists, you are rebuilding from scratch.

2. Confirm firmware revision before ordering. The FR05 suffix designates firmware V5.0. A replacement unit with a different firmware revision (e.g., FR04 = V4.x) may reject your MMC or behave differently with certain SFCs. Confirm the replacement unit firmware matches or is forward-compatible before committing to the swap. We can confirm the exact firmware revision of our stock units on request.

3. PROFIBUS node address is software-defined, not hardware DIP. Unlike older S5 or third-party PLCs, the S7-400 CPU 416-3 PN/DP does not use physical address switches for DP master addressing. The DP master address is defined in HW Config. If the CPU was also acting as a DP slave in a multi-CPU rack, verify the slave address assignment in HW Config before download.

4. PROFINET device names must be reassigned after CPU swap. After installing the replacement CPU, PROFINET IO devices (ET 200M, drives, remote I/O) will not automatically reconnect. Use STEP 7 or TIA Portal to assign device names to each IO device via the Assign Device Name function. Skipping this step results in BF LED on all PN devices and zero I/O communication.

5. MPI address defaults to 2 on a new CPU. If your PG connects via MPI and the original CPU was at a non-default address, connect temporarily at address 2 to download the project, which will restore the correct MPI address from HW Config.

6. Common fault indicators:

• SF + BF LEDs both red: Hardware fault or bus fault. Check backplane seating, DP cable termination resistors, and PROFINET switch link status.
• STOP immediately after RUN command: Program download incomplete, MMC not recognized, or missing OBs (OB85, OB86 for PN/DP fault handling). Add missing OBs and re-download.
• FRCE LED active: Force table is active from a previous session. Clear all force entries before commissioning.
• OB10 not called / time interrupt fault: Real-time clock battery may be depleted on the replacement unit. Set the clock via STEP 7 online functions and verify battery status in module diagnostics.

7. MMC is not included — specify when ordering. The 6ES7416-3FR05-0AB0 requires a Siemens Micro Memory Card for program storage. Compatible cards range from 6ES7952-1AH00-0AA0 (64 KB) to 6ES7952-1KK00-0AA0 (4 MB). Third-party flash cards are not recognized by the CPU.

Reliability in Harsh Conditions

The S7-400 platform was not designed for climate-controlled server rooms. It was built for the floor — cement dust, hydraulic mist, vibration from presses, and ambient temperatures that swing 40 degrees between morning startup and afternoon peak load. The 6ES7416-3FR05-0AB0 meets IEC 61131-2 mechanical and climatic requirements including sinusoidal vibration testing at 10–57 Hz / 0.075 mm amplitude and shock resistance at 15 g / 11 ms half-sine pulse.

The conformal coating on the PCB provides additional protection against condensation and corrosive atmospheres. This is why the CPU carries ATEX Zone 2 and IECEx approval — it can be installed in areas with occasional explosive gas atmospheres without additional enclosure upgrades. In automotive body shops where weld spatter and high-frequency EMI are constant, the shielded backplane bus and filtered power input maintain signal integrity without external filtering modules.

Thermal management is fully passive — no fans, no moving parts inside the module. Heat dissipation relies on the rack natural convection and the PS 407 power supply regulated output. In installations where ambient temperature consistently exceeds 50 deg C, ensure the rack has at least 100 mm clearance above and below for airflow, and verify that total rack power consumption does not exceed the PS 407 rated output with thermal derating applied.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — one of China primary export hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. Emergency orders move fast from here.

• Order confirmed before 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority.
• Europe (Frankfurt, Rotterdam, Milan): 3–5 business days.
• North America (Chicago, Houston, Los Angeles): 4–6 business days.
• Southeast Asia (Singapore, Bangkok, Jakarta): 2–3 business days.
• Middle East (Dubai, Riyadh, Doha): 3–5 business days.

Every shipment includes a commercial invoice with accurate HS code classification (HS 8537.10), packing list, and certificate of origin. For customers in ASEAN countries, Form E (ASEAN-China FTA) is available on request to reduce import duties. Customs clearance support is available for first-time importers — contact us before placing the order if you need guidance on import documentation for your country.

For bulk orders exceeding 10 units or mixed-SKU BOM requirements, we coordinate LCL sea freight via Xiamen Port with typical transit of 18–25 days to European ports, significantly reducing per-unit freight cost while maintaining full documentation compliance.
