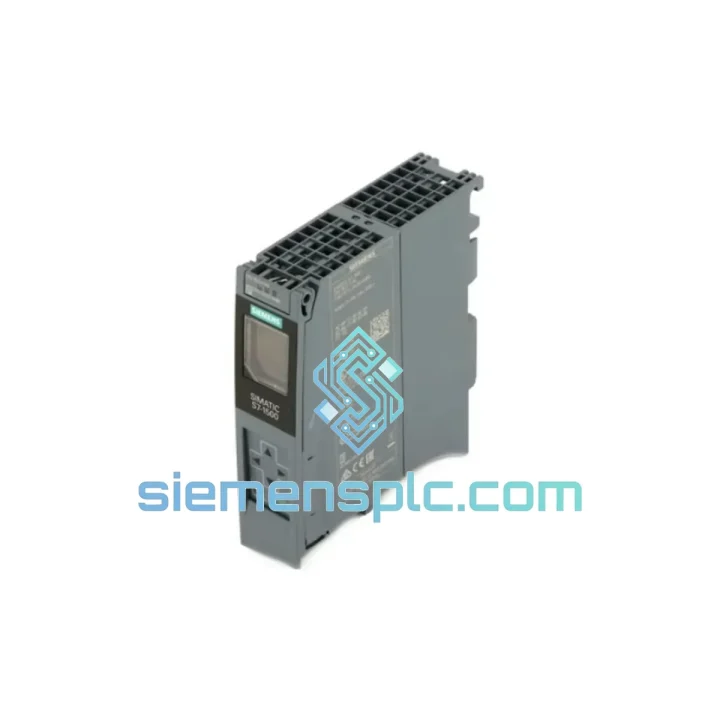

Siemens 6ES7513-1AL02-0AB0 CPU Module

6ES7513-1AL02-0AB0 CPU 1513-1 PN — Stop the Clock on Your Downtime

Every minute your S7-1500 rack sits dark, the losses compound. A failed CPU 1513-1 PN doesn’t just halt one machine — it can freeze an entire production cell, trigger cascading safety shutdowns, and put your delivery commitments at risk. We stock the Siemens 6ES7513-1AL02-0AB0 precisely for this moment. Same-day dispatch from Xiamen. DHL Express door-to-door. Your line back online before the next shift.

This is not a grey-market listing. Every unit we ship is 100% original Siemens, physically inspected, powered-on verified, and firmware-version confirmed before it leaves our warehouse. We’ve handled emergency replacements for plants across Southeast Asia, the Middle East, and Europe — we know what “urgent” actually means on a factory floor.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a CPU 1513-1 PN under pressure is where mistakes happen. Here’s what ten years of field work has taught me:

Step 1 — Back up before you touch anything. If the original CPU still powers on (even in STOP mode), use TIA Portal’s “Upload from device” to pull the current project. Don’t assume the engineering PC has the latest version — it often doesn’t. Save to a SIMATIC Memory Card as a secondary backup.

Step 2 — Note the PROFINET device names. The CPU 1513-1 PN stores PROFINET device names for all connected IO controllers. After replacement, if the new CPU doesn’t have the same project loaded, it will come up with a blank PROFINET configuration and your ET 200SP/MP distributed I/O will go into error state immediately. Load the project first, then set the IP address via TIA Portal’s “Accessible devices” function before going to RUN.

Step 3 — Firmware version matching. The 6ES7513-1AL02-0AB0 runs V2.x firmware. If your TIA Portal project was compiled against V1.8 or earlier, you will get a hardware mismatch warning. You have two options: update the hardware catalog in TIA Portal to match V2.9 and recompile, or downgrade the replacement CPU firmware using a SIMATIC Memory Card with the appropriate firmware package. Downgrading is faster in an emergency — we can advise on the correct firmware file.

Step 4 — Check the SIMATIC Memory Card slot. Unlike S7-300, the S7-1500 CPU does not require a memory card to run, but if the previous CPU had a memory card inserted with a startup program or recipe data, transfer that card to the new unit. The card is not CPU-locked — it will work in any 1500-series CPU.

Step 5 — Common fault codes after replacement. If you see BF (Bus Fault) LED flashing red after startup, the PROFINET topology is not yet established — give it 30–60 seconds for device name resolution. A solid red SF (System Fault) LED with no BF usually points to a project/firmware mismatch. Check the diagnostics buffer in TIA Portal immediately — it will tell you the exact error code and the module that triggered it.

Step 6 — 24 V DC supply quality. The CPU 1513-1 PN is sensitive to supply ripple. If the plant’s 24 V rail has been running a failing power supply, the new CPU may exhibit random restarts. Measure the supply under load before declaring the replacement successful.

Reliability in Harsh Conditions

The S7-1500 platform was engineered for environments that would kill consumer-grade electronics. The CPU 1513-1 PN carries an operating temperature range of 0 °C to +60 °C in horizontal mounting — and we’ve seen units running continuously at the upper end of that range in foundry control panels for years without incident. The conformal coating on the PCB provides resistance to condensation and airborne contaminants common in food processing and chemical plants.

Vibration resistance meets IEC 61131-2 requirements: 5–8.4 Hz at 3.5 mm amplitude, 8.4–150 Hz at 1 g. In practice, this means the module holds up on machine frames with significant mechanical vibration — press lines, compressors, and conveyor drive panels included. The DIN rail mounting clip is a positive-locking design; it does not work loose under vibration the way some third-party modules do.

EMC performance is certified to EN 61000-6-2 (industrial immunity) and EN 61000-6-4 (industrial emissions). The shielded backplane bus architecture means that even in panels with variable-frequency drives generating significant conducted interference, the CPU maintains communication integrity with its I/O modules. We test every unit we ship with a powered-on functional check — not just a visual inspection.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to international freight lanes. For urgent orders, we ship via DHL Express or FedEx International Priority, both of which offer door-to-door transit times of 2–5 business days to most destinations in Europe, Southeast Asia, the Middle East, and the Americas.

Order cutoff for same-day dispatch is 16:00 CST. Orders confirmed and paid before that threshold ship the same afternoon. We provide a tracking number within 2 hours of dispatch. For destinations with import duty complexity (EU, India, Brazil), we can prepare a commercial invoice with the correct HS code (8537.10) and declared value to facilitate smooth customs clearance. We have handled shipments to over 40 countries — customs documentation is not an afterthought here, it’s part of the service.

For large-volume or recurring procurement, we offer consolidated shipment scheduling and can work with your designated freight forwarder. Contact us to discuss blanket order arrangements and lead-time commitments.
