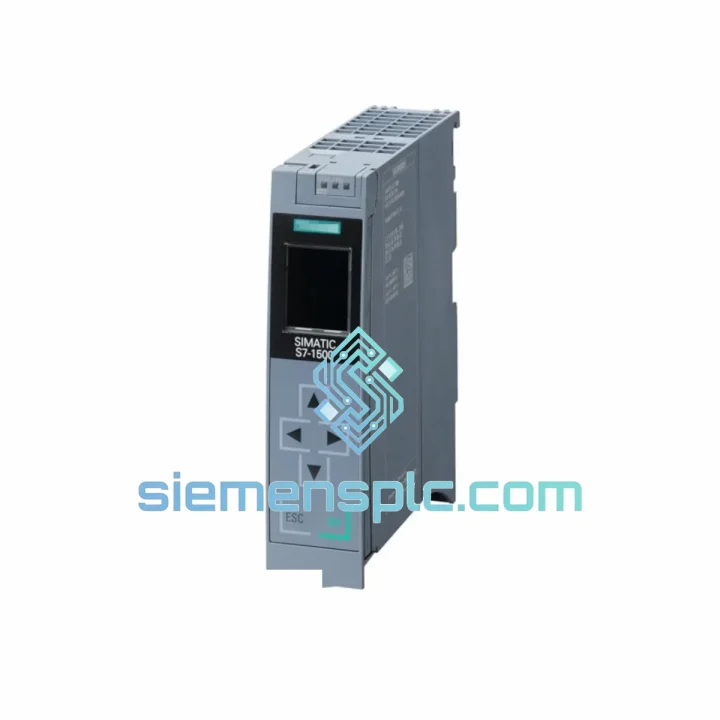

Siemens 6ES7513-1RL00-0AB0 PLC CPU Module – S7-1500R

Siemens 6ES7513-1RL00-0AB0 CPU 1513R-1PN — Synchronized Redundant Controller for Continuous-Process Automation

The CPU 1513R-1PN (MLFB: 6ES7513-1RL00-0AB0) is the entry-level redundant processing unit within the Siemens SIMATIC S7-1500R/H platform. It is engineered for industrial installations where process continuity is a non-negotiable operational parameter — power generation, oil & gas, water treatment, and chemical processing among them. Unlike conventional single-CPU architectures, the 1513R-1PN operates exclusively in a paired primary/backup configuration, with both processors executing an identical user program in lock-step synchronization. The R-sync link continuously mirrors the process image, data blocks, and active communication states between the two CPUs at sub-millisecond intervals. When a primary CPU fault is detected, the backup assumes full control within a single PLC scan cycle — all I/O states and active PROFINET connections are preserved without operator intervention and without a detectable process disturbance.

The 6ES7513-1RL00-0AB0 integrates two PROFINET IRT (Isochronous Real-Time) interfaces, an embedded OPC UA server, and a native web server — all without additional licensing overhead. Its 300 KB code memory and 1.5 MB data memory are sized for mid-complexity redundant applications, while the mandatory SIMATIC Memory Card (2 GB, e.g. 6ES7954-8LF03-0AA0) provides the load memory substrate. Bit processing speed is rated at 40 ns per instruction, placing it within the deterministic performance envelope required for closed-loop process control with cycle times in the low-millisecond range.

This unit is stocked and dispatched from Xiamen, China by siemensplc.com. All units are verified genuine Siemens hardware with original packaging, holographic labels, and MLFB barcode confirmation prior to shipment. A 12-month warranty is included on every unit.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Architecture and Scan-Cycle Determinism
The S7-1500 backplane operates on a proprietary high-speed serial bus with an effective throughput of approximately 400 Mbit/s. Unlike earlier S7-300/400 platforms that used a parallel backplane with fixed slot addressing, the S7-1500 bus employs a token-passing arbitration scheme that assigns bandwidth dynamically based on module priority class. For the 1513R-1PN in a redundant configuration, the bus controller allocates a dedicated time slot for R-sync data exchange within each scan cycle, ensuring that the process image transfer between primary and backup CPUs does not compete with I/O update traffic. This architectural separation is what enables the sub-millisecond synchronization window without extending the overall OB1 cycle time.

R-Sync Link and State Machine Replication
The redundancy synchronization mechanism in the 6ES7513-1RL00-0AB0 operates at the data block level, not merely at the process image level. This distinction is significant: the backup CPU maintains an exact replica of all retentive and non-retentive data blocks, timer values, counter states, and active communication channel parameters. The R-sync protocol uses a challenge-response handshake to detect link degradation before a full CPU fault occurs, allowing the system to enter a pre-failover state and alert the operator via diagnostic buffer entries. The fiber optic R-sync path (via CM 1542-5 or equivalent) supports distances up to 10 km, enabling geographically separated redundant installations for critical infrastructure applications.

EMC Design and Signal Integrity
The 1513R-1PN front panel and backplane connector assembly are designed to IEC 61000-4 series immunity levels. The CPU housing incorporates a continuous EMC shield gasket between the front cover and the module body, maintaining a low-impedance ground path across the full operating temperature range. Internal signal traces on the CPU board are routed with controlled impedance (50 Ω differential pairs for high-speed interfaces) and separated from power supply planes by a dedicated ground pour layer. This layout reduces common-mode noise coupling from the 24 V DC supply rail — a frequent source of spurious resets in industrial environments with variable-frequency drives or large inductive loads on the same power bus.

OPC UA Server Implementation
The integrated OPC UA server in the 6ES7513-1RL00-0AB0 exposes the CPU’s data model as a structured address space compliant with OPC UA Part 8 (Data Access) and Part 9 (Alarms and Conditions). The server supports up to 500 monitored items per session and handles up to 5 concurrent client sessions without measurable impact on PLC scan cycle time — a result of the server running on a dedicated communication processor core separate from the user program execution core. Security profiles supported include Basic256Sha256 and Aes128-Sha256-RsaOaep, satisfying IEC 62443-3-3 SR 1.1 through SR 1.3 requirements for authenticated and encrypted industrial communications.

System Integration Benefits

• Zero-Disturbance Failover: The primary-to-backup switchover completes within one OB1 scan cycle. Field devices connected via PROFINET IRT do not detect a communication interruption; the backup CPU inherits all active AR (Application Relationship) handles and resumes cyclic data exchange without re-establishing connections.
• Unified Engineering Environment: The entire redundant system — both CPUs, all distributed I/O, HMI, and drive interfaces — is configured, programmed, and commissioned within a single TIA Portal project. No separate redundancy configuration tool or license is required for standard S7-1500R deployments.
• Deterministic PROFINET IRT Scheduling: With a minimum send clock of 250 µs, the 1513R-1PN supports time-sensitive applications including coordinated multi-axis positioning and high-speed closed-loop pressure or flow control. IRT scheduling guarantees that each device’s data frame arrives within ±1 µs of its scheduled slot, independent of network load.
• Integrated Diagnostic Transparency: The CPU populates a structured diagnostic buffer with timestamped entries for every system event — module faults, R-sync link quality degradation, PROFINET topology changes, and user-defined program alarms. These entries are accessible via TIA Portal online diagnostics, the integrated web server, and OPC UA without requiring a dedicated diagnostic server.
• Scalable Redundancy Path: The 6ES7513-1RL00-0AB0 hardware supports both S7-1500R (rack-based, CPUs in adjacent racks) and S7-1500H (distributed, CPUs separated by up to 10 km via fiber) topologies. Migration from R to H architecture requires only a firmware update and CM module addition — the CPU hardware investment is preserved.
• IEC 62443 Cybersecurity Compliance: The CPU enforces role-based access control with up to 4 protection levels, TLS 1.3 for OPC UA and web server communications, and signed firmware updates. These controls satisfy the security requirements of IEC 62443-3-3 for industrial automation and control systems operating in critical infrastructure sectors.
• MRP Network Redundancy Complement: When deployed with PROFINET Media Redundancy Protocol (MRP) ring topology, the system achieves dual-layer redundancy — CPU-level failover and network-level path redundancy — with a combined recovery time under 200 ms for both fault types simultaneously.
• Seamless SIMATIC Ecosystem Integration: The 1513R-1PN is fully compatible with the complete S7-1500 I/O range (ET 200MP, ET 200SP, ET 200AL), SINAMICS drive systems via PROFIDRIVE, SIMATIC HMI panels, and WinCC SCADA. No protocol conversion or gateway hardware is required for any of these integrations.

Quality Assurance & Global Logistics

Every 6ES7513-1RL00-0AB0 unit dispatched by siemensplc.com is sourced as genuine Siemens hardware. Pre-shipment inspection covers visual integrity of the housing and connector pins, MLFB barcode verification against the Siemens product database, holographic label authentication, firmware version confirmation, and a functional power-on test. Units that do not pass all inspection criteria are quarantined and not offered for sale.

Shipments originate from our warehouse in Xiamen, China. Xiamen is a designated free-trade port with direct air freight connections to major logistics hubs in Europe, North America, Southeast Asia, and the Middle East. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every shipment. For project procurement requiring additional documentation (material test reports, certificates of conformity, or third-party inspection), these are available upon request at the quotation stage.

Packaging follows IEC 60068-2 transport and storage requirements: the CPU module is placed in an anti-static ESD bag, cushioned with closed-cell foam inserts, and packed in a double-wall corrugated carton rated for air and sea freight handling. Shipment tracking numbers are provided within 24 hours of dispatch. Typical transit times are 3–5 business days to Europe and North America via express air freight, and 5–8 business days via standard air freight. Sea freight consolidation is available for large-volume orders.

All stocked units carry a 12-month warranty from the dispatch date. Warranty coverage includes replacement or repair for hardware defects under normal operating conditions. Technical support for installation, TIA Portal configuration, and system commissioning is available via email and WhatsApp throughout the warranty period and beyond.
