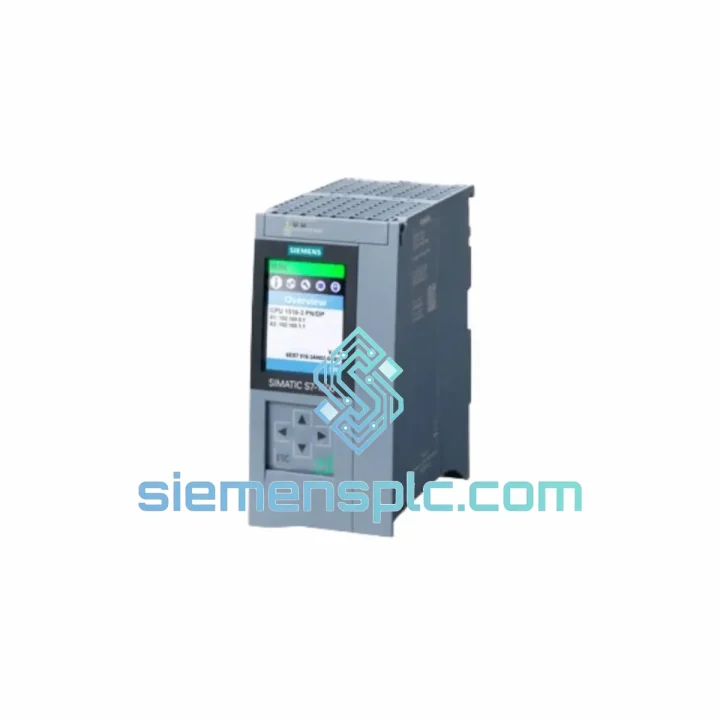

Siemens 6ES7516-3AN02-0AB0 PLC CPU Module – S7-1500 Series

Siemens 6ES7516-3AN02-0AB0 CPU 1516-3 PN/DP — Dual-Network Central Controller for High-Density S7-1500 Architectures

The 6ES7516-3AN02-0AB0 occupies the upper tier of the SIMATIC S7-1500 CPU family. Its defining characteristic is the simultaneous operation of two independent PROFINET interfaces alongside a full PROFIBUS DP master/slave port — a hardware arrangement that allows a single controller to anchor both a high-speed IRT motion network and a legacy field-device bus without any external communication processor. Program memory is fixed at 1 MB; data memory at 5 MB. Bit-level instruction cycle time is 10 ns, placing this unit in the same performance bracket as controllers typically reserved for coordinated multi-axis or high-throughput process applications.

The front-panel display provides on-device diagnostics — IP address, module state, error codes — without requiring a connected engineering station. This is operationally significant in distributed plant environments where a laptop connection to every cabinet is impractical during commissioning or fault-finding.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CPU 1516-3 PN/DP is built around a multi-core processing architecture where the application task scheduler and the communication stack execute on separate logical cores. This separation prevents communication load — particularly during high-frequency PROFINET IRT cycles — from consuming instruction-processing bandwidth. In practice, a 250 µs IRT send clock on the PROFINET interface does not degrade OB1 cycle time, which is a measurable advantage in coordinated servo applications where jitter tolerance is below ±1 µs.

The two PROFINET ports are not a simple internal switch. Each port connects to an independent ERTEC (Enhanced Real-Time Ethernet Controller) ASIC, allowing the CPU to segment its PROFINET topology into two physically isolated subnets. One subnet can carry IRT traffic for motion control; the other can carry RT traffic for standard I/O and HMI communication. This dual-ERTEC design eliminates the bandwidth contention that occurs when IRT and standard RT devices share a single switch fabric.

The PROFIBUS DP interface operates via a dedicated DP-ASIC with its own interrupt line to the main CPU. At 12 Mbit/s with 32 slaves, the DP cycle time is deterministic and independent of PROFINET load. The DP master can simultaneously operate in slave mode on the same physical port, enabling peer-to-peer data exchange between two S7-1500 stations without an additional CP module.

EMC hardening on this module follows IEC 61000-4 series requirements. The backplane connector uses a shielded, impedance-matched bus interface that maintains signal integrity at the 100 MHz backplane clock rate. Internal DC/DC converters are filtered with common-mode chokes and X/Y capacitors to suppress conducted emissions below CISPR 11 Class A limits. The housing is die-cast zinc with continuous EMC gaskets at all seams, providing a measured shielding effectiveness exceeding 40 dB at frequencies up to 1 GHz.

The integrated front display is driven by a low-power ARM Cortex-M microcontroller that operates independently of the main CPU. During a CPU STOP or fault condition, the display remains active and continues to report diagnostic information — a design choice that preserves visibility into module state even when the primary processor is halted for safety reasons.

System Integration Benefits

• Deterministic dual-network segmentation: Two independent PROFINET interfaces allow physical separation of IRT motion traffic from standard RT process I/O, eliminating cross-network jitter propagation and enabling sub-millisecond synchronization across distributed servo axes.
• Legacy field-device continuity: The onboard PROFIBUS DP master/slave port integrates existing DP field devices — drives, valve terminals, remote I/O — without requiring a separate CP 342-5 or CP 343-5 communication processor, reducing rack width and power budget.
• Transparent system diagnostics: The S7-1500 diagnostic architecture maps every module, channel, and network node into a structured diagnostic buffer accessible via TIA Portal, STEP 7, or OPC UA. Fault localization to the channel level is available without custom programming.
• OPC UA server embedded: The CPU hosts a native OPC UA server (DA and Alarm & Conditions) without additional licensing for basic data access. This enables direct integration with MES, SCADA, and cloud data pipelines using a standardized, vendor-neutral protocol.
• PROFISAFE over PROFINET: The CPU supports PROFIsafe profiles over both PROFINET interfaces, allowing F-Device integration (safety I/O, safety drives) within the same network topology as standard devices — no dedicated safety bus required.
• Scalable memory via SIMATIC Memory Card: Program and data memory can be extended using SD-based SIMATIC Memory Cards up to 32 GB, supporting large recipe databases, data logging, and firmware update packages stored directly on the CPU.
• Isochronous mode (ISOCH) support: Application OBs can be synchronized to the PROFINET IRT send clock, enabling cycle-accurate data acquisition and output at the network frame level — a prerequisite for closed-loop position control over PROFINET.
• Web server for remote monitoring: The integrated web server provides read access to process values, diagnostic data, and module status via standard HTTP/HTTPS without a SCADA license, reducing monitoring infrastructure cost for smaller installations.
• Time synchronization (NTP/SNTP): The CPU synchronizes its real-time clock to NTP servers over PROFINET, providing a common time base for event logging, alarm timestamping, and cross-station data correlation accurate to ±1 ms.
• Firmware update via TIA Portal or memory card: Firmware can be updated without removing the CPU from the rack, minimizing planned downtime during maintenance windows.

Quality Assurance & Global Logistics

Every 6ES7516-3AN02-0AB0 unit dispatched from our Xiamen facility is a factory-original Siemens component. Units are procured through documented supply channels with traceable lot records. Before packaging, each CPU undergoes a bench verification sequence: power-on self-test completion, PROFINET port link establishment, PROFIBUS DP initialization, and front-display functionality check. Serial numbers are recorded against each order for post-shipment traceability.

Packaging uses anti-static ESD bags rated to IEC 61340-5-1, placed inside foam-lined cartons with corner protection. For air freight, cartons are sealed with tamper-evident tape and accompanied by a commercial invoice, packing list, and certificate of origin. HS Code 8537.10 is declared on all export documents.

Shipping options from Xiamen, China:

• DHL / FedEx Express: 2–4 business days to most destinations in Europe, North America, Southeast Asia, and the Middle East.
• Standard Air Freight: 5–10 business days, available for cost-sensitive shipments.
• Sea Freight (LCL/FCL): Available for bulk orders exceeding 20 units; transit time 18–35 days depending on destination port.
• Export compliance: All shipments are declared with accurate HS codes and unit values. End-user documentation available upon request for dual-use compliance.

A 12-month functional warranty covers manufacturing defects under normal operating conditions. DOA claims are processed within 48 hours of receipt of fault documentation. Replacement units are dispatched from Xiamen stock.
